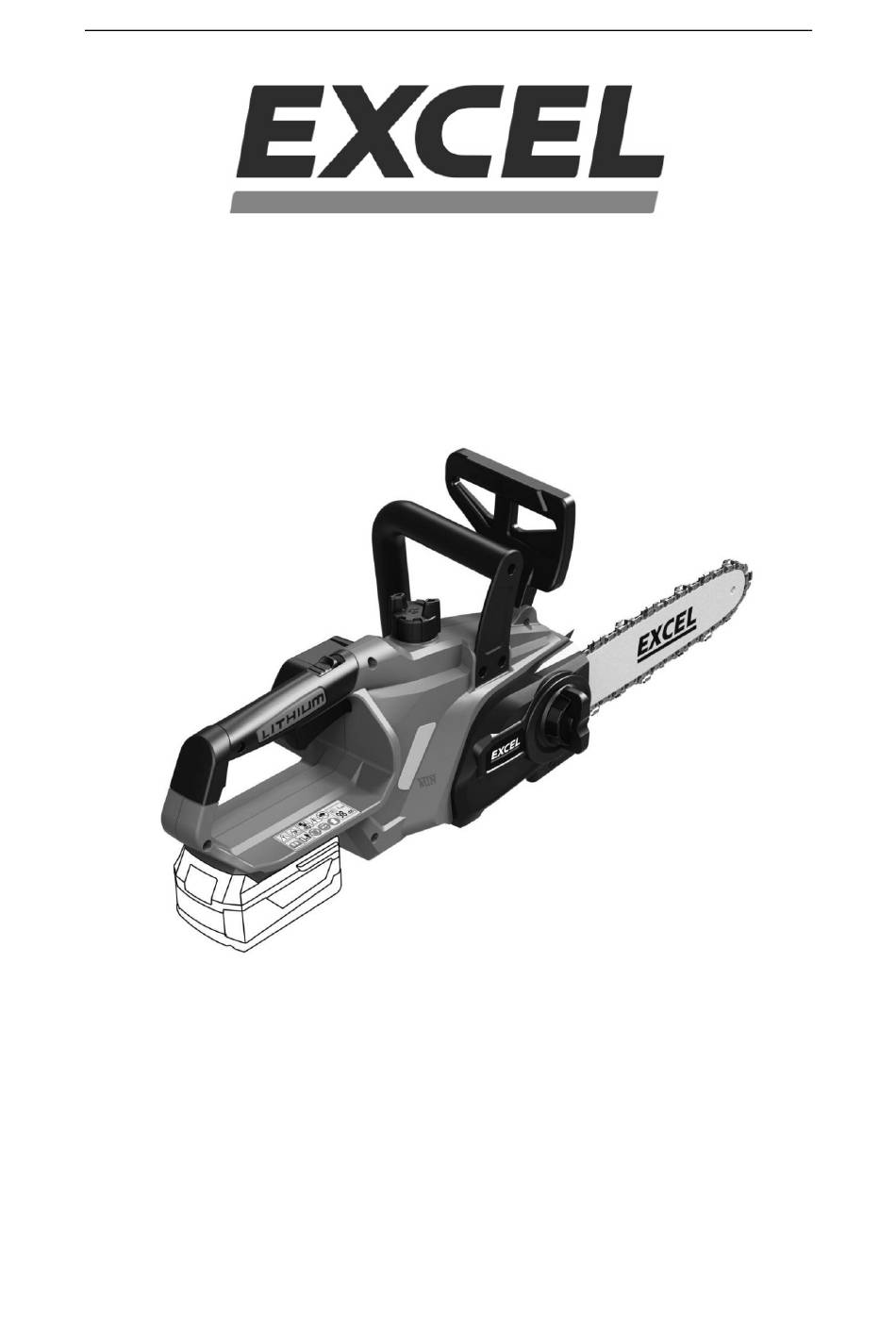

- Page 1 Original Instructions 18V Cordless Chainsaw 11783 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. - Page 3 Original Instructions Make sure the “chain brake” is disengaged. Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Take the replaceable battery from the appliance before any extension, cleaning and servicing works.
-
Page 4: General Safety Warnings
Original Instructions GENERAL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 Original Instructions b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 6 Original Instructions g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 7 Original Instructions instructions for future reference. Before using the battery charger, read and follow: - these operating instructions, - the currently valid site rules and the regulations for the prevention of accidents. This charger is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge.
- Page 8 Original Instructions b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
- Page 9 Original Instructions 1- Do not throw it away 2- Do not to burn it 3- Do not throw it in a river 4- Dispose of it in the designated collection containers (ask your retailer) ADDITIONAL SAFETY WARNINGS FOR BATTERY a. Do not connect the positive terminal and negative terminal of the battery to each other with any metal object (such as wire).
- Page 10 Original Instructions protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain. • Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personal injury. •...
- Page 11 Original Instructions to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw. • Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
-
Page 12: Important Safety
Original Instructions Important safety • How to read symbols WARNING Avoid bar nose contact. Beware of kick back. Do not attempt to hold saw with one hand. Recommended cutting procedure. Hold saw properly with both hands. INTENDED USE This device is specifically intended for sawing wood and felling trees in private areas, unsuitable for sawing plastic, masonry or construction materials that are not made of wood, intended for use in accordance with the descriptions and safety instructions in this operating manual. -
Page 13: Technical Specifications
Original Instructions TECHNICAL SPECIFICATIONS Product name 18V Cordless chain saw Model 11783 Rated voltage 18VDC Rated no load speed of motor. 3000/min Chain speed 5.6m/s Max cutting length 245mm Oil tank 220ml sound pressure level 86.2 dB(A) =3 dB(A) sound power level measured 95.0 dB(A) - Page 14 Original Instructions measured in accordance with a standardised test given in EN 60745-2-13:2009+A1:2010 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool.
-
Page 15: List Of Main Parts
Original Instructions LIST OF MAIN PARTS 1.Rear handle 2.ON/OFF switch 3.Saw chain 4.Guide bar 5.Hand guard/chain brake 6.Front handle 7.Chain tensioning wheel 8.Chain cover 9.Oil tank cap 10.Oil tank 11.Battery pack (excluded) 12.Ventilation openings 13.Housing 14.Bar cover... -
Page 16: Before Using The Equipment
Original Instructions Before using the equipment Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack from the tool when convenient for you and your job. -
Page 17: Chain Saw Assembly
Original Instructions WARNING: Always disconnect the battery pack from the tool before any assembly, adjustments or changing accessories. b. Insertion and removal of rechargeable battery (Fig.2) Depress the battery-release button located on the front of the battery pack to release battery pack. - Page 18 Original Instructions Installation: Installing the guide bar and saw chain WARNING! • The teeth of the saw chain are very sharp! Protective gloves must be worn during all work on the chain. Risk of injury! • An incorrectly installed saw chain leads to uncontrolled cutting behaviour by the device! When fitting chain, observe the prescribed running direction! •...
- Page 19 Original Instructions 4. (1)Put the the chain cover’s sign and the adjust knob’s sign in the Vertical alignment.(Fig.1) (2) Fit the chain cover. Tighten the handwheel clockwise for fastening the rail and chain cover.(Fig.2) (3)The adjust knob adjusting the chain tension.(Fig. 3) The saw chain must not sag, although it should be possible to pull it 1-2 millimetres away from the guide bar in the centre of the guide bar.
-
Page 20: Before Starting The Equipment
Original Instructions Fig. 3 Before starting the equipment Caution! Do not fit the battery untill the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury. - Page 21 Original Instructions Commissioning Chain brake WARNING! Always check that the chain brake is working properly before use. If not, do not use the chainsaw and have it repaired by a qualified specialist or a specialist workshop. The chain saw is equipped with protective equipment activated by a chain brake, which brings the chain to a standstill within a fraction of a second in the event of kickback.
- Page 22 Original Instructions Releasing the chain brake • Draw the hand guard in the direction of the bow-type handle. Checking the chain brake • Set the chainsaw down on a firm surface. • Release the chain brake. • Hold the chainsaw tight in both hands. •...
-
Page 23: Checking The Chain Lubrication
Original Instructions • Avoid oil spillages. Always wipe up spilled oil. • Check the oil level indicator (B) to make sure sufficient chain oil is available for lubrication. • Unscrew the oil tank cap (A). Before opening, clean the tank cover and filling nozzle if necessary. -
Page 24: Operation
Original Instructions • Press and hold down the switch lock (1). • Press the on/off switch(2). The chainsaw starts running. • Release the switch lock(1) again. Switching off the device: • Release the on/off(2) switch. Caution! In an emergency, stop the machine by releasing the on/off switch OPERATION ATTENTION! Do not operate the chainsaw with a defective or badly worn cutting device. - Page 25 Original Instructions Risk of injury! Never allow children to operate the chainsaw. Do not allow persons to use the chainsaw, if they have not read the operating manual or received appropriate instructions for the safe and correct use of the chainsaw. We recommend attending a suitable training course.
- Page 26 Original Instructions chain will run on for a short time after stop the motor, wait until all moving parts have come to a complete standstill, remove battery,place the protective sheath on the cutting unit,apply chain brake,leave the device to cool down. NOTE:After use, the battery temperature might be high, and the battery would be over-temperature protected, allow the battery cool down for half an hour and it would recovery function.
- Page 27 Original Instructions WARNING! If the guide bar tilts, the device may be jerked towards the user with great force. If the user does not balance the backward force of the saw chain with their body strength, there is a risk that only the tip of the guide bar will remain in contact with the wood and kickback will occur.
-
Page 28: Risk Of Injury
Original Instructions Risk of injury! Never saw fully through the trunk. The area (C) serves as a “hinge” and ensures the correct felling direction. During felling, only stand to the side of the tree you intend to fell! There is a risk of life-threatening injuries! Trunks lying flat on the grounds •... -
Page 29: Removing Branches
Original Instructions Removing branches • Always work on the side opposite the respective branch. • Start at the bottom of the branch and work up. • Saw into the branch 10–15 cm from the branch base from bottom to top, to 1/3 of the branch diameter (1). -
Page 30: Re-Tightening The Saw Chain
Original Instructions Cleaning WARNING! Do not use water or liquid cleaning products. CAUTION! Clean the device after every use. An unclean device will lead to material damage and malfunctions. • Use a damp cloth and a soft brush to clean the device. •... -
Page 31: Troubleshooting Guide
Original Instructions TROUBLESHOOTING GUIDE Fault Possible cause Remedy Battery empty Charge battery The equipment does Battery is not correctly not work Remove battery and insert again inserted Loose connection (external) Equipment operates Loose connection (internal) Consult a pecialist workshop. intermittently ON/OFF switch defective No oil in the tank Top up with oil... -
Page 32: Disposal And Recycling
Original Instructions • Place the protective sheath on the cutting unit. • Keep the device, and its plastic components in particular, always from brake fluid, products containing oil, penetrating oil etc. They contain chemical substances that may damage or destroy the plastic parts of the device. •... - Page 33 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
