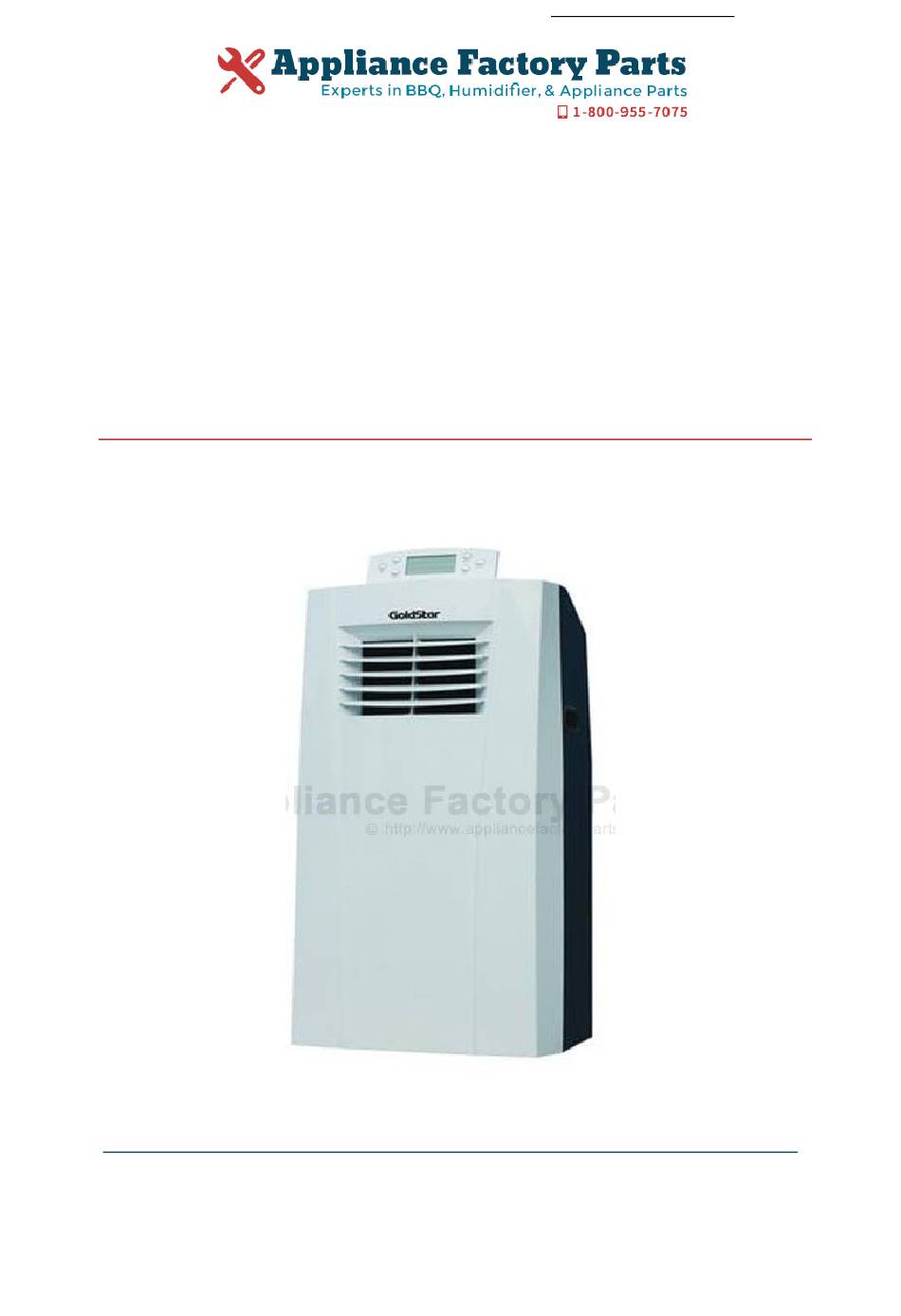

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG GP120CE Owner's Manual Shop genuine replacement parts for LG GP120CE Find Your LG Air Conditioner Parts - Select From 2328 Models -------- Manual continues below --------...
-
Page 2: Portable Air Conditioner
Internal Use Only http://biz.LGservice.com Portable Air Conditioner SVC MANUAL(Exploded View) GP120CE(TWC121ZBMM0) MODEL : CAUTION Before Servicing the unit, read the safety precautions in Standard SVC manual. Only for authorized service personnel. -
Page 3: Specification
1. Specification Models GP120CE 3.52 Cooling Capacity Btu/h 12,000 Heating Capacity Btu/h Electric Heater Capacity Btu/h Power Input Cooling/Heating 1,300 Running Current Cooling/Heating Starting Current Cooling/Heating c i r r e t e r r 2.71 Btu/h.W 9.20 Ø 1Ø / 115V / 60Hz r o t 97.1... -
Page 4: Piping Diagrams
2. Piping Diagrams Capillary Tube Heat Heat Exchanger Exchanger (Evaporator) (Condenser) Accumulator Compressor Service Manual 3... -
Page 5: Wiring Diagrams
3. Wiring Diagrams CNWT COMP CNPT CNRT CNRCV CNDISP UPER SWING CN-WAT DOWN 4 Portable Air Conditioner... -
Page 6: Exploded View
4. Exploded View 359012B 346810B 731270 146811 354210 147582A 435300 352380A 359012C 131111 147582B 152500B 264110 145200A 152302 235512 135515 346810A W0CZZB W50060C 152500A 261704 359012A 268711B 268711A 352380B W0CZZC 567480 135312 349011 267120 554030 346811 554160 552101 266001 145200B 35211A 352113 130410... - Page 7 P/NO : MFL38891311 JANUARY, 2008...
