Aloka PROSOUND ALPHA 5 Quick Reference Manual

Getting Started
1 Attach Probe at the base front of the system.
Probe cable extends out to the right.
2 Turn on system. The power switch is located on the left hand side
3 Press New Patient,
Press ID to exit
4 Press Preset, Trackball to desired Preset, press Set
5 Press Probe, Trackball to desired Probe, press Set
Brightness
Turn B Gain Knob:
Clockwise: Brighter
Counter-Clockwise: Darker
Depth
For a smaller image and more depth: Press
For a larger image and less depth:
Freeze
Freezes the image. Press again to unfreeze.
Measure
Press Freeze
Press the Caliper key,
Press Mark Ref to anchor the starting point.
Trackball to end point of measurement.
Number appears in box.

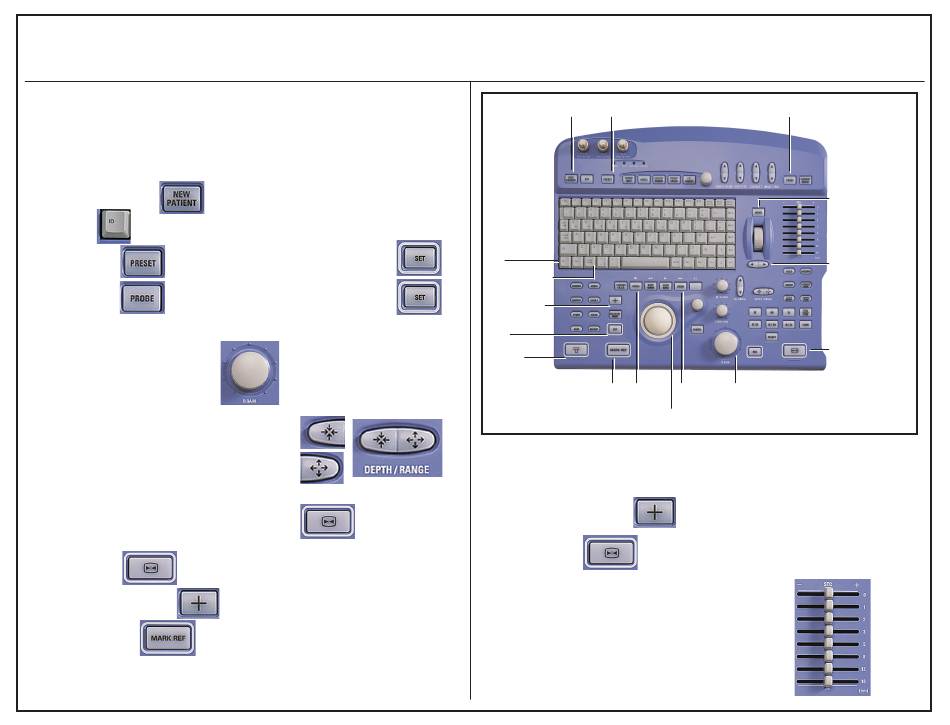

ALOKA PROSOUND ALPHA 5 ULTRASOUND SYSTEM
QUICK REFERENCE GUIDE
enter name and ID number
Press
move with trackball.
New Patient Preset
ID
Comment
Calipers
Set
Print
Focus
Mark Ref
Trackball
Measure (continued)
To take another measurement,
press the Caliper key
Press Freeze again to erase measurement box.
STC Slide Pots
Individual gain controls.
Used to fine-tune overall gain at specific depth.
Start with all in middle position then adjust
as needed.
Probe
Menu
Depth/Range
Freeze
Brightness
Zoom
again and repeat procedure.
