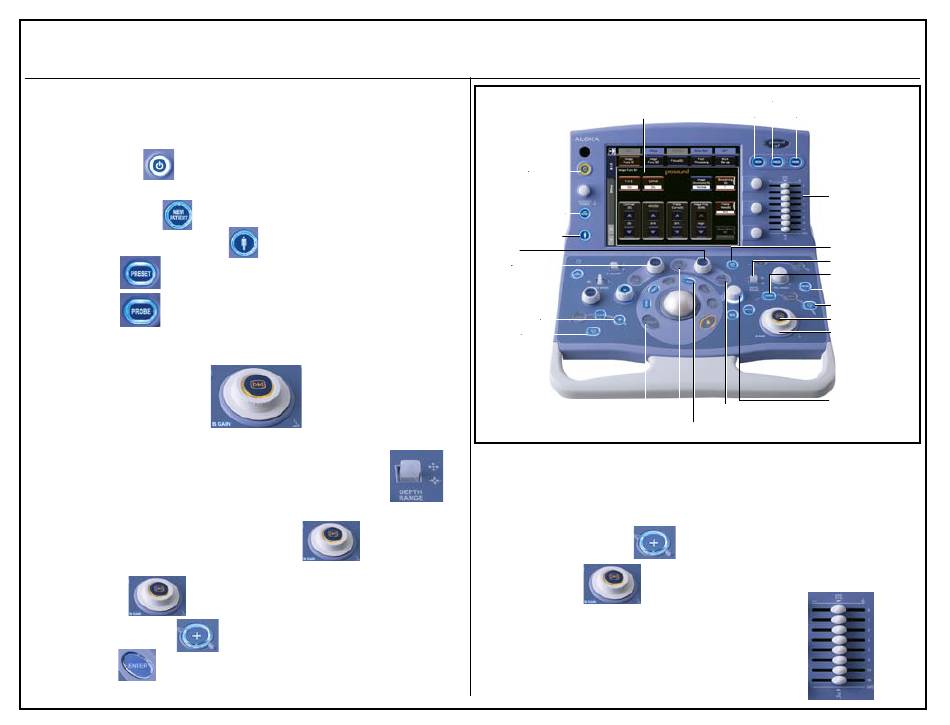

Aloka PROSOUND ALPHA 7 Quick Reference Manual

Getting Started
1 Attach Probe at the base front of the system.
Probe cable extends right.
2 Turn on system.
The power is located on the upper left panel
3 Press New Patient,
enter name and ID number
To exit: Press the Person Icon
4 Press Preset,
Select the desired exam on Touch Screen
5 Press Probe,
Select desired Probe on Touch Screen.
Press Probe to exit
Brightness
Turn B Gain Knob:
Clockwise: Brighter
Counter-Clockwise: Darker
Depth
For a smaller image and more depth: Press toggle down
For a larger image and less depth:
Freeze
Freezes the image. Press again to unfreeze.
Measure
Press Freeze
Press the Caliper key,
Press Enter
to anchor the starting point.
Trackball to end point of measurement. Number appears in box.
ALOKA PROSOUND ALPHA 7 ULTRASOUND SYSTEM
QUICK REFERENCE GUIDE
Note: You may also
change gain on the
frozen Image.
Press toggle up
move with trackball.

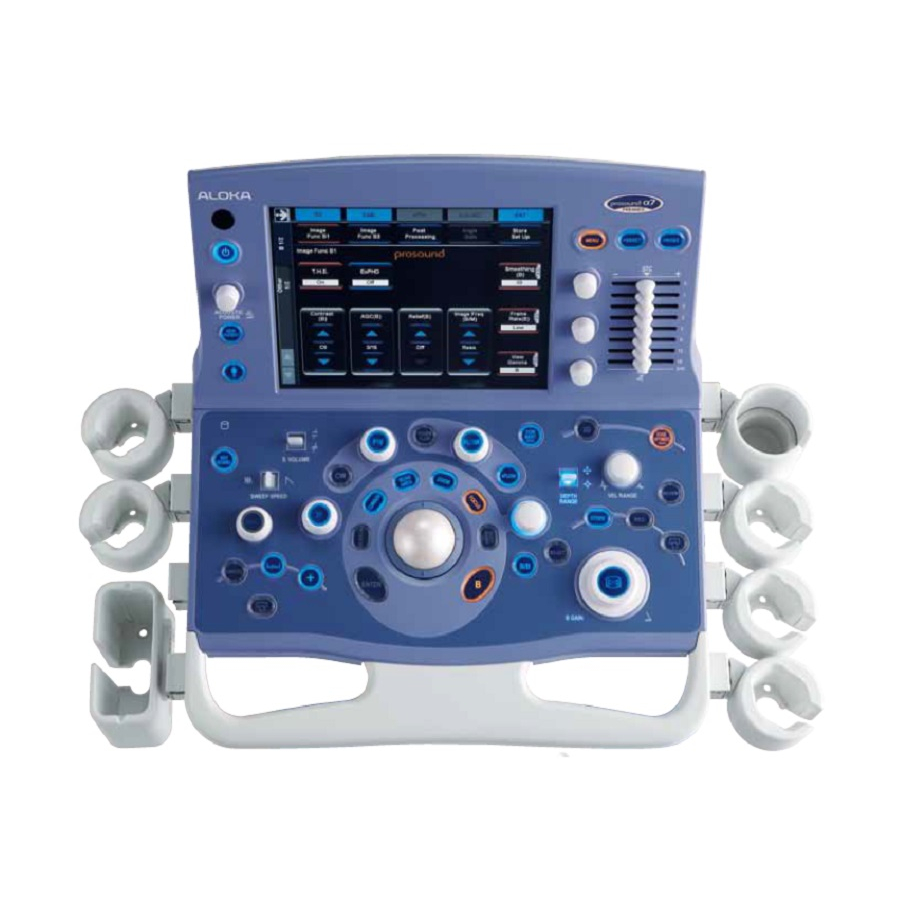

Touch Screen
Power
New Patient
Person Icon
Flow
PW
Calipers
Print
Enter
Power Flow
Measure (continued)
To take another measurement,
press the Caliper key
Press Freeze
again to erase measurement box.
STC Slide Pots
Individual gain controls.
Used to fine-tune overall gain at specific depth.
Start with all in middle position then adjust
Preset
Menu Probe
STC Pots
Comment
Depth/Range
Store
Review
Print
Freeze
B Gain
Rotary Knob
Eflow
Zoom
again and repeat procedure.
