Summary of Contents for Synergy SINGLE SU20

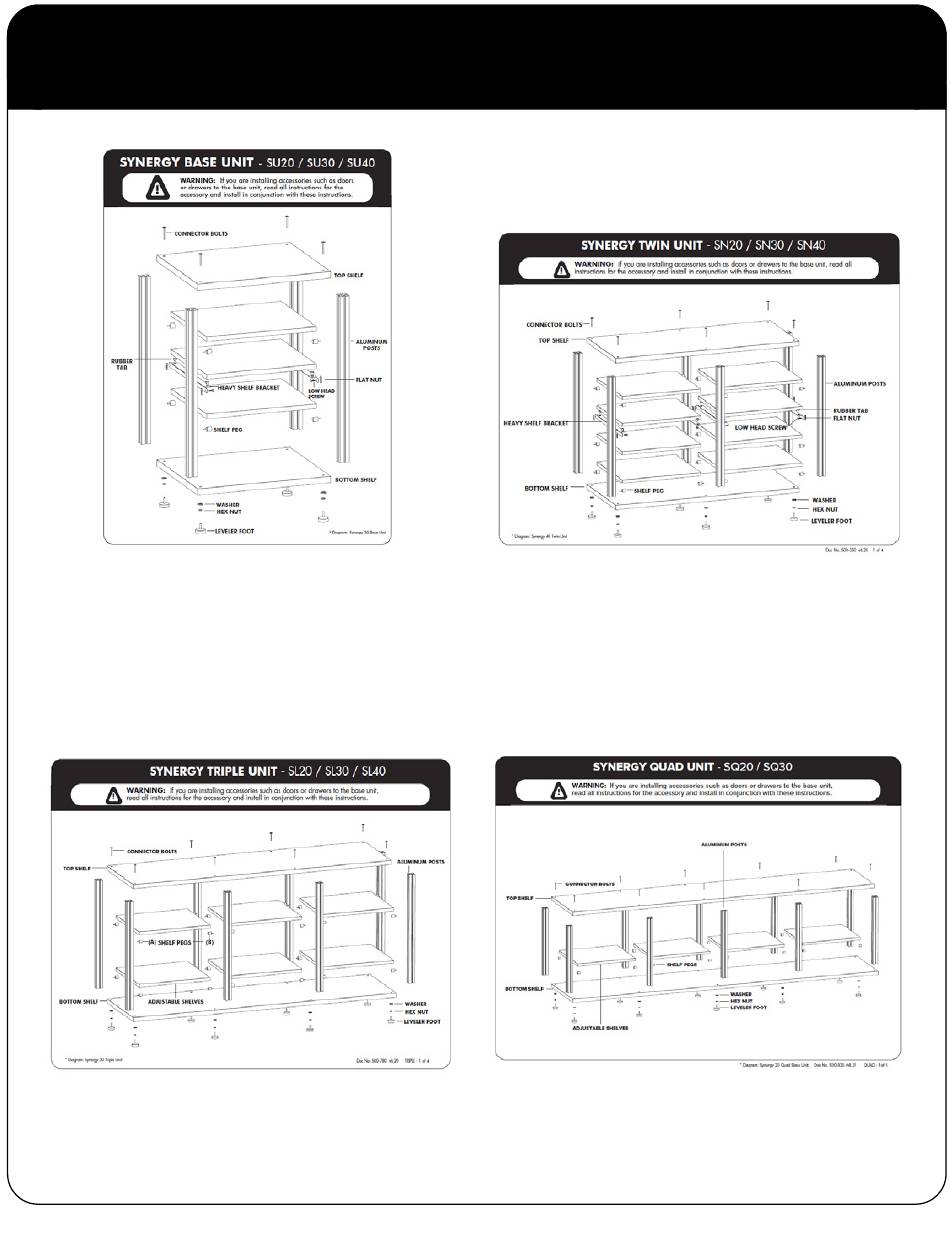

- Page 1 SYNERGY SYNERGY SINGLE SYNERGY TWIN (SU20/SU30/SU40) (SN20/SN30/SN40) SYNERGY TRIPLE SYNERGY QUAD (SL20/SL30/SL40) (SQ20/SQ30)
- Page 2 CONNECTOR BOLTS TOP SHELF ALUMINUM POSTS RUBBER FLAT NUT HEAVY SHELF BRACKET LOW HEAD SCREW SHELF PEG BOTTOM SHELF WASHER HEX NUT LEVELER FOOT * Diagram: Synergy 30 Base Unit...
-
Page 3: Limited Warranty
Parts Adjustable Shelf (SU20 -1) • (SU30 - 3) • (SU40 - 4) 4 - Aluminum Post Heavy Duty Shelf Bracket (SU30 - 2) • (SU40 - 2) 1 - Top Shelf 1 - Spacer Tool 1 - Bottom Shelf 1- Rear Panel (400-060) - 3/16”... - Page 4 Connect Posts to Bottom Shelf Add Shelf Pegs WARNING: If you are installing an optional door or drawer WARNING: Tighten by screwing the leveler foot NOT the post. refer to specific instructions before proceeding. Square Post Square the post to the bottom Insert all shelf pegs and heavy shelf shelf.
- Page 5 Attach Rear Panel Adjust Shelf Pegs & Add Shelves Adjusting Shelves Insert Hardware Insert peg down the post channel Combine the 1” threaded studs and position the peg through the with the flat nuts. Slide hardware Spacer and tighten. You may also into rear channel consider using books or CD’s for 8"...
- Page 6 SYNERGY TWIN UNIT - SN20 / SN30 / SN40 WARNING: If you are installing accessories such as doors or drawers to the base unit, read all instructions for the accessory and install in conjunction with these instructions. CONNECTOR BOLTS TOP SHELF...
- Page 7 Parts (400-060) - 3/16” Hex Key 6 - Aluminum Posts Adjustable Shelf (SN20 -2) • (SN30 - 4) • (SN40 - 8) 1 - Top Shelf Heavy Duty Shelf Bracket (SN40 - 4) 1 - Bottom Shelf 1 - Spacer Tool 2 - Rear Panels (400-035) - Wrench Rear Panel Bag - PHK-240...
- Page 8 Connect Posts to Bottom Shelf Add Shelf Pegs WARNING: If you are installing an optional door or drawer refer to WARNING: Tighten by screwing the leveler foot NOT the post. specific instructions before proceeding. Square Post Square the post to the bottom shelf. Insert all shelf pegs and heavy shelf brackets (SN40 only) down each post.
-
Page 9: Side Panels
Attach Rear Panel Adjust Shelf Pegs / Add Shelves Insert Hardware Adjusting Shelves Combine the 1” threaded studs Insert peg down the post channel with the flat nuts. Slide hardware and position the peg through the into rear channel Spacer and tighten. You may also consider using books or CD’s for shelf spacing. - Page 10 SYNERGY TRIPLE UNIT - SL20 / SL30 / SL40 WARNING: If you are installing accessories such as doors or drawers to the base unit, read all instructions for the accessory and install in conjunction with these instructions. CONNECTOR BOLTS ALUMINUM POSTS...
- Page 11 Any damage incurred in a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, UPS within the continental U.S.A. only. Salamander Designs Ltd. 800-535-5659 www.SalamanderDesigns.com Doc No. 500-780 v6.20 TRIPLE - 2 of 4 ©2003 Salamander Designs Ltd. ® Synergy System - U.S.A. Patented.
- Page 12 Connect Posts to Bottom Shelf Add Shelf Pegs WARNING: If you are installing an optional door or drawer refer WARNING: Tighten by screwing the leveler foot NOT the post. to specific instructions before proceeding. Square Post Connect Post Square the post to the bottom shelf. Screw foot with metal washer through bottom shelf and onto the end of Insert all shelf pegs down each post.
-
Page 13: Adjusting Shelves
Attach Rear Panel & Top Shelf Adjust Shelf Pegs & Add Shelves Insert & Align Adjusting Shelves Studs Combine Insert peg down the post channel the 1” threaded studs with and position the peg through the the flat nuts. Slide hardware into Spacer and tighten. - Page 14 SYNERGY QUAD UNIT - SQ20 / SQ30 WARNING: If you are installing accessories such as doors or drawers to the base unit, read all instructions for the accessory and install in conjunction with these instructions. ALUMINUM POSTS CONNECTOR BOLTS TOP SHELF...
- Page 15 Any damage incurred in a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only. Salamander Designs Ltd. 800-535-5659 www.SalamanderDesigns.com ©2021 Salamander Designs Ltd. ® Synergy System - U.S.A. Patented. Doc No. 500-935 v8.21 QUAD - 2 of 4...
- Page 16 Connect Posts to Bottom Shelf Add Shelves WARNING: If you are installing an optional door or drawer refer WARNING: Tighten by screwing the leveler foot NOT the post. to specific instructions before proceeding. Square Post Connect Post Insert shelf pegs down each post as shown. Square the post to the bottom shelf.
- Page 17 Attach Rear Panel & Top Shelf Adjust Shelf Pegs & Add Shelves Insert & Align Studs Combine the 1” threaded studs with the flat nuts. Slide hardware into rear posts. Adjusting Shelves Use the Spacer Tool to align top and bottom studs. Insert peg down the post channel and position the peg through the Spacer and tighten.
