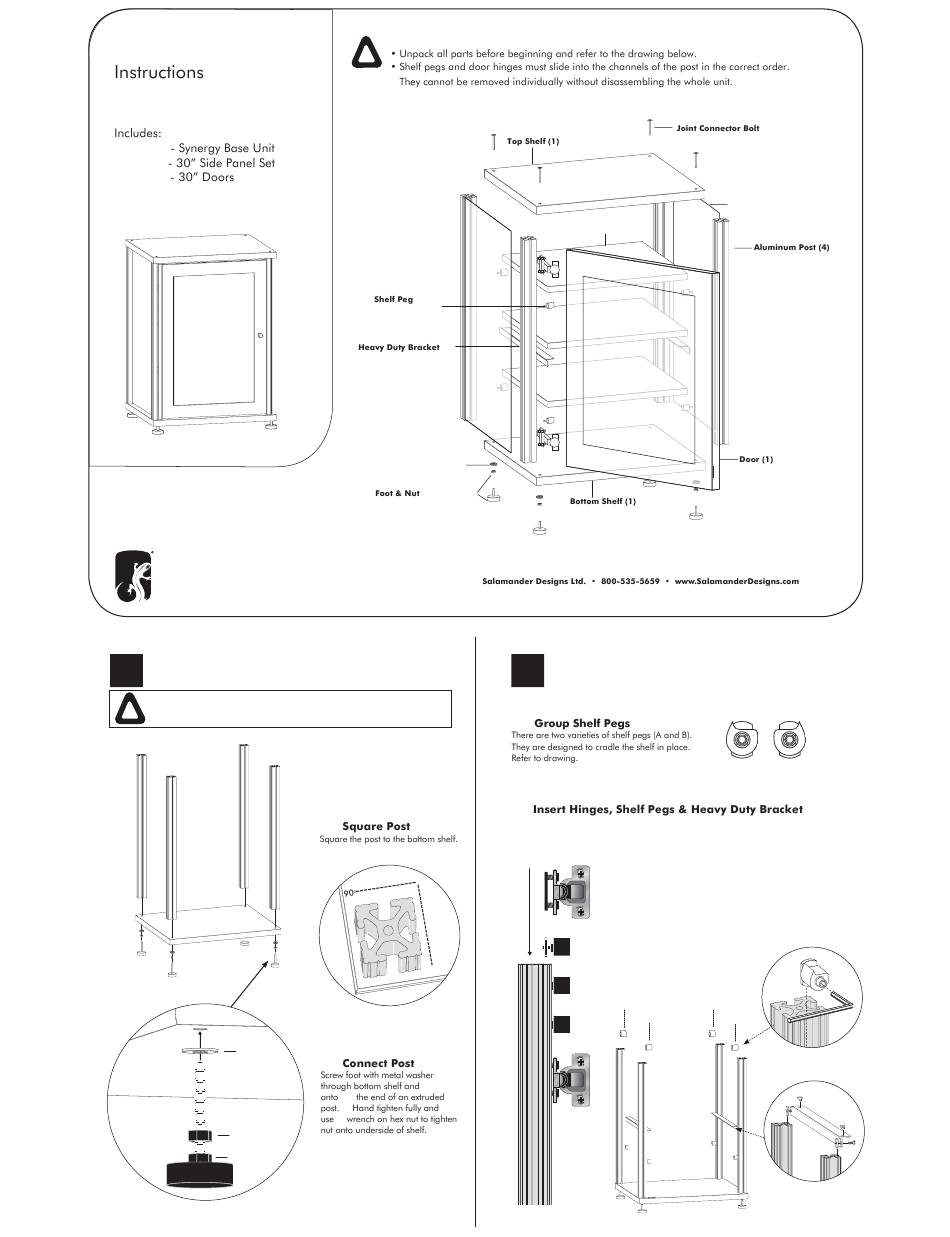

Synergy 303 Instructions

SYNERGY 303
(1) SU30
(1) SS30
(1) SD30
Limited Warranty
For five full years Salamander Designs Ltd. will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential
to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a shipment not in original packaging shall be the
responsibility of the owner. Warranty repairs will be returned prepaid, via UPS within the continental U.S.A. only.
Doc No. 500-630/v2 ©2002 Salamander Designs Ltd.
1
Connect Posts to Bottom Shelf
WARNING: Tighten by screwing the leveler foot NOT the post.
!
Washer
Hex Nut
Leveler Foot

BEFORE YOU BEGIN:

!
PHK-370 Right (4)
PHK-380 Left (4)
(2)
Washer 300-470 (4)
P-300-350 (4)
A
.
B
.
Adjustable Shelf (3)
2
Add Shelf Pegs & Door Hinges
A
.
B
.
Note: The door can be either left or right side opening. Select a side to open door.
1.
Hold door above the post and slide the
bottom
hinge plate through the post channel.
2.
Insert shelf pegs and heavy duty bracket.
3.
Slide top hinge plate through.
4.
Gently tighten all remaining pegs with the
hex key to desired position.
B
A
300-540 (4)
Sides (2)
A
B
A
B
Rubber Tabs
