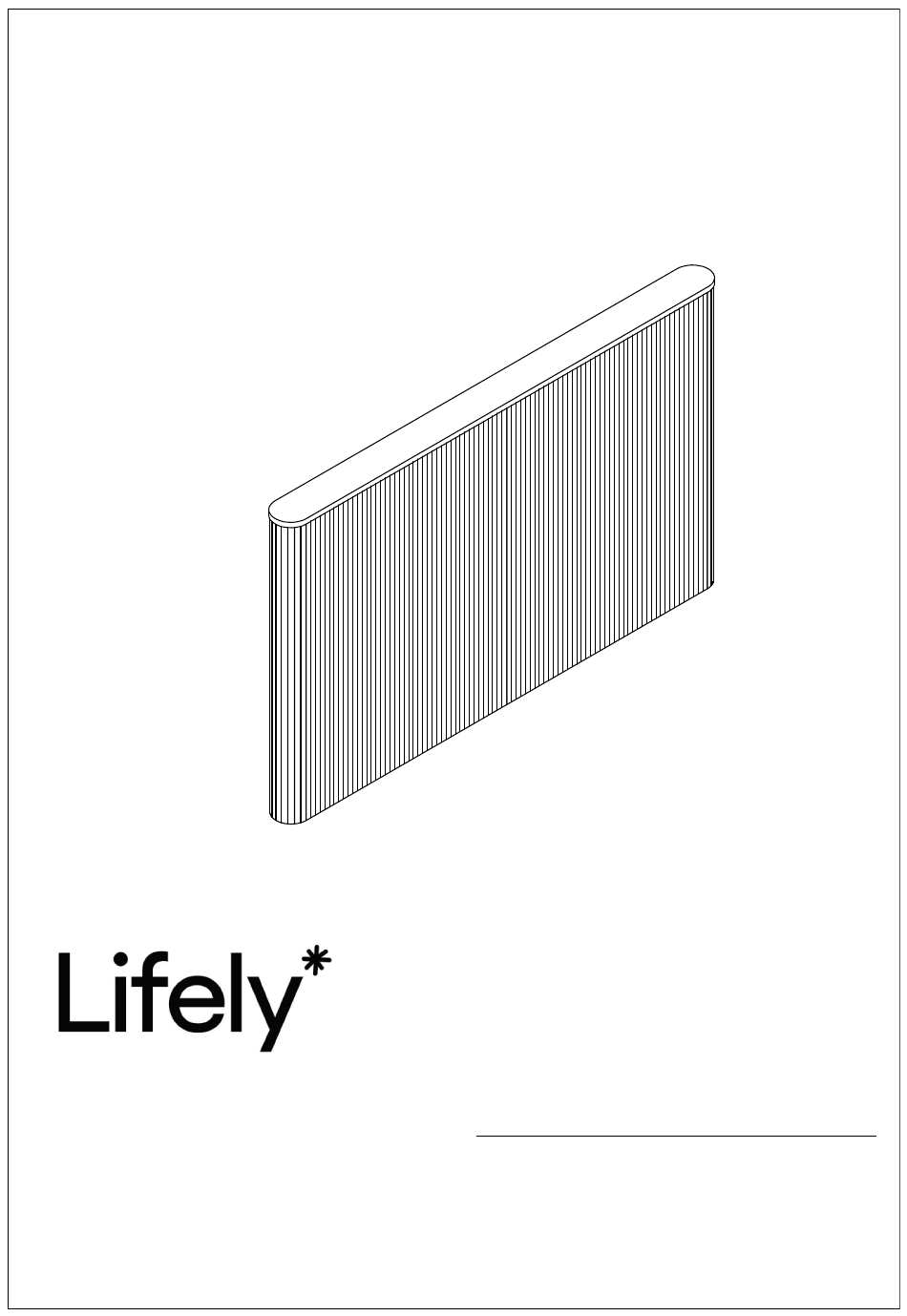

Assembly Instructions
Tate Series
Product Code
TATE-KHB-NATURAL HEADBOARD
Dimensions
W x D x H
(
2018*120*1010mm
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Tate Series
Summary of Contents for Lifely Tate Series
- Page 1 Assembly Instructions Tate Series Product Code Important TATE-KHB-NATURAL HEADBOARD Please read through instruction carefully Before assembly and keep for future reference. Dimensions W x D x H For our full catalogue of assembly instructions, 2018*120*1010mm Visit: lifely.com.au/assembly.
- Page 2 Important Tips and Maintenance Never place liquids or anything Never use ammonia based To avoid fading, keep furniture Keep children and animals away from working area as cleaning products as it will damp upon furniture as it out of direct sunlight. smaller parts may cause chok- will mark.
- Page 3 So your relationship is strong.But is it flat-pack furniture strong? Unless you're an aerospace engineer,assembling furniture can be slightly stressful.We recommend meditating quietly,pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time.If you feel a passive aggressive remark coming on,try a compliment instead.E.g.“You’re so...
-
Page 4: Before Assembly
Before Assembly Tips Before Your Start: - Remove all wrapping material, including staples & packing straps before you start to assemble. - DO NOT tighten all screws and bolts until completely assembled. - Keep all hardware parts out of reach of children. QUICKFIT Shoulder Panel... -
Page 5: Component Hardware
Component Hardware Please check you have all the fittings part or tools are listed in below. No. A No. B No. D No. E No. C Quantity:24Pcs Quantity:44Pcs Quantity:13Pcs Quantity:44Pcs Quantity:2Pcs Cam Lock Dowel Cam Lock Dowel Screw Dowel 8*28mm 8*30mm φ15 8*64mm... - Page 6 Component Panels & Part List Please check you have all the panels are listed below. Left Front Panel CTN 2/2 Right Front Panell CTN 2/2 Top Panel CTN 1/2 Left Pillar CTN 1/2 Right Pillar CTN 1/2 Brace CTN 1/2 Back Panel CTN 2/2 TATE-KHB-NATURAL...
- Page 7 STEP 1 No. C No. B No. D Quantity:4 PcS Quantity:5 Pcs Quantity:2 Pcs Dowel Cam Lock Dowel 8*30mm 8*64mm STEP 2 No. A Quantity:16Pcs Cam Lock Dowel 8*28 mm TATE-KHB-NATURAL...
- Page 8 STEP 3 No. C Quantity:16 PcS STEP 4 No. A Quantity:16 Pcs Cam Lock Dowel 8*28 mm TATE-KHB-NATURAL...
- Page 9 STEP 5 No. B No. C No. F Quantity:4 Pcs Quantity:6Pcs Quantity:16 Pcs Dowel Foot Pad 8*30mm φ20 STEP 6 No. A Quantity:12 Pcs Cam Lock Dowel 8*28 mm TATE-KHB-NATURAL...
- Page 10 STEP 7 No. B No. C Quantity:4 Pcs Quantity:8 Pcs Dowel 8*30mm STEP 8 No.E Quantity:24Pcs Screw 4*16mm TATE-KHB-NATURAL...
- Page 11 Great job. You're done! Don't forget to share how it looks in your space and tag us on lnstagram. @lifelyhome#homewithlifely!
