Assembly Instructions
Trudy Series
Product Code

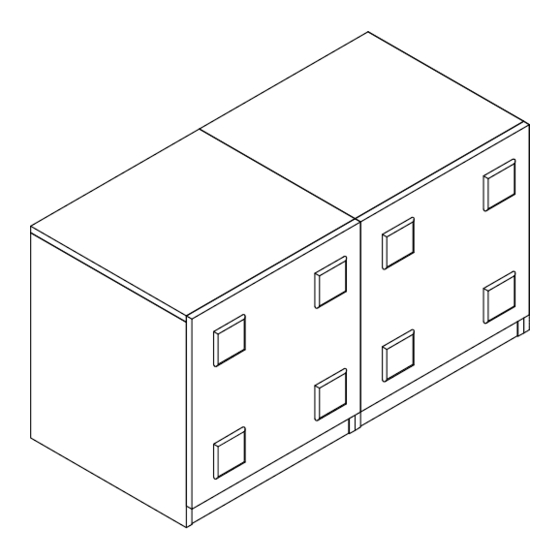

TDY-TV-180 Trudy TV Unit
Dimensions
W x D x H
(
900*430*500mm
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Trudy TDY-TV-180
Summary of Contents for Lifely Trudy TDY-TV-180
- Page 1 Assembly Instructions Trudy Series Product Code Important TDY-TV-180 Trudy TV Unit Please read through instruction carefully Before assembly and keep for future reference. Dimensions W x D x H For our full catalogue of assembly instructions, 900*430*500mm Visit: lifely.com.au/assembly.
- Page 2 Important Tips and Maintenance Never place liquids or anything Never use ammonia based To avoid fading, keep furniture Keep children and animals away from working area as cleaning products as it will damp upon furniture as it out of direct sunlight. smaller parts may cause chok- will mark.
- Page 3 So your relationship is strong. But is it flat-pack furniture strong? Unless you're an aerospace engineer, assembling furniture can be slightly sressful. We recommend meditating quietly, pouring yourself a herbal tea(or slightly less herbal wine) and tackling things one step at a time.If you feel a passive aggressive remark coming on, try a compliment instead.E.g.
-
Page 4: Before Assembly
Before Assembly Tips Before Your Start: - Remove all wrapping material, including staples & packing straps before you start to assemble. - DO NOT tighten all screws and bolts until completely assembled. - Keep all hardware parts out of reach of children. QUICKFIT Shoulder Panel... - Page 5 Component Hardware Please check you have all the fittings part or tools are listed in below. No. A No. B No. C No. D No. E Quantity:8Pcs Quantity:36Pcs Quantity:24Pcs Quantity:36Pcs Quantity:16Pcs Cam Lock Dowel Dowel Shelf Support Screw 8*28mm 8*30mm φ15 4*16mm No.
- Page 6 Component Panels & part List Please check you have all the panels are listed below. TOP PANEL SIDE PANEL_LEFT SIDE PANEL_RIGHT BOTTOM PANEL FRONT BRACE BACK PANEL BACK PANEL SHELF DOOR PANEL TDY-TV-180-6...
- Page 7 STEP 1 No. A Quantity: 12 Pcs Cam Lock Dowel 8*28 mm STEP 2 No. A Quantity: 20 Pcs Cam Lock Dowel 8*28 mm TDY-TV-180-7...
- Page 8 STEP 3 No. A Quantity: 4 Pcs Cam Lock Dowel 8*28 mm STEP 4 No. C Quantity: 4 Pcs Cam Lock φ15mm TDY-TV-180-8...
- Page 9 STEP 5 No. C No. B Quantity: 10 Pcs Quantity:10 Pcs Cam Lock Dowel φ15mm 8*30mm STEP 6 No. B No. C Quantity: 10 Pcs Quantity:6 Pcs Cam Lock Dowel φ15mm 8*30mm TDY-TV-180-9...
- Page 10 STEP 7 No. C No. B Quantity:12 Pcs Quantity:8 Pcs Cam Lock Dowel φ15mm 8*30mm STEP 8 No. D Quantity:8 Pcs Shelf Support TDY-TV-180-10...
- Page 11 STEP 9 No. E No.G Quantity:8 Pcs Quantity:4 Pcs Screw Hinge 4*14mm STEP 10 No. E No. F Quantity:8 Pcs Quantity:8 Pcs Screw Screw 4*16mm 4*14mm TDY-TV-180-11...
- Page 12 Different Combinations to create Lifely Home STEP 11 2 bedside tables 1.8m TV 2.7m TV 1.35*1.35m shoe cabinet 0.9*0.9m shoe cabinet TDY-TV-180-12...
- Page 13 STEP 12 No. H Quantity:1 Set Anti-falling Parts TOPPLING FURNITURE WARNING: It is strongly recommended that this product is permanently fixed to the wall. Please seek professional advice if you are in doubt of what fixing device to use. Regularly check that anchors are securely maintained.
- Page 14 Great job. You're done! Don't forget to share how it looks in your space and tag us on lnstagram. @lifelyhome#homewithlifely!
