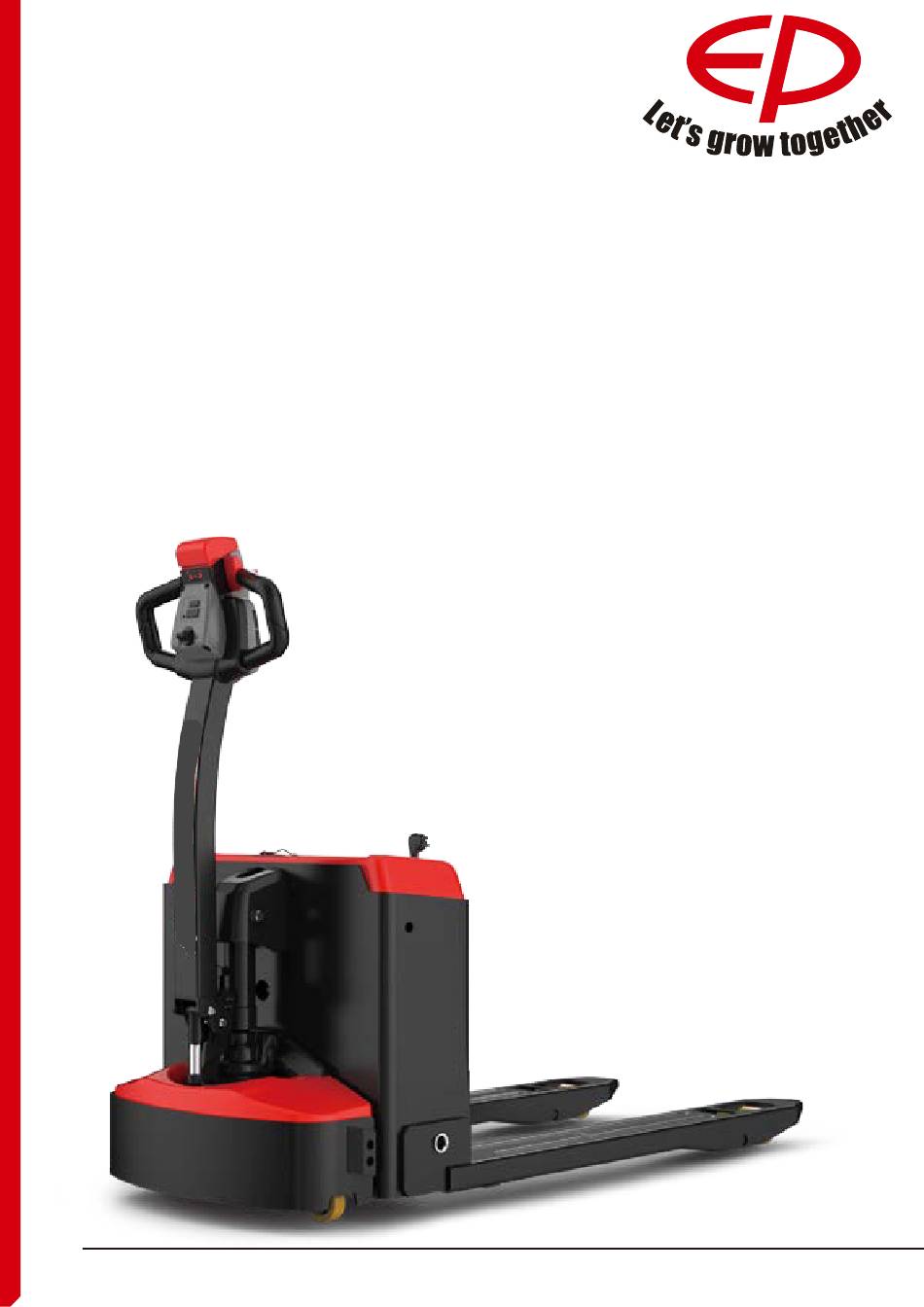

- Page 1 Operation Manual EPT20-ET2 EPT20-ET2L Electric pallet trcuk Part No.508000005306 V2 10/2022...
- Page 2 (s) or design (s) of our products at any time without any beforehand notification. Safety signs and corresponding esplations With business all over the world, EP has EP EQUIPMENT CO.,LTD. is one of the world’s thousands of employees and hundreds of agents...
- Page 3 Intended use Obligations and responsibilities of equipment user In the manual, “equipment user” refers to any natural person or legal person directly using or appointing or authorizing others to use the carrier. In such special situations as renting or sales, The lift truck is designed for transporting and stacking the loads stated in the the “equipment user”...
-
Page 4: Table Of Contents
Table of contents A Introduction........................A1 1.1Nameplates and alarming labels ..................A1 1.2 Utilization safety specification..................A3 1.3 Related Safety Instruction and Standard(For CE) ............A6 1.3.1 EN standards .......................A6 1.3.2 Conditions for application ....................A6 1.3.3 Vibration ........................A7 1.4 Transport and commissiong ...................A8 1.4.1 Truck transport......................A8 1.4.2 Comissioning .......................A9 B Operation ......................B1 1.1 Overview , Display, Manipulation .................B1... - Page 5 F Lithium-ion battery ......................F1 1 Information on the conformity of lithium-ion batteries ............F2 2 It is necessary to respect the following guidelines:............F2 3 Intended use ........................F3 4 Reasonably foreseeable misuse ..................F3 5.Accessories ........................F3 6.BMS (Battery Management System) .................F3 7 Safety and warning ......................F4 8 Hazard of faulty or discarded battery.................F5 9 Transportation........................F5 9.1 Shipping faulty batteries ....................F5...
-
Page 6: A Introduction
Introduction 1.1 Nameplates and alarming labels Plates and labels, such as nameplate, load curve plate, warning labels must be legible, if identification is unclear, and must be replaced. The figure below shows the approximate location of the various identity resides. Before operating the truck, please understand the meaning of the various identities for EPT20-ET 508000000094... -
Page 7: Utilization Safety Specification
Prohibition label: “No passengers” Hoist label: Fixed point when using the crane to handle equipment. Charging indicator light for EPT20-ET2 Charging indicator light and LED Fault Indicator for EPT20-ET2 Lithium-ion battery sign label Truck nameplate For queries regarding the truck or ordering spare parts please quote the truck serial number. - Page 8 Improper use Safety Instructions • Only trained and authorized operator shall be permitted to operate the truck. • Operator must wear helmet, working shoes and uniform • Do wash the inner of the truck, do not place the truck outdoors and exposed to the rain. •...
-
Page 9: Related Safety Instruction And Standard(For Ce)
1.3 Related Safety Instruction and Standard(For CE) 1.3.3 Vibrations Vibrations to which the hands and arms are exposed 1.3.1 EN standards The following value is valid for all truck models: Continuous sound level: ＜ 74 dB(A) Specified characteristics for upper limb vibrationspecified characteristics for according to EN 12053 as stipulated in ISO 4871 upper limb vibrations The continuous sound level is a value averaged according to standard regulations, taking the... -
Page 10: Transport And Commissiong
1.4 Transport and commissiong 1.4.2 Hoisting 1.4.1 Truck transport Park the truck securely as described chapter B Section1.2.6 Secure the lifting slings to the strap point, and prevent them from slipping. Crane slings should be fastened in such a way that they do not come into contact with any attachments when lifting. -
Page 11: Comissioning
Operation 1.4.3 Comissioning 1.1 Overview, Display, Manipulation The truck must only be operated on battery current! To prepare the truck for operation after delivery or transportation, the following operations must be 1.1.1 Truck overview performed: Check the equipment for completeness. If necessary, install the battery. -
Page 12: Control Handle
1.1.2 Control handle 1.1.4 Display instrument Control handle LCD (1) displays the residual electric charge of the battery; Lowering button Lower loading parts LCD (2) displays the total operation time of the truck; Lifting button Lift loading parts LCD (3) is a fault indicating light. DISPLAY DESCRIPTION Horn button... -
Page 13: Truck Use And Operation
1.2 Truck use and operation Table 1: Table of Daily Inspections by Operators is only a sample table for the daily inspections of operators, and it can be adjusted according to specific requirements. 1.2.1 Preparation for use The following are inspection and preparation operations that must be implemented before the truck WARNING is put into daily use. -
Page 14: Running, Swerving And Braking
2.Steering 1.2.4 Running, swerving and braking Rotate the operation hand shank leftward or rightward as required. 1.Running Running area Running area Rightward Leftward Forward Drive switch Backward Control the running direction and speed of the truck using the drive switch (1). (the large the 3.Braking rotary angle, the faster corresponding speed) Mechanical operating brake... -
Page 15: Goods Picking
Emergency reverse switch 1.2.5 Goods picking To protect the driver from any risk of being trapped between an obstacle and the 1.Lifting machine,the end of the tiller is fitted with a Keep pressing the lifting button until emergency emergency reverse switch. Once the safety reverser is triggered, the reaching the required lifting height equipment will stop immediately, then slowly... -
Page 16: Parking The Truck Securely
1.2.6 Parking the truck securely 1.2.7 Drive directions Lower the forks to the bottom; The drive directions of the truck are forward (1) and reverse (2). 1.2.8 Loading •Approach the load carefully. •Adjust the height of the forks until they can be easily inserted into the pallet. -
Page 17: Using The Truck On A Slope
NOTE DANGER Since visibility is reduced when travelling Risk to life and/or risk of major equipment in this direction, drive only at very slow damage. speed. Never park the truck on a slope. Never make a U-turn or take shortcuts on Unloading a slope. -
Page 18: Operating The Truck Without Its Own Drive System
If the truck has to be moved after a failure has rendered it immobile, proceed as follows: • Set the emergency stop switch “OFF”. 1.1 Safety and warning for EPT20-ET2 • Set the key switch “OFF” and remove the key. •... -
Page 19: Battery Charging
•Connect the power plug and have it inserted into a proper power supply. In the event of accidental skin contact with electrolyte, the affected parts shall be washed with EPT20-ET2 EPT20-ET2L large quantities of water or with adequate neutralizing solutions. If irritation of skin persists power plug medical attention shall be obtaine. -
Page 20: Battery Type & Dimensions&Charging Time
1.2.3 Battery type & dimensions&Charging time WARNING Charger maximum input power: 333W(EPT20-ET2) and 667W(EPT20-ET2L). Please strictly implement the above data to prevent equipment damage and accidental risks such as fire. Battery types & dimensions are as follows: Charging indicator Tuck type... -
Page 21: D Maintenance
Maintenance 1.1 Truck maintenance Only through regularly implementing truck maintenance work can the sustainable and reliable use of the forklift be ensured. Only those receiving professional training and approved as qualified can be competent in various equipment care maintenance operations. If you intend to independently implement maintenance, you are recommended to have your maintenance personnel receive on-site training from the service representative of the equipment supplier. -
Page 22: Maintenance Table
1.2 Maintenance table Safety tests to be performed at intervals and after unusual incidents 50-hour/7-Day maintenance The truck must be inspected at least annually (refer to national regulations) or after any unusual Check the functions of the operation switches and display. event by a qualified inspector. -
Page 23: Check The Electrical Fuses
2000-hour/12-month maintenance 1.2.1 Check the electrical fuses After operating for 2000 hours in total, the truck should also be maintained according to the following procedures in addition to the 50-hour maintenance,250-hour maintenance, 500-hour • Prepare the truck for maintenance and repairs. maintenance and 1000-hour maintenance mentioned above •... -
Page 24: E Technical Data
Technical data Standard Version Specifications Technical specification details in accordance with VDI 2198. Technical modifications and additions reserved. Performance data for standard trucks Distinguishing mark Manufacturer Model designation EPT20-ET2 EPT20-ET2L Drive unit Battery Battery Operator type Pedestrian Pedestrian rated capacity... - Page 25 Lowering speed, laden/ m/ s 0.05 / 0.026 0.05/0.026 Tyre size, driving Ф210x70 Ф210x70 unladen wheels(diameter×width) Max. gradeability, laden/ 5 / 16 8\16 Tyre size, loading 2×Ф80x61 2x Ф80x61( unladen wheels(diameter×width) Ф74x88) 5.10 Service brake type Electrom Electrom Tyre size, caster Ф74x30 Ф74x30 agnetic...
-
Page 26: F Lithium-Ion Battery
Dimensions Lithium-ion battery REV. 09/2022 REV. 09/2022... -
Page 27: Information On The Conformity Of Lithium-Ion Batteries
40° C to ensure the smoothness of charging); • Use water-based extinguishers,CO2, dry chemical fire extinguishers. • Do only use in trucks manufactured by EP and if the battery type is released for that truck. REV. 09/2022... -
Page 28: Safety And Warning
Please dispose of the damaged batteries properly and contact a recycling company to recycle the batteries. For batteries that are under EP warranty policy, EP will access the warranty claim according to your submission of the battery nameplate photo . -
Page 29: Transportation
Equipment repairs on EP batteries. 2、All Li-ion battery should be placed in safe place according to the EP Li-ion battery Manual; 3、The transport of Li-ion battery must meet local regulation, EP will supply UN38.3 and MSDS files according with UN and ADR regulation;... -
Page 30: Charging
If the battery is not fully charged in specified time, check the max. voltage of the cells of the this manual; if you have any questions about the status or solutions, please contact ep dealer battery, if it is higher than 3.65V, stop charging it immediately, and contact the after-sales service. -
Page 31: Service
14.Service No. Maintenance content Method of operation Note Frequency Daily Maintenance Clean the lithium battery Perform a visual Make sure it tight weekly No. Maintenance content Method of operation Note Frequency and charger with a dry inspection, Wear cloth or compressed air. insulated gloves and Check if battery Check instrumentation... - Page 32 0ºC to 40ºC (32ºF to 104ºF) or in an environment with greater than 85% humidity. EP recommends to opportunity charge lithium-ion batteries. This is when the battery is recharged for short intervals during a shift period. It reduces or eliminates the need for long charging periods, changing batteries during a shift, and extending shift periods.
