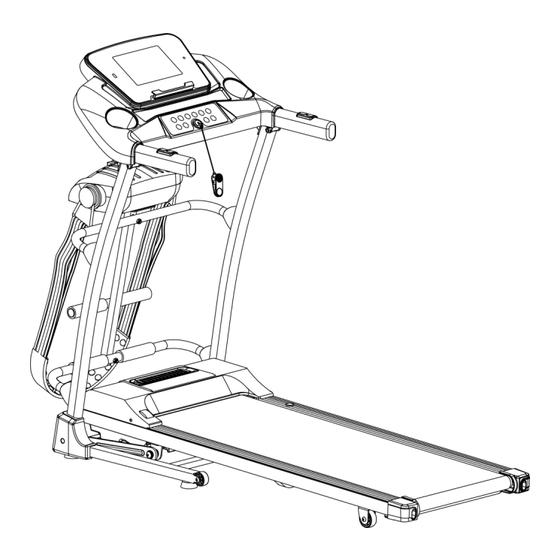

- Page 1 USER’S MANUAL Model: SmartrunCardiff Note: Following the principles of sustainable development, we may modify machines when necessary and will not notify again. It all depends on the actual product.
-
Page 2: Table Of Contents
Contents Product Brief ......................Security Precautions and Warnings ............... Installation Instructions ..................Using Instructions ....................Routine Maintenance .................... -
Page 3: Product Brief
1. Product Brief Main technical parameters Parameters Names Description Input voltage 220-240V~ Rated frequency 50-60Hz Speed 1.0-14km/h Running surface 1200*400 mm Expand dimensions 1540*645*1185 mm Packing list Name units Name units Complete machine Accessory bag Side cover Accessory bag list Name units Name... -
Page 4: Security Precautions And Warnings
2. Security Precautions and Warnings Tips: Before folding the treadmill, make sure that the gradient is "zero". Please read the instructions carefully before use. Notice: ◆ Indoor using and storing the treadmill, avoid dampness, and cannot be spilled by water. ◆... - Page 5 ◆ Don’t place machine in direct sunlight, or high temperature places such as near a stove or a heating appliance. ----Otherwise, may cause the leakage and burst into flames. ◆ Don't use when the power cord is damaged or power plug pin is loose. ----Otherwise, will lead to an electric shock, short circuit or fire.
-
Page 6: Installation Instructions
channel for electric current, in order to reduce the electric shock risk. ◆ This product is equipped with power plug with grounding conductor and plug. Completely insert the plug to standard socket. ◆ If the equipment grounding conductor’s connection is improper, it will cause electric shock. If you have doubts about whether your product is grounded correct or not, please entrust professional to check. - Page 7 the columns. M8*20 3. Use screwdriver to remove the preinstalled screw M5*14 and use them to install the base corner covers on the base. M5*14 4.Put the safety key on the right position to make sure the treadmill starts normally. Note: Safety key is in red color.
- Page 8 6. Use 5# inner hexagon wrench, screw M8*35, and nut M8 to lock the U shaped tubes on the columns (Picture A). Then use the decorative covers to cover the screws (Picture B). (Install the U shaped tube with foams under the one without the foam.) M8*35 7.
- Page 9 Wrong Correct M8*15 9. Fix these two foams on the frame. ● Folding treadmill: The treadmill can be folded to save space; before folding, turn off the power switch of the treadmill and unplug it. Lift the treadmill by hand until the treadmill is stuck. ●...
-
Page 10: Using Instructions
4. Using Instructions Using treadmill 1) Insert the power plug properly and turn on the switch (in red color) When the light is on, there will be a sound of “Di”, and then the screen will be light up (Systems with TFT screen takes more time to enter the start interface). - Page 11 automatic mode. Calorie display Display cumulative calorie under manual mode and programs. Display the calorie countdown in automatic mode. Heart rate display Heart rate signal will be detected, and the heart-shaped mark flashes while testing This data is for reference only, it cannot be considered as medical data. Automatic programs Each program is divided into 10 segments, and the running time of each segment is evenly divided.
- Page 12 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Translation of error codes Fault code Failure Description Fault handling Communication Check the cable connection between the console and the Abnormal: when control border to ensure that each core is fully plugged power in.
-
Page 13: Routine Maintenance
Explosion-proof impact Possible Cause: protection: Check if the power supply voltage is 50% lower than abnormal voltage normal voltage ， use the correct voltage and test the motor cause the faulty machine again check if the controller has a burnt smell of circuit that drive the and replace the controller;... - Page 14 Step 1: Open the oil filler cover on the right side of the edge strip. Step 2: Open the lubricating oil bottle, squeeze in above the refueling mouth lubricating oil, as shown on the right picture. Customer Care Support Email: support@cultsport.com Website: www.cultsport.com Toll Free: 1800-572-6402/1800-572-6303...
