Summary of Contents for cultsport smartrun c2
-
Page 2: Table Of Contents
Contents ………………………………………....…… 1 1.Product Brief …………………………..…………3 2.Security Precautions and Warning …………………………………….……...…...5 3.Installation Instructions …………….……………………………..……….7 4.Using Instructions ………………………….……10 5.Routine Maintenance and Instructions …... -
Page 3: Product Brief

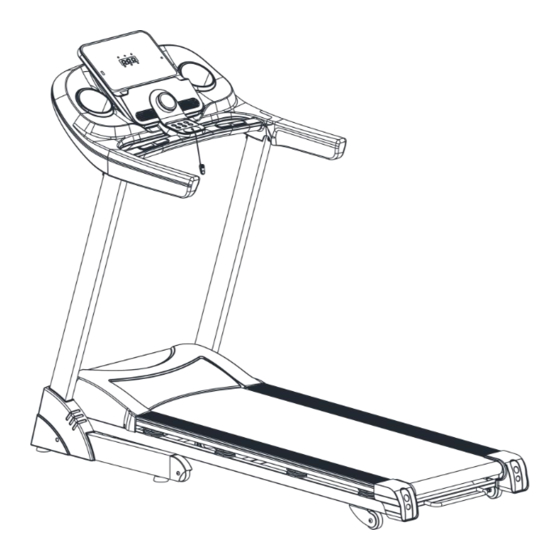

1. Product Brief Product name: Single Function Electric Treadmill Main technical parameters Parameters Description Input power voltage AC220-240V(50~60Hz) Power 4 HP Speed 0.8-16 Km/h Running surface 1260*450 mm Max user weight 120KG Expand dimension 1670*720*1320 mm Packing list Name Units Complete machine Accessory bag Base cover... -
Page 4: Security Precautions And Warning
2. Security Precautions and Warnings Tips: Before folding the treadmill, make sure that the gradient is "zero". Please read the instructions carefully before use Notice: ◆ Indoor using and storing the treadmill, avoid dampness, and can not be spilled by water. ◆... - Page 5 ◆ Don't keep machine in or near moist space such as the bathroom. ◆ Don’t place machine in direct sunlight, or high temperature places such as near a stove or a heating appliance . ----Otherwise may cause the leakage and burst into flames. ◆...
-
Page 6: Installation Instructions
by children without supervision. Ground protection system! ◆ This product must be grounded. If the machine is dysfunctional, grounding will provide a good channel for electric current, in order to reduce the electric shock risk. ◆ This product is equipped with power plug with grounding conductor and plug. Completely insert undi the plug to standard socket. - Page 7 3. Hold left right columns, use 5# hexagon wrench to lock the console frame on the columns with screw M8*22. M8*22 4. Use screwdriver to lock the base covers onto the base with screw M5*14 . M5*14 5. Keep the safety key on the position as the following picture. Please find the red color safety key in the accessory bag.
-
Page 8: Using Instructions
4. Using Instructions Using treadmill 1. Insert the power plug properly and turn on the switch(in red color)(1). When the light is on, you will hear a beep sound, and then the screen will be light up(Systems of TFT screen takes more time to enter the start interface). - Page 9 goes back to the main interface. 4.4 Button Functions 4.4.1 Start button: When the power is on, press the rotation knob to start the treadmill. 4.4.2 Stop button: When the treadmill is in running state, press the rotation knob for 3-5 seconds to stop the treadmill.
- Page 10 Time Set time / 10 = Running time of each segment Program SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
- Page 11 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Translation of Error Codes Error Code Description Check and solution Communication Abnormal: Check the cable connection between the console and the control when the power is on, the border to ensure that each core is fully plugged in. Replace the connection between lower connection cable if it is damaged.
-
Page 12: Routine Maintenance And Instructions
5. Routine Maintenance and Instructions Warning: Before cleaning or maintaining products, please make sure the power plug of the treadmill is pulled out. Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill. Remove dust periodically in order to keep the parts clean. Make sure to clean running belt with both sides of the exposed portion, which will reduce the accumulation of impurities. - Page 13 Multi-wedge Belt Tension Adjusting When you use the treadmill for a long time, the multi-wedge belt becomes loose because of the abrasion, then you have to do some appropriate adjustment to facilitate the safe use. Judgment: the feeling of running with the occasional pause phenomenon, which indicating that the treadmill belt or multi-wedge belt are a little loose and further affirmation need to be made.
- Page 14 Fitness Experts will build customized plans of each customer based on their equipment and age/health. We keep all your data in one place- on the cultsport app so that it can be referenced by you, your Coach or medical practitioners.
