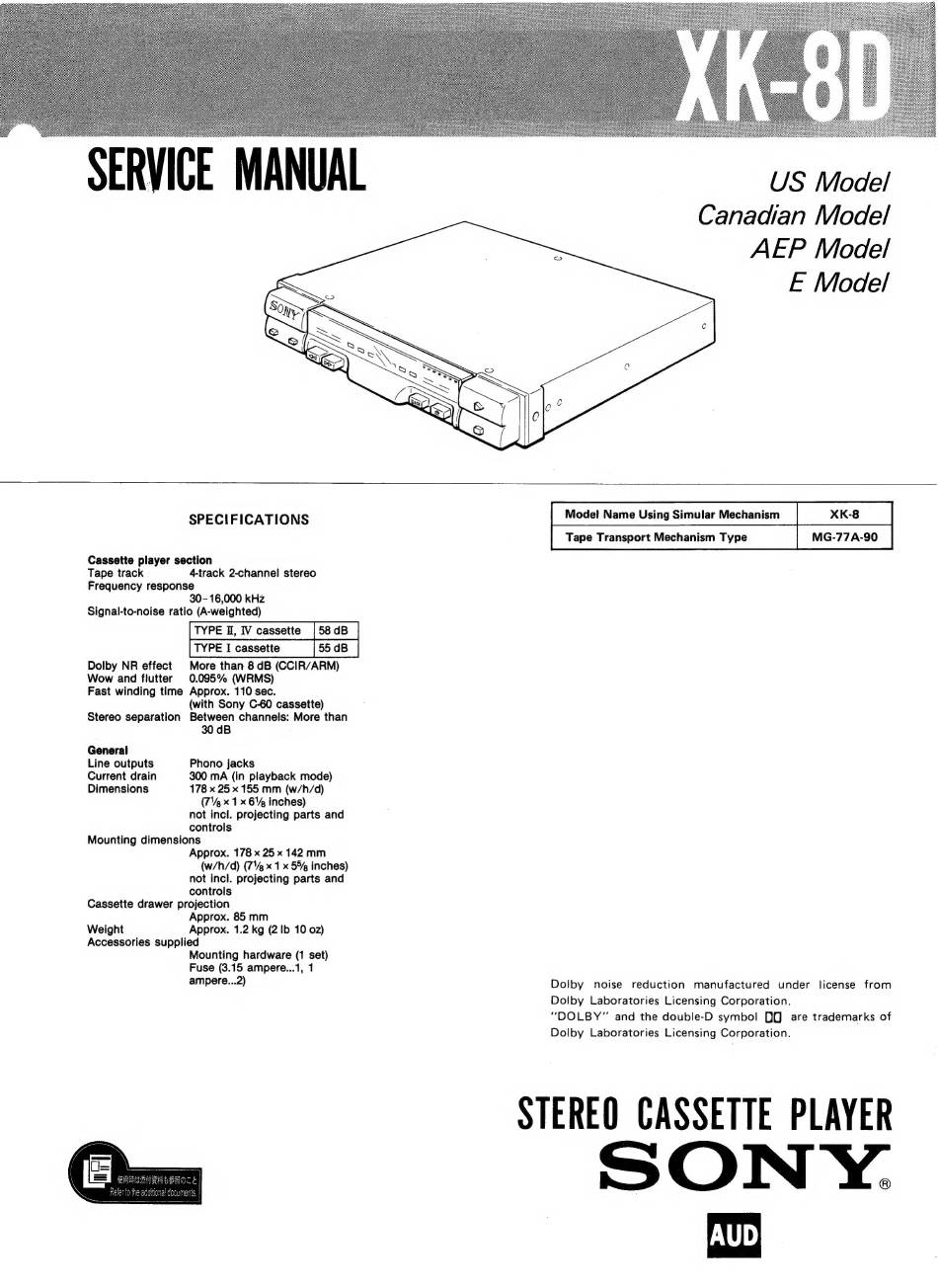

Sony XK-8D Service Manual

US Model
Canadian Model
AEP Model
E Model
SPECIFICATIONS
Cassette player section
Tape track 4-track 2-channel stereo
Frequency response
30- 16,000 kHz
Signal-to-noise ratio (A-weighted)
TYPE I, IV cassette
TYPE I cassette /55dB |
Dolby NR effect More than 8 dB (CCIR/ARM)
Wow and flutter 0.095% (WRMS)
Fast winding time Approx. 110 sec.
(with Sony C-60 cassette)
Stereo separation Between channels: More than
30 dB
General
Line outputs Phono jacks
Current drain 300 mA (in playback mode)
Dimensions 178 x 25 x 155 mm (w/h/d)
(7% x 1 x 6% inches)
not inci. projecting parts and
controls
Mounting dimensions
Approx. 178 x 25 x 142 mm
(w/h/d) (71% x 1 x 5% inches)
not incl. projecting parts and
controls
Cassette drawer projection
Approx. 85 mm
Weight Approx. 1.2 kg (2 Ib 10 oz)
Accessories supplied
Mounting hardware (1 set)
Fuse (3.15 ampere...1, 1
ampere...2)
A A Bt
Refer f0 the acd
Model Name Using Simular Mechanism | xKke |
Tape Transport Mechanism Type MG-77A-90
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol 9 are trademarks of
Dolby Laboratories Licensing Corporation.
