TM
INSTALLATION AND OPERATING GUIDE
HIGH CAPACITY SYSTEMS
MODELS: EZ010-HC, EZ017-HC, EZ025-HC

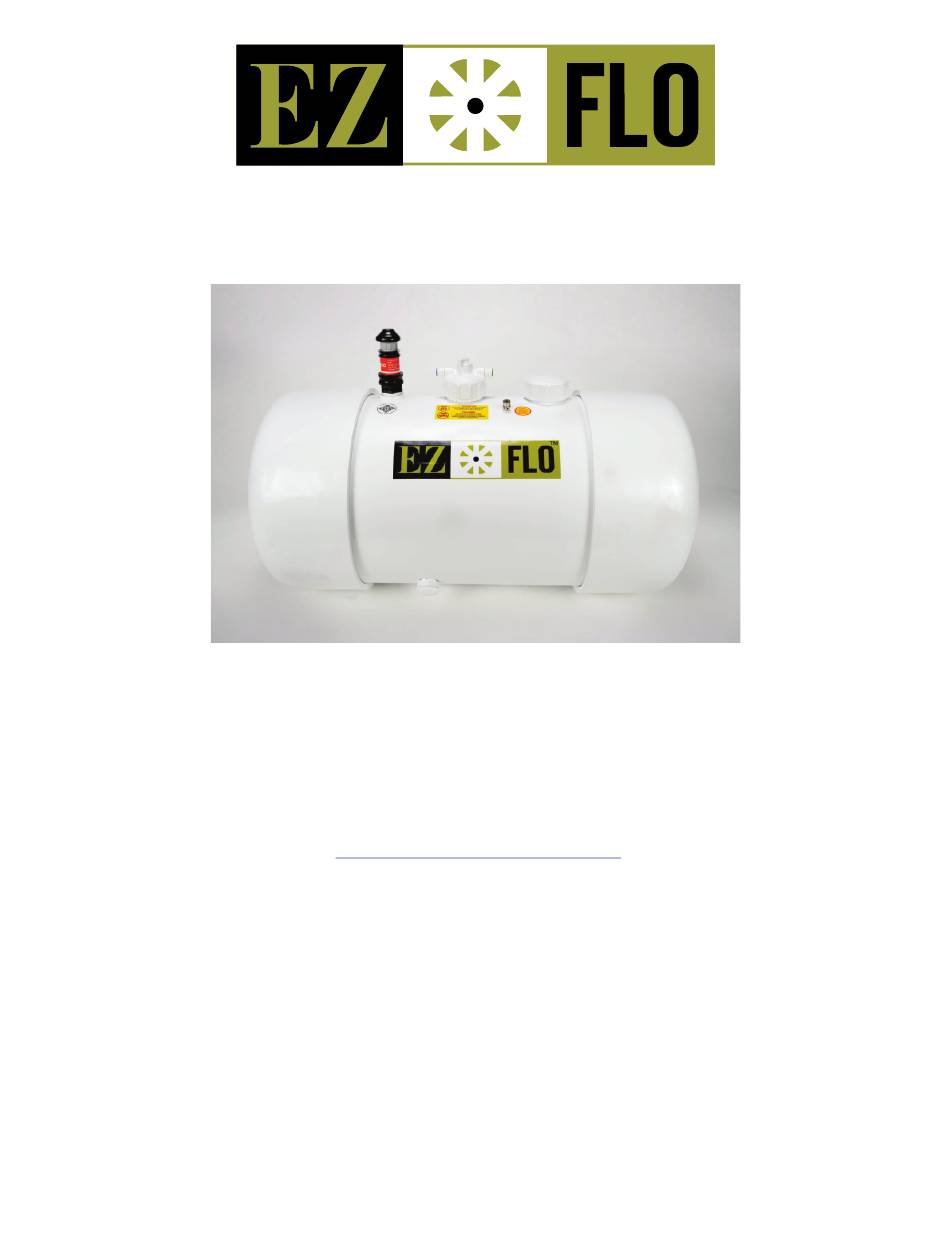

(EZ025-HC PICTURED)
For an overview of the EZ-FLO System
Installation & operation:
www.ezfloinjection.com/videos/
* IMPORTANT *
READ INSTRUCTIONS BEFORE INSTALLING THE SYSTEM
TO INSURE PROPER INSTALLATION
● Do not connect to an irrigation system that is not protected by an approved
back flow prevention device
● Use only with non-hazardous products
● Minimize exposure to direct sunlight to maximize service life
● Do not install if water hammer is present
● Do not install if pressure exceeds 80 PSI
TM
© 2024, EZ-FLO Injection Systems
Advertisement
Related Manuals for EZ FLO EZ010-HC
Summary of Contents for EZ FLO EZ010-HC
- Page 1 INSTALLATION AND OPERATING GUIDE HIGH CAPACITY SYSTEMS MODELS: EZ010-HC, EZ017-HC, EZ025-HC (EZ025-HC PICTURED) For an overview of the EZ-FLO System Installation & operation: www.ezfloinjection.com/videos/ * IMPORTANT * READ INSTRUCTIONS BEFORE INSTALLING THE SYSTEM TO INSURE PROPER INSTALLATION ● Do not connect to an irrigation system that is not protected by an approved back flow prevention device ●...
- Page 2 TANK CAP # CAP-MBT FILL CAP BLUE GREEN # CAP-FILL # PCG # PCB TANK AIR VENT CAP Fitting # APF # TNK-HC AIR VENT Agitation Valve # DT-AV O-RING O-RING # LOR # LOR Dip Tubes # DT-SET PRESSURE RELIEF VALVE # TNK-PRV Agitation Fitting...
-
Page 3: Top View
CAP Tubing Fittings: Insert & Release Top View Side View FAST SLOW The EZ-FLO system uses push connect fittings to connect the clear and black 1/4” tubing to the cap. 1/4” Tubing To Insert: Step 1. Insert the end of the tubing into the appropriate side (Clear to Green/Out and Press Tubing Black to Blue/In) by pressing into the... -
Page 4: System Installation
ystem Installation Typical installation The EZ-FLO Mainline Injection Systems are normally installed in a valve box, connected to the main line of the irrigation system after the back flow preventer. This will allow the system to inject to any irrigation zone valve located after the installation point. One unit will feed both drip and sprinkler zones automatically adjusting for pressure and flow. - Page 5 Main Line Connection Step 2 - Shut of water and relieve pressure SHUT OFF WATER You can use the valve on the back flow prevention device (pictured) or shut off RELIEVE PRESSURE BY your water main. OPENING A ZONE VALVE Step 3 - Cut out a section of pipe slightly larger than the cut out length of the coupling.
- Page 6 Connect Cap to Irrigation System Step 6 Green Blue Connection Connection Turn shut off valves to the off position (shown) Turn water on at back flow preventer Water In - Blue Connection Connect blue connector to water IN connection by pressing the black tubing into the blue fitting Fertilizer Out - Green Connection Connect green connector to fertilizer OUT...
- Page 7 Remove fill cap and pour fertilizer directly into tank through the opening and then top off with water until all air is gone from the tank. If your fertilizer is not colored, add blue or green dye. Model Tank Size Maximum Capacity EZ010-HC 10.0 Gallon 75 lbs dry or 10.0 gal liquid EZ017-HC 17.5 Gallon 150 lbs dry or 17.5 gal liquid...
- Page 8 Connector Calibration - Coupling Ball Valve The CBV connection must be calibrated to the flow rate of your irrigation system. If the irrigation system is higher flow, primarily composed of spray heads or larger drip irrigation zones, adjustment to the CBV may not be required. The EZ-FLO system must be full of fertilizer which provides a color that can be used to indicate flow through the clear line.
- Page 9 Set Flow Adjustment Step 10 - Set the flow rate by turning the adjustment knob to the proper setting. Slow Setting - is used for normal and most common setting in regions with high watering requirements such as hot dry climates or sandy soils. #1 Setting - is used for normal maintenance in regions with more moderate climates and moderate watering schedules where soils have good moisture retention.
- Page 10 How much product to put into the tank: Refer to the product label and tank capacity from page 6. Additional information is on our website. What fertilizer can I use: Almost any liquid or water soluble powder product. Do not use dry broadcast fertilizers.
- Page 11 Agitation Valve Operation (Optional) When using fully concentrated water soluble powders, it is recommended to have the Agitation Valve ON. In the ON position, the agitation continues AGITATION VALVE to stir and dissolve concentrated product at the bottom. Significant dilution of the solution does not occur until the powder has fully dissolved.
- Page 12 Quick Refill Guide On Position Off Position Step 1 - Turn off the water using the Shut Off Valves, both valves must be closed REMOVE Step 2 - Open drain plug & remove fill cap FILL CAP CAUTION: the system is under pressure, open slowly to allow for the pressure to safely vent Rotate to the left...
