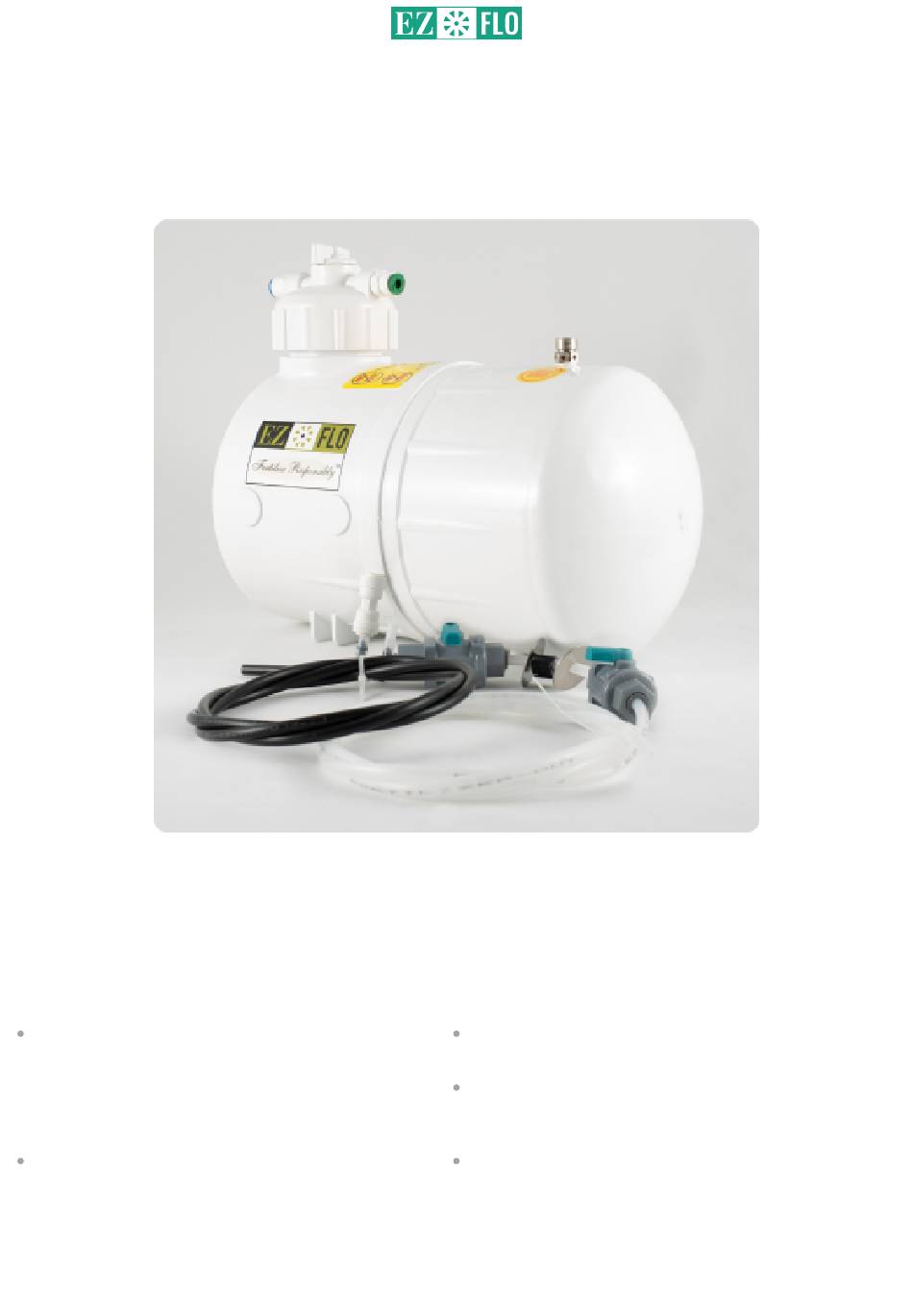

Installation and operating guide
READ INSTRUCTIONS BEFORE INSTALLING THE SYSTEM
Do not connect to an irrigation system
that is not protected by an approved
back flow prevention device
Do not install if the pressure exceeds
600kPa
TM
© 2020, EZ-FLO Fertilizing Systems
mainline system
* IMPORTANT *
TO INSURE PROPER INSTALLATION
www.ezflo.com.au
Use only with non-hazardous products
Minimize exposure to direct sunlight to
maximize service life
Protect against freezing to avoid tank
fracture
Advertisement
Related Manuals for EZ FLO EZ001
Summary of Contents for EZ FLO EZ001
- Page 1 Installation and operating guide mainline system * IMPORTANT * READ INSTRUCTIONS BEFORE INSTALLING THE SYSTEM TO INSURE PROPER INSTALLATION Do not connect to an irrigation system Use only with non-hazardous products that is not protected by an approved Minimize exposure to direct sunlight to back flow prevention device maximize service life Do not install if the pressure exceeds...
- Page 2 Tank assembly & parts list Tank Cap # CAP-MBT Green connector Blue connector # PCG # PCB Cap O-RING Cap Fitting # LOR # APF Relief Valve # TNK - PRV (not on EZFL01) can be interchanged with liquid adapter Dip Tubes # DT - SET Agitation Fitting...
- Page 3 Cap Tubing Fittings: Insert and Release The EZ-FLO system uses push connect fittings to connect the clear and black 1/4” tubing to the cap FAST SLOW I I N N O O U U T T Top View Side View To Insert To Remove Insert the end of the tubing into the...
-
Page 4: System Installation
System Installation The system is normally installed in a valve box, connected to the main line of the irrigation system after the back flow preventer and before the sprinkler valves. One unit will feed both drip and sprinkler zones without changing any connections or nozzles. - Page 5 Main Line Connection Sold separately Ball Valve Coupling Flow F L O W Cutout length Cut out a section of pipe Slightly larger than the cut out length of the coupling. Glue in coupling with flow pipe arrow pointing in the direction of the water flow Cutout length...
- Page 6 Fill Tank with Product The EZ-FLO system can be filled with the majority of liquid or water soluble products. If in doubt email us info@ezflo.com.au Fill the tank based on the product’s coverage recommendations Fertiliser typical Coverage Rates: Liquid 1 litre per 200 m every 4 to 6 weeks Powder 1 Kg per 200 m...
- Page 7 Connect Cap to Irrigation System Shut off valves in the off position Turn water on at back flow preventer Connect blue connector to water in connection by presenting the black tubing into the blue fitting Bleed air from tank by slightly opening the shut off vlve on the black line until air is purged, then close Connect green connector to the green fertiliser out connection on cap by pressing the clear tubing into the green fertiliser out side of the cap and open...
- Page 8 Connect Callibration - Coupling Ball Valve The CBV connection must be calibrated to the flow rate of your irrigation system. If the irrigation system is higher flow, primarily compsed of spray heads or larger drip irrigation zones, adjustment to the CBV may not be required.
- Page 9 Connect Callibration - Coupling Ball Valve Set flow adjustment Set the flow rate by adjusting the adjustment knob to the proper setting. Slow Setting - is used for normal and most common setting in regions with high watering requirements such as hot dry climates or sandy soils. #1 Setting - is used for normal maintenance in regions with more moderate climates and moderate watering schedules where soils have good moisture retention.
-
Page 10: Frequently Asked Questions
Frequently Asked Questions How much product to put into the tank? Refer to the product label and tank capacity. The system feeds very slowly and it is difficult to over fertilise when using the system properly. Typical rates are 1 litre of liquid per 200 m of landscape per month and 1 Kg of dry powder fertilizer per 200 m of landscape per month. - Page 11 Frequently Asked Questions Will I over fertilise? No. When the unit is set on the maintenance (slow) setting it feeds in small amounts. It applies less fertiliser over the same period of time than applying in large amounts once every 6 weeks. Will the system clog drip irrigation? No.
- Page 12 Quick Refill Guide Turn off the water using the shut off valves, both valves must be closed On Position Off Position Off Off Disconnect tubing from both sides Collet Pull tubing Press Collet Hold pressure Unscrew cap & pour out water or open drain valve (EZO10-FX) The systen will be full of fresh water when fertiliser is gone.
