INSTALLATION AND OPERATING GUIDE
Please not e t hat m odels m ay not appear as shown due t o
cont inued im provem ent and addit ion of new syst em s
PLEASE READ INSTRUCTIONS AND VERIFY PARTS
•
Do not connect to an irrigation system that is not protected by an approved
back flow prevention device such as a pressure vacuum breaker or
reduced pressure zone back flow preventer.
•
Do not operate if pressure exceeds 700 kPa
•
Follow all local plumbing codes
•
Use only with non-hazardous products
•
Minimize exposure to direct sunlight to maximize service life
•
Protect against impact from foreign objects
All EZ-FLO systems have been specifically designed and engineered to be installed by
a professional irrigation or landscape contractor. Improper installation or use could
cause risk of water contamination due to back flow or tank rupture. Failure to follow all
safety instructions and warnings could result in serious bodily injury. Improper
installation or use of the system voids all warranties.
( I n st a lle r - Ple a se le a v e t h is w it h pr ope r t y ow n e r )

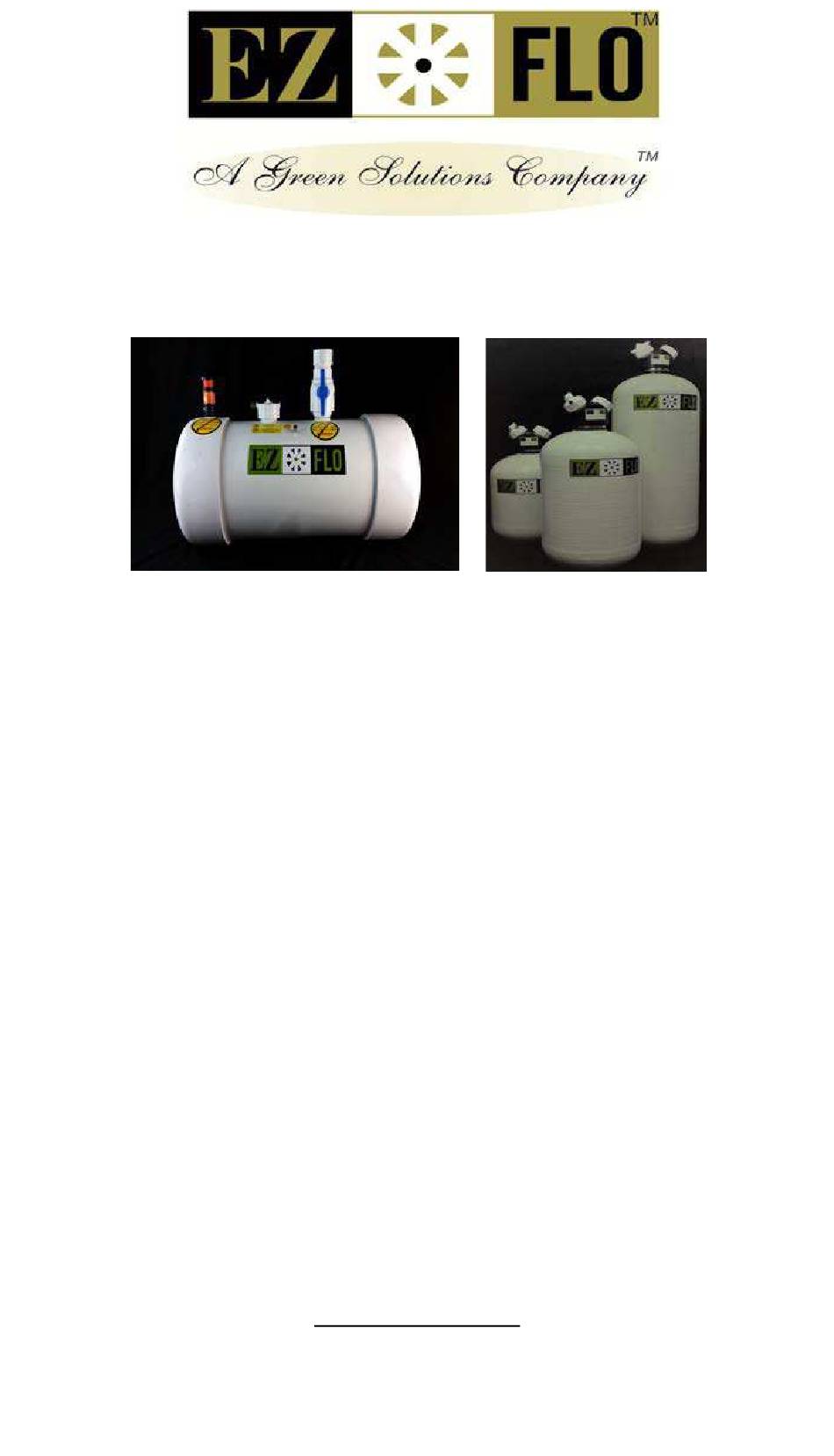

Fertilizing Systems
Fertilize Responsibly
HC SYSTEMS
Horizont al PVC
* IMPORTANT *
BEFORE INSTALLING THE SYSTEM.
FOR ASSI STANCE
CALL 0 7 - 4 7 7 8 0 1 8 0
OR VI SI T OUR W EBSI TE AT
w w w .e zflo.com .a u
© 2 0 1 8 , EZ- FLO Fe r t ilizin g Syst e m s
TM
Vert ical Fibreglass
( for HCV 825 kPa)
Advertisement
Table of Contents
Related Manuals for EZ FLO EZ010HC
Summary of Contents for EZ FLO EZ010HC
- Page 1 • Protect against impact from foreign objects All EZ-FLO systems have been specifically designed and engineered to be installed by a professional irrigation or landscape contractor. Improper installation or use could cause risk of water contamination due to back flow or tank rupture. Failure to follow all safety instructions and warnings could result in serious bodily injury.
- Page 2 Part # BYP, not fitted with MBT cap 1.25 meter- 6mm clear tubing 1.25 meter - 6mm black tubing part # CT5 part # BT5 Use EZ-FLO components only. © 2 0 1 8 , EZ- FLO Fe r t ilizin g Sy st e m s...
- Page 3 TOP VIEW Water Flow To sprinklers To subsurface Valve Box EZ-FLO Unit Valve Box Step 1 - Locate the installation point. Connection must be made after an approved back flow prevention device. It is preferable to have the tank cap above the installation point in the sprinkler line if possible but it is not required for efficient operation.
- Page 4 ATTACH BLACK TUBI N G TO BLUE FI TTI N G, CLEAR TUBI N G TO GREEN FI TTI N G AN D SECURE W I TH TUBI N G CLAM PS BLUE GREEN FLOW © 2018, EZ-FLO Fertilizing Systems www.ezflo.com.au...
- Page 5 Connect System to Irrigation Lines Step 6 - Connect tubing to tank cap by removing the blue and green connector nuts from the bypass fitting by turning them in a counter clockwise direction. (Attach bypass fitting to tubing for later use). Connect the blue connector nut to the water in side of the tank cap.
- Page 6 Step 7 - Fill tank with fertiliser. (For detailed instructions for refilling the system, please see the Quick Refill Guides.) The EZ-FLO system can be filled with any liquid or water soluble fertiliser. Before filling: Make sure the shut off valves are off. Open the fill valve on top of the tank and make sure the drain valve on the bottom of the tank is closed.
- Page 7 Of W a t e r Re quir e d To e m pt y Fe r t ilise r The following table shows the of water required to distribute the fertiliser from the EZ-FLO High Capacity Systems at the various flow settings. Model EZ0 1 0...
- Page 8 How It Works Your system is now ready to operate. Each time you water, the EZ-FLO system will proportion small amounts (micro doses) of fertiliser in the irrigation water. The patented flow process evenly meters fertiliser from start to finish. Fill based on desired results.
