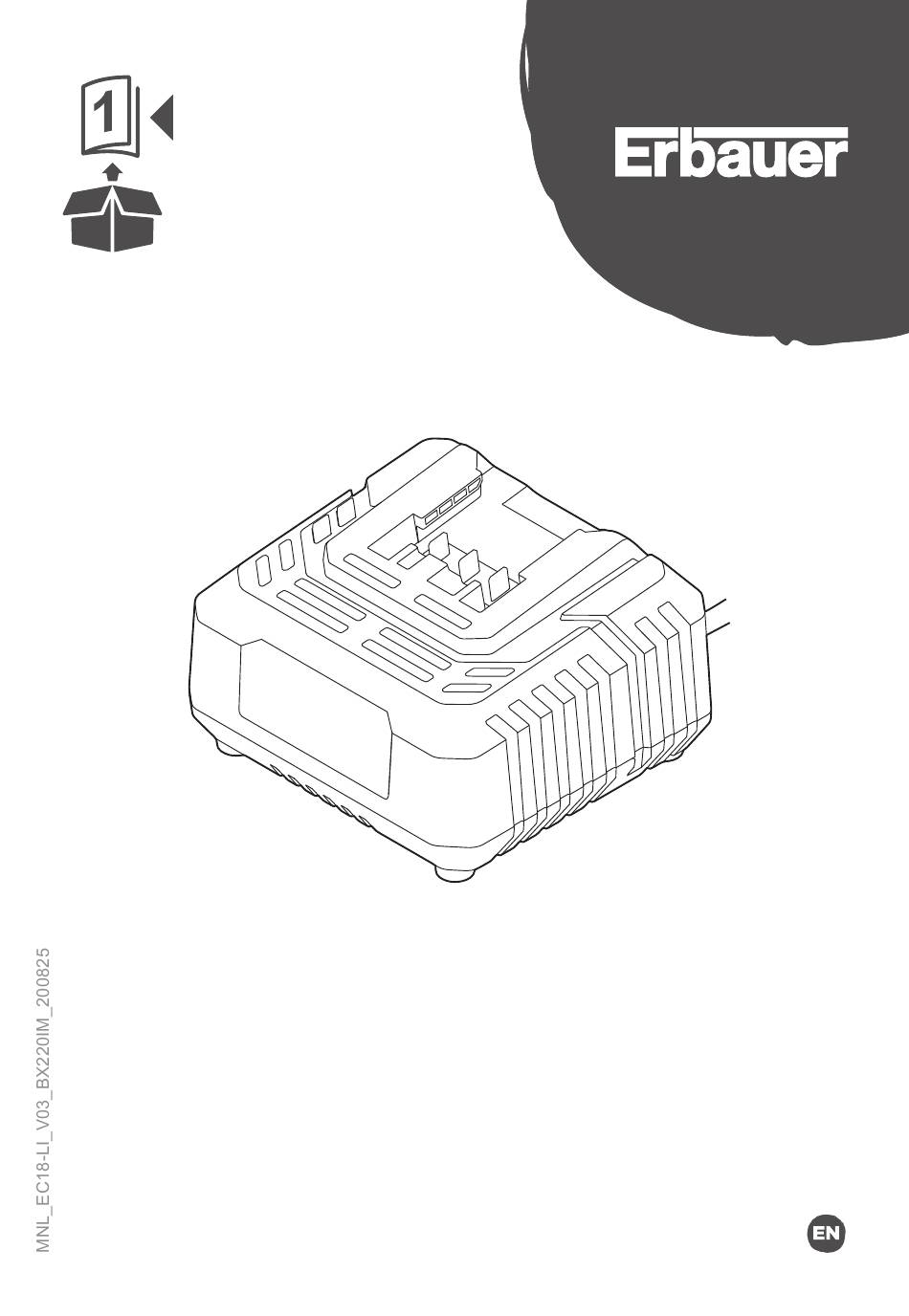

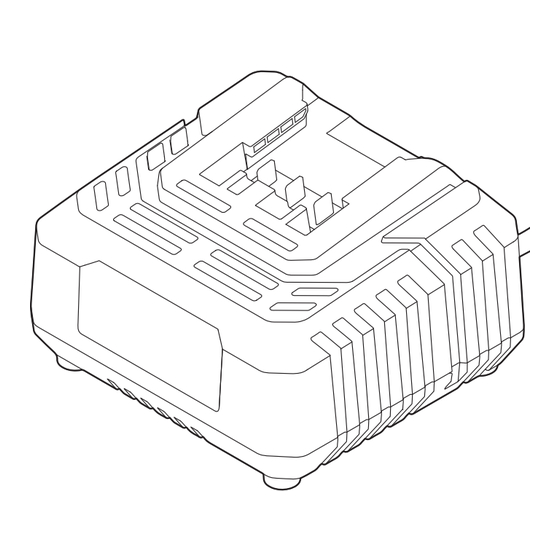

  • Page 1 EC18-Li ORIGINAL INSTRUCTIONS...
  • Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
  • Page 4 PRODUCT DESCRIPTION...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. a. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...

  • Page 6: Important Note

    i. Do not charge non-rechargeable batteries. j. Always charge the battery pack between temperatures 5 C to C. Ideal charging temperature is 18 C to 24 IMPORTANT NOTE Be sure the supply is the same as the voltage given on the rating plate for the charger.

  • Page 7: Technical Specifications

    3.6V x 5pcs 3.6V x 10pcs 3.6V x 10pcs 3.6V x 5pcs 3.6V x 10pcs Charging 60min 120min 150min 110min 205min time(Approx.) RATING LABEL EXPLANATION EC18-Li = MODEL NUMBER E = ERBAUER C = Charger 18 = 18V Li = LITHIUM...
  • Page 8 ASSEMBLY SYMBOLS Warning Class II equipment For indoor use only Read the operator’s manual Time lag fuse with rated current of 2.0A Positive terminal Negative terminal Manufacturing date code: Year of manufacturing (20yy) and week of yyWxx manufacturing (Wxx)
  • Page 9 UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property.

  • Page 10: Intended Use

    INTENDED USE This charger is solely for the charging of batteries listed in the TECHNICAL SPECIFICATION section. CHARGING YOUR BATTERY PACK (A) WARNING! The charger and battery pack are specifically designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur.

  • Page 11: Care And Maintenance

    CARE & MAINTENANCE WARNING! Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your battery charger requires no additional lubrication or maintenance. Never use water or chemical cleaners to clean your charger. Wipe clean with a dry cloth. Always store your charger in a dry place.
  • Page 12 WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 13 Amp BS1363 or BS1363/A plug and the correctly rated fuse. If in doubt, consult a qualified electrician. NOTE: If a moulded plug is fitted and must be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent...
  • Page 13 GUARANTEE At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year trade guarantee against manufacturing defects on our Erbauer power tool products.

  • Page 14: Declaration Of Conformity

    Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product: Erbauer 18V charger EC18-Li Serial number 00001-99999 Complies with the essential health and safety requirements of the following directives: 2014/35/EU Low Voltage Directive References to the following harmonized standard were made:...
  • Page 16 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline (Freephone)
  • Page 17 EBC12-Li EBFC12-Li EAN: -/5059340010809 ORIGINAL INSTRUCTIONS V80421 BX220IM MNL_Erbauer_GB_12V Charger_EBC12-Li_V8_210422.indd 1 4/22/21 6:22 PM...
  • Page 18 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_Erbauer_GB_12V Charger_EBC12-Li_V8_210422.indd 2 4/22/21 6:22 PM...
  • Page 19 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Erbauer_GB_12V Charger_EBC12-Li_V8_210422.indd 3 4/22/21 6:22 PM...
  • Page 20 Product description 114.3 mm - 4.5 inch MNL_Erbauer_GB_12V Charger_EBC12-Li_V8_210422.indd 4 4/22/21 6:22 PM...
  • Page 21 Safety instructions GENERAL SAFETY WARNINGS FOR BATTERY CHARGER WARNING! Read all safety warnings, instructions, illustrations and specifications. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 22 f) Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the charger under running water. Read the instructions provided in the chapter “Care and maintenance”. g) Before using the charger, read all the instructions and cautionary markings on the charger and battery pack.

  • Page 23: Technical Data

    > Ambient temperature range : 0 - 45 °C Rating label explanation EBC12-Li and EBFC12-Li = Model number E = Erbauer BC = Battery Charger BFC = Battery Fast Charger 12 = For 12V battery Li = Li-Ion MNL_Erbauer_GB_12V Charger_EBC12-Li_V8_210422.indd 7...
  • Page 24 Assembly Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) Millimetre Hertz Kilogram Ampere...
  • Page 25 Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage, do not use the product but contact your dealer.

  • Page 26: Charging The Battery Pack

    Intended use This charger is solely for the charging of batteries listed in the “Technical Specifications” section. For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions therein. Charging the battery pack WARNING! Do not use any charger other than that specifically provided for use with the equipment.

  • Page 27: After Use

    WARNING! Always charge the battery before storage! Please charge the battery to reach full or no less than half charge before storage. If the tool will not be used for long periods of time, charge the battery every 3-6 months. It is important to disconnect the charger from the power supply after charging finished.

  • Page 28: Maintenance

    Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1.
  • Page 29 WARNING! Do not use the product with a defective or a loose power cord! UK plug (only for UK market) If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...

  • Page 30: Troubleshooting

    Storage 1. Disconnect charger from power supply and remove the battery pack. 2. Clean the product as described above. 3. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place. 4. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C.

  • Page 31: Recycling And Disposal

    Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability.
  • Page 32 Loss of use of the goods If the product is defective, we will, within a reasonable time, repair or replace it. Rights under this guarantee are enforceable in the country in which you purchased this product. Guarantee related queries should be addressed to the store you purchased this product from.
  • Page 33 Declaration of conformity Directive 2011/65/UE relative à la limitation de l’utilisation de certaines substances dangereuses dans les équipements électriques et électroniques MNL_Erbauer_GB_12V Charger_EBC12-Li_V7_210326.indd 17 4/8/21 12:15 PM...
  • Page 34 EN 60335-1: 2012+A11: 2014+A13: 2017+A1: 2019+A14: 2019+A2: 2019 EN 60335-2-29: 2004+A2: 2010+A11: 2018 EN 62233: 2008 EN 55014-1:2017+A11: 2020 EN IEC 55014-1:2021 EN 55014-2: 2015 EN IEC 55014-2:2021 EN IEC 61000-3-2:2019 EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019 21/07/2021 3/30/21 7:04 PM...
  • Page 35 EN 60335-1: 2012+A11: 2014+A13: 2017+A1: 2019+A14: 2019+A2: 2019 EN 60335-2-29: 2004+A2: 2010+A11: 2018 EN 62233: 2008 BS EN 60335-1:2012+A2:2019 BS EN 60335-2-29:2004+A11:2018 BS EN 62233:2008 EN 55014-1:2017+A11: 2020 EN IEC 55014-1:2021 EN 55014-2: 2015 EN IEC 55014-2:2021 EN IEC 61000-3-2:2019 EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019 BS EN 55014-1:2017+A11: 2020...
  • Page 36 EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk MNL_Erbauer_GB_12V Charger_EBC12-Li_V7_210326.indd 18 4/8/21 12:15 PM...
