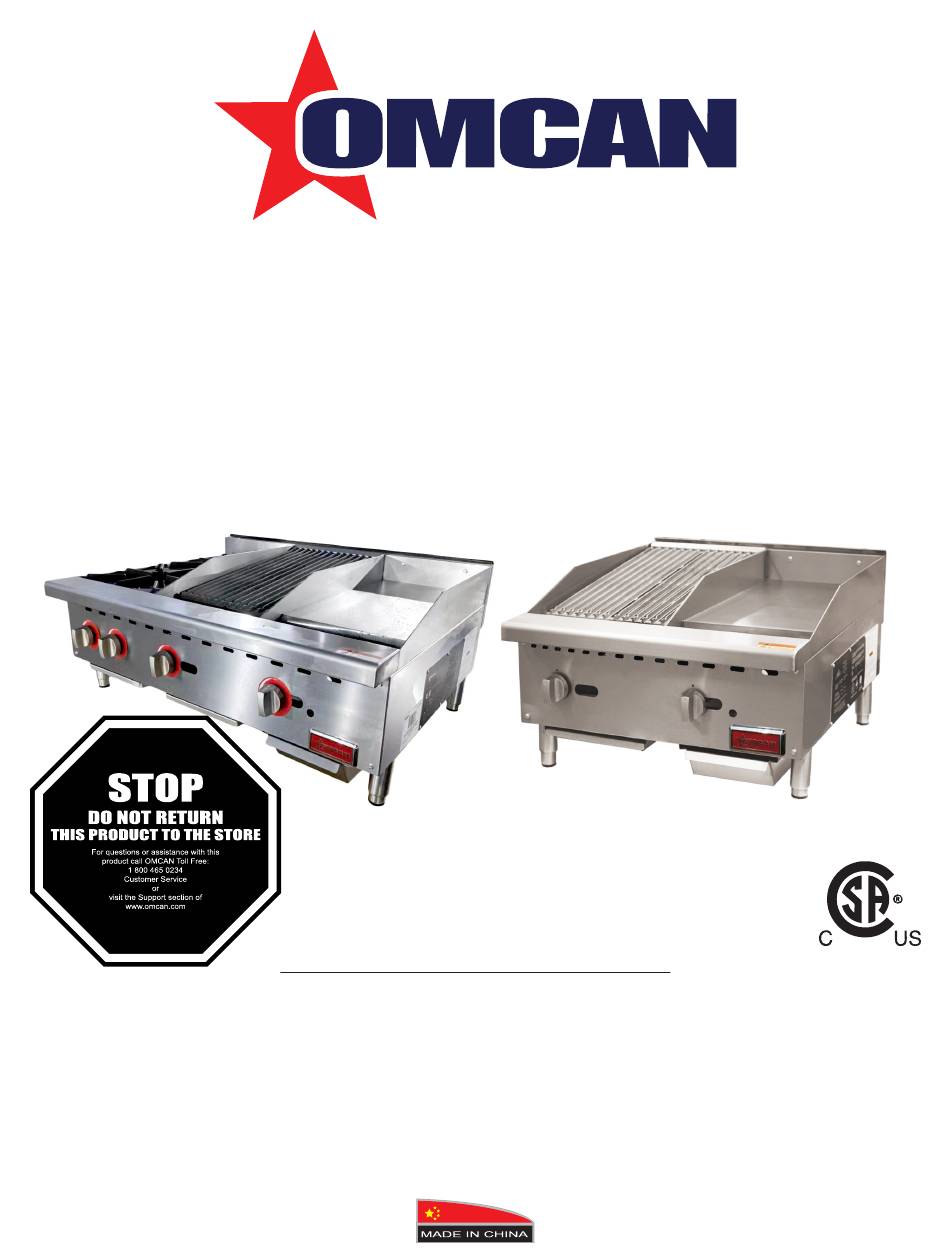

- Page 1 Combination Gas Units Model CE-CN-12H12C12G, 12C12G, 12C24G, 24C24G Item 48086, 48295, 48296, 48297 Instruction Manual Revised - 06/14/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CE-CN-12H12C12G / Model CE-CN-12C12G Model CE-CN-12C24G / Model CE-CN-24C24G Section Page General Information --------------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------------- 4 - 6 Technical Specifications ------------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------------- 6 - 10 Operation ---------------------------------------------------------------------------------------------- 10 - 13... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
-
Page 6: Technical Specifications
Safety and Warranty Please see https://omcan.com/disclaimer for complete info. WARNING: The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. -
Page 7: Installation
Installation • NEVER bypass, alter or modify this equipment in any way from its original condition. Doing so may create hazards and will void warranty. GAS AND GAS PRESSURE CAUTION: this unit is factory supplied in Natural Gas. This unit can be converted to L.P. Gas by a licensed and certified gas technician. - Page 8 Installation 2. Unscrew bolts and pilot valve, then remove manifold. 3. Replace the orifice fittings into the valve. Note: unit number on side of orifice fittings. 4. Replace the front panel and knobs. 5. Before installing the included convertible regulator, unscrew the octagon cap. You can read (NAT) on the plastic insert attached to the head of the cap;...
- Page 9 Installation CONNECTIONS Equipment Gas Type Orifice Number Natural Gas Cooktop Propane Natural Gas Hot plate Propane Natural Gas Charbroiler Propane UNPACKING Unpack the cooktop immediately after receipt. Remove the gas cooktop from the crate; remove all packaging on and surrounding the unit and be certain to remove all protective plastics and residues from all surfaces. Make sure that all parts provided including the L.P.
-
Page 10: Operation
Installation 9. Do not obstruct the flow of combustion and ventilation air, under the unit by the legs or behind the unit by the flue. Do not place objects between the bottom of the unit and the counter top. 10. There must be adequate clearance for removal of the front panel. All major parts except the burners are removable thru the front if the gas line is disconnected. - Page 11 Operation • Never leave the cooktop on overnight. • Do not operate any equipment with a damaged or leaking gas line, ignitor or valves or if the unit is dropped or damaged in any manner. Call for service. • The use of attachments not recommended or sold by the manufacturer may cause fire, injury or even death.
- Page 12 Operation adjustment is virtually infinite between “ON” and “OFF”. The space between the legs at the bottom admits combustion air. DO NOT BLOCK THIS SPACE. All burners are lit from constantly burning pilots. Turning the valve to the desired flame height is all that is required to put the unit in service. Do not permit fans to blow directly at the unit.
-
Page 13: Maintenance
Operation settings are to be used, adjoining areas should be set at progressively higher temperatures using the lowest temperatures on the outside burners. A uniform and systematic approach to the loading of the unit will produce the most consistent product results. NOTE: when the charbroiler is first heated, it will smoke until oil used in manufacturing, preservation and dust from storage and shipping are burned off. - Page 14 Maintenance RECOMMENDED CLEANING It takes very little time and effort to keep the cooktop attractive and performing at top efficiency. Wait until the cooktop is cool after the unit has been turned off. Please follow the cleaning steps below: Parts Required Action Frequency Body, back and side splashes.
-
Page 15: Troubleshooting
Maintenance Hotplate - top grates. Use a clean cloth and a non-abrasive cleaner to Daily. clean the stainless steel body of the hot plate. Wipe the polished areas with a soft cloth. Griddle - plate. Clean surface with wire brush or metal spatula. After each use, weekly. - Page 16 Troubleshooting Flame is too high or too low. Adjustment knob is turned up or Adjust flame with control knob. down. Pilot light not staying lit. Flame is too low. Adjust pilot light flame height. Pilot tube clogged. Replace pilot tube. Call for service. Strong smell of gas in cooking Main gas line leak.
-
Page 17: Parts Breakdown
Parts Breakdown Model CE-CN-12H12C12G 48086... - Page 18 Parts Breakdown Model CE-CN-12H12C12G 48086 Item No. Description Position Item No. Description Position Item No. Description Position Rear Burner for Hotplate for AI780 Nameplate for 48086 AP484 Gas Valve for 48086 AI797 48086 Stainless Steel Radiant - AI779 Knob for 48086 AP485 Pressure Test Stud for 48086 AI782...
- Page 19 Parts Breakdown Model CE-CN-12C12G 48295...
- Page 20 Parts Breakdown Model CE-CN-12C12G 48295 Item No. Description Position Item No. Description Position Item No. Description Position AI781 Grate - Charbroiler for 48295 AI767 Manual Gas Valve for 48295 AQ879 Grease Drawer for 48295 AP490 Short Radiant for 48295 AI583...
- Page 21 Parts Breakdown Model CE-CN-12C24G 48296...
- Page 22 Parts Breakdown Model CE-CN-12C24G 48296 Item No. Description Position Item No. Description Position Item No. Description Position AP490 Short Radiant for 48296 AI767 Manual Gas Valve for 48296 AI756 Orifice-TP Griddle Nat for 48296 Stainless Steel Radiant - Orifice-Griddle Manual- L for AI782 AI583 Pilot Valve for 48296...
- Page 23 Parts Breakdown Model CE-CN-24C24G 48297...
- Page 24 Parts Breakdown Model CE-CN-24C24G 48297 Item No. Description Position Item No. Description Position Item No. Description Position AP490 Short Radiant for 48297 AI767 Manual Gas Valve for 48297 AI756 Orifice-TP Griddle Nat for 48297 Stainless Steel Radiant - Orifice-Griddle Manual- L for AI782 AI583 Pilot Valve for 48297...
-
Page 25: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
