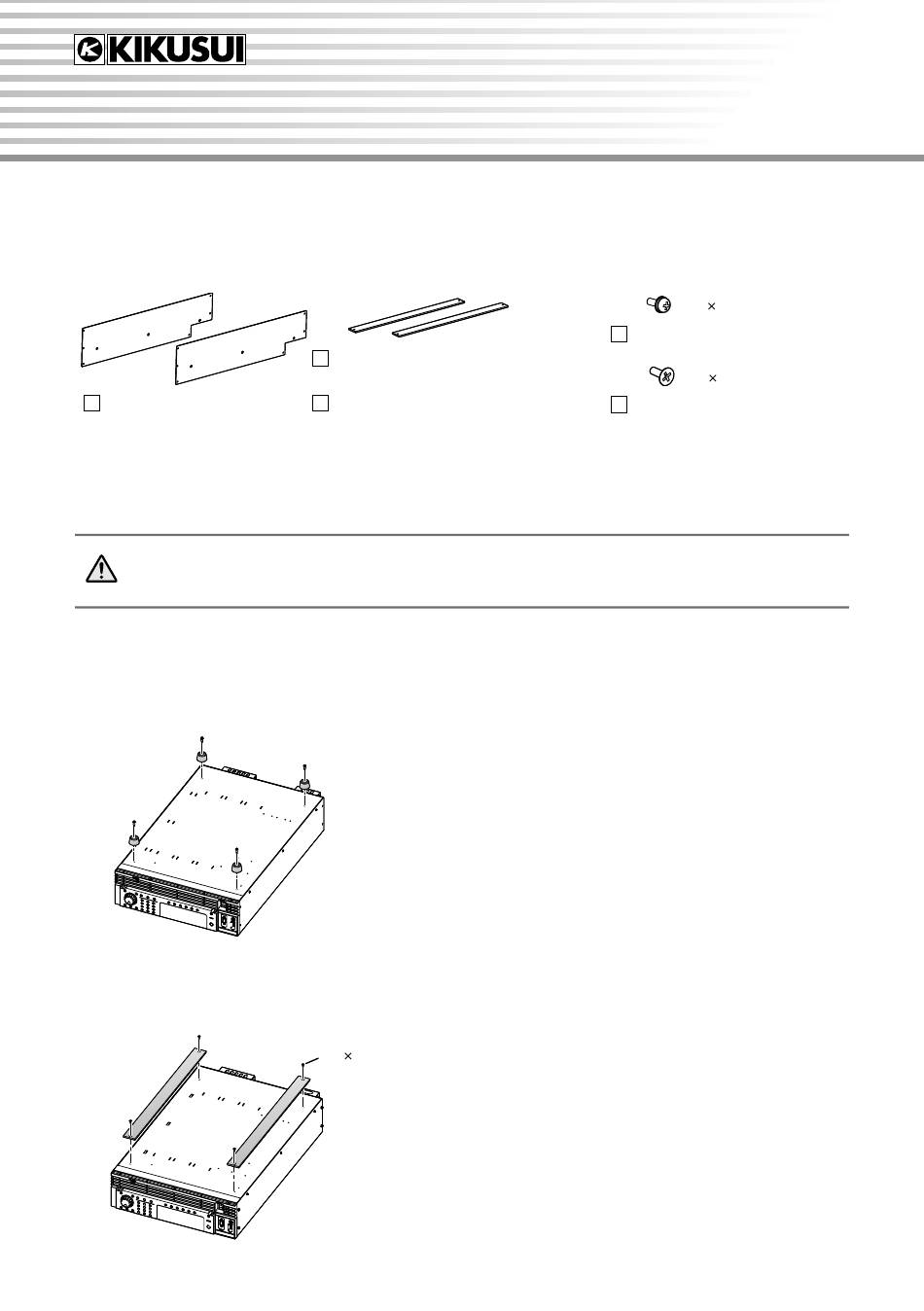

Userʼs Manual

OP02-OT03-PCR-WEA

This product is a mount kit for mounting and fixing the PCR3000WEA2 on the 6 kVA single-phase / three-phase

output transformer OT03-PCR-WEA. When you receive the product, check that the parts are properly included and

not damaged. If any of the unit and accessories are damaged or missing, contact your Kikusui agent or distributor.

Parts Configuration

Mount brackets (2 pcs.)

Safety Precautions

Ignoring the indications below and handling the product incorrectly may result in slight injury or damage to the

product and other property.

• Due to the heavy weight, work with two or more people when lifting the PCR3000WEA2.

CAUTION

• Be careful not to pinch your hands while working.

Installation Procedure

Remove the screws holding the feet at the bottom of the PCR3000WEA2, and remove the feet.

Attach the plastic plate for mounting with the plastic plate screws.

Part No. Z1-010-064, I0051401

Sep 2022

OT03-PCR-WEA 3KVA MOUNT KIT

Plastic plates for mounting (2 sheets)

Userʼs Manual (1 copy: this manual)

M4 10 (4 locations)

M4 10 built-in screw

Bracket screws (12 pcs.)

M4 10 flat head screw

Plastic plate screws (4 pcs.)

Need help?

Do you have a question about the OP02-OT03-PCR-WEA and is the answer not in the manual?

Page 1 This product is a mount kit for mounting and fixing the PCR3000WEA2 on the 6 kVA single-phase / three-phase output transformer OT03-PCR-WEA. When you receive the product, check that the parts are properly included and not damaged. If any of the unit and accessories are damaged or missing, contact your Kikusui agent or distributor. Parts Configuration M4 10 built-in screw Bracket screws (12 pcs.)
Page 2 The OP01-OT03-PCR-WEA also comes with a short bar for the L terminal that can be used with the OUTPUT terminal block of the OT03-PCR-WEA for single- phase output. For information, contact your Kikusui agent or distributor. KIKUSUI ELECTRONICS CORP.
