Kikusui KRC Series Instruction Manual

Instruction Manual

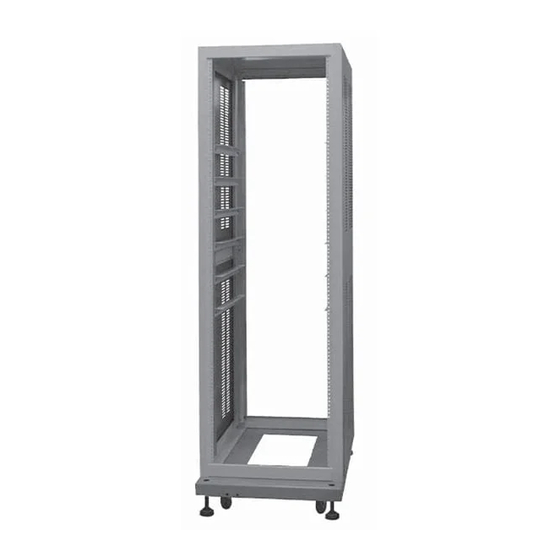

Cabinet Rack KRC Series
The KRC series Cabinet rack comply with JIS standard or EIA standard.
Support angles are included.
CAUTION
• The maximum allowable load of each pair of support angles is 70 kg.
For heavier loads, use support angles for heavy weight (optional
items).
• When assigning devices to be accommodated in the rack, fix the rack
with the levelers to prevent the it from moving, and then assign
devices so that the gravity center of overall rack is made as low as
possible.
• The rack may fall by the earthquake. Take measures to prevent the fall.
• When moving the rack, raise the levelers up to the highest position.
The rack may fall at a difference in level.
• To hoist the rack, raise it by means of the eyebolts (optional items).

Specifications

452
570
Model H H1 D
KRC363L 1835 1600 950
KRC273L 1435 1200 950
KRC363 1835 1600 800
KRC273 1435 1200 800
D1
Base
Leveler
D Unit: mm
D1 Model H H1 D
800 KRC1603L 1835 1600 950
800 KRC1203L 1435 1200 950
650 KRC1603 1835 1600 800
650 KRC1203 1435 1200 800
I0022501
Model
Jun 2020
KRC363L
KRC273L
KRC363
KRC273
Approx. 300
KRC1603
KRC1603L
KRC1203
KRC1203L

Options

Model
OP01-KRC Support angle
OP02-KRC Support angle for heavy weight Use this to load to a pair of support angle over 70 kg.
OP03-KRC Base hold angle
OP04-KRC Eyebolt

Using Optional Items

■ OP01-KRC/OP02-KRC
Turn the surface marked a circle of the plate nut to you. Insert the nut into the
pillar and turn it 90 degree clockwise. Check that the nut does not fall down from
the pillar and fix the support angle with the screw.
OP01-KRC
D1
No.
800
800
1 Support rail
650
2 Plate nut
650
3 Screw M5x16 (Double sems)
Allowable
No. of panels Weight
max. load
kg JIS EIA kg
36 95
27 85
36 90
27 75
90
32
95
75
24
85
Description
For add-in (the same as provided support angle)
Use this to fix the rack to the floor.
Use this to hoist the rack.
OP02-KRC
2
1
3
Description
OP01-KRC
Support
Leveler
angle
12 (6 in pairs)
10 (5 in pairs)
12 (6 in pairs)
10 (5 in pairs)
4
12 (6 in pairs)
10 (5 in pairs)
Remarks
2
1
3
Quantity
OP02-KRC
2 2
4 8
4 8
