  • Page 1 User Manual LCH-EBONY-90BL...

  • Page 2: From The Manufacturer

    From the Manufacturer Please read this user manual carefully before attempting to operate the appliance and keep it in a safe place for future reference. This appliance and its packaging are produced by processes that minimize waste and respect the environment. Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner.

  • Page 3: Cleaning, Maintenance & Service

    Cleaning, Maintenance & Service It is very important to clean and maintain the grease filters regularly (at least once monthly) to improve its efficiency in eliminating heat and contaminated air in the kitchen. Heavy oil deposits is a fire hazard. Hood surface should be cleaned with soft cloth and non-corrosive detergent.

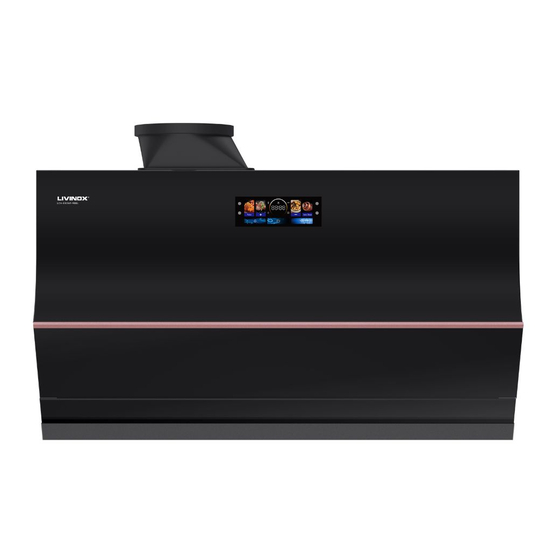

  • Page 4 1) Side Suction Range Hood LCH-EBONY-90BL 4. Instructions for use A. Touch control(LCH-EBONY-90BL) Press Turbo,The indicator blinks three times,its indicator light is on and the fan is at booster/highest speed (LED Screen shows “F4”). After running for 3 minutes, it will automatically switch to high speed state.

  • Page 5: Cleaning And Maintenance

    Press +,Press + once,The indicator blinks three times, the fan is working at low speed (LED screen shows”F1”). Press C second ,The indicator blinks three times, the fan runs at mid speed (LED screen shows “F2”). Press C third,The indicator blinks three times ,the fan runs at high speed (LED Screen shows “F3”). Press C fourth,The indicator blinks three times ,The display shows the time,enter non-working state.
  • Page 6 5. Installation Use suitable bolts to mount the appliance on a secure surface. The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. When the range hood is located above a gas appliance, this distance shall be at least 65 cm.
  • Page 7 If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “Installation (Vent outside)”. Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

  • Page 8: For The Installer

    FOR THE INSTALLER 6. Safety Information 1. Electrical connection must be in accordance with the local standards and laws. 2. To ensure that the electrical supply in compliance with the appliance setting, otherwise, do not connect. 3. To ensure the power supply cord is free from any heat source or sharp objects. 4.

  • Page 9: Troubleshooting

    7. Trouble shooting Problems Possible Cause Action Check that the main switch is turned Not function No power supply Check that the plug is connected Aluminum grease filters clogged Clean the filters and replace when dry Poor airflow Charcoal grease filters clogged Replace charcoal filters with new sets Motor running but no Butterfly valve jammed Contact technician...
