VOVO VB-6000SE, VB-6100SR, VB-4000SE, VB-4100SR - Bidet Manual

To Our Customers

• For your own safety, please read this manual carefully.
• Please refer to this manual if you have any questions while using the product.
• We are not responsible for damages caused by misuse.
• Product warranty is included in this manual. Please do not lose it.

VB-4000SE (elongated)
VB-4100SR (round)
Posterior wash / Feminine wash /
Turbo wash / Dry / Deodorization / UV LED Sterilization

Name of Parts

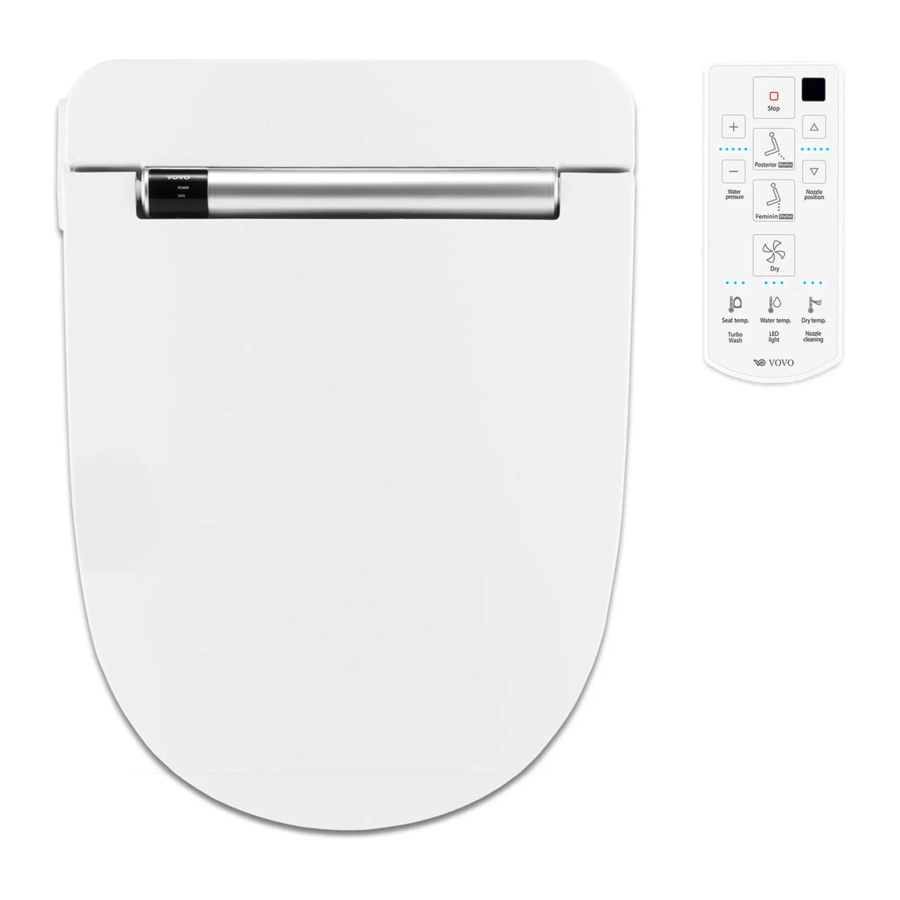

VB-6000SE (elongated)
VB-6100SR (round)

VB-4000SE (elongated)
VB-4100SR (round)

Installation Method

Please plug in the power only after completing all installation and opening the water valve.

Accessories

Before Installation

• Read the instructions carefully before installing.
• Plug in only after complete installation then supply water.
• The new hose sets supplied with the appliance are to be used and that old hose-sets should not be reused.

Installation Procedure
*Do not use heavy duty tools and excessive power when tightening the connections.
*Do not use Teflon tape when connecting the hose to the water supply valve and the bidet unit.

1. How to install bidet seat on general tank toilet.
   • Turn the water supply valve clockwise to lock, and separate the toilet hose using a spanner


2. Connect the T-valve to the toilet and toilet hose


• Place the T-Connector between the toilet and the toilet hose

3. Remove the existing toilet seat.


• Unfasten the nut and remove the toilet seat.
• Save the old toilet seat lid and nuts for reinstallation later.
• Place the template on the toilet after removing the toilet seat cover.

4. Install the base bracket.


• Place the fixing bolt on the base bracket.
• Align the front of the bidet body and the front of the toilet before fastening the nuts.

5. Install the bidet and secure the remote control holder

• Slide the bidet and install it.

• Secure the remote control holder to the wall with screws or peel off the double-sided tape sticker on the back of the remote

6. Connect the hose and turn on the water


• Connect the hose to the T-Connector and the bidet.
• Turn the water supply valve counterclockwise to allow water flow
• Connect the outlet.

Operation Check

1. Turn the water supply valve counterclockwise to check for water leakage.
2. Connect the power plug into electrical outlet.
3. Pressing the Posterior button will make water flow into the water tank.
4. Check the functions of ter each use.

Additional Installation Guide

Adjustment method using gap plate between pottery(toilet) and seat

When there is a gap between the inside of the seat and pottery (toilet)

1. Place the catch plate as shown

2. Combine the seat by pushing the plate

3. Minimize the gap between the bidet and the tank, and install the seat backward


When there is a gap between the outside of the seat and pottery (toilet)

1. Place the catch plate as shown

2. Combine the seat by pushing the plate

3. Install the seat as forward as possible


How to Use

VB-6000SE (elongated)
VB-6100SR (round)
VB-4000SE (elongated)
VB-4100SR (round)

Stop
Press the Stop button when yo want to stop the function.
Dry
Use this after using wash function

• Wipe off the water with toilet pap before using dry function for pleasant using.

Water Pressure, Nozzle Position

• Can control in 5 levels of water pressure and nozzle position.

Water Pressure and Nozzle Position Adjustment

• Water pressure and nozzle position can be adjusted in 5 levels.


UV LEDLight (Option)

• UV LED eliminates germs and bacterias as well as sterilizing the bowl.
• When UV LED function is activated, UV LED will turn on and it will automatically turn Auto off while seated.

* Power save *
In power saving mode, if left unused

• In power saving mode, if left unused for more than 1 hour, both the water temperature and seat temperature are reduced by one level compared to their current settings.
• When the product is used again, the temperature will return to the original temperature setting.

Auto Deodorization (VB-4000SE,VB-4100SR)

• The default product setting is always ON on automatic deodorization.
• While someone sits on the seat (detects by the seat sensor) auto deodorization turns on and activates. If a person stands up after using the bidet (if it is not detected by the seat sensor), it will be turned off after I minute of operation.

Posterior/Rhythm

• Press Posterior/Rhythm button, to operate washing function.
• Press Posterior/Rhythm button again during using this function. Rhythm(Pulsating) function will work.

Feminine/Rhythm

• Press Feminine/Rhythm button, to operate Feminine function.
• Press Feminine/Rhythm button again when during using this function, Rhythm(pu sating) function will work

Turbo Wash

• Press Turbo button, Turbo wash will operate.
• It starts from the lowest water pressure

Water Temperature, Seat Temperature
Dry Temperature

Nozzle Cleaning

• You can clean the nozzle by pressing the Nozzle cleaning button.

Side Panel

Maintenance

* Unplug the power code when cleaning the filter.

Clean the Filter

1. Turn the water supply valve clockwise to stop water supply.
2. Release the bidet hose of the main body to separate the filter.
3. Clean the filter with toothbrush or like object.
4. Tighten the bidet hose on to the main body and turn the water supply valve counterclockwise to supply water.

Clean the Nozzle.
Only the nozzle will extend out without spraying water.

• Use a soft brush or toothbrush to clean.
  * Do not pull out or push the nozzle forcibly. It may cause breakage or damage.

Troubleshooting

When you think the product is out of order, refer to the following for immediate measures.

Heated Seat

Posterior Wash, Feminine Wash, Turbo Wash Function

Remote Control

Drying

Deodorization (VB-4000SE, VB-4100SR)

Power Supply

Seat Sensor

Power Saving

Specifications

Item \ Model No	VB-6000SE VB-6100SR	VB-4000SE VB-4100SR
Rated Power Supply	AC 230V-, 50/60hz
Rated Power Consumption	1200W
Water Supply System	Direct connection with tap water
Water Pressure	Min: 1.0kgf/cm2(0.1Mpa, 1 4psi), Max: 7.5kgf/cm2(0.75Mpa, 1 05psi)
Waterproof Rating	IPX4
Power Cord Length	1.2M (4ft)
Water Heating	Tank Reservoir
Posterior Wash	Maximum 800cc
Feminine Wash	Maximum 800cc
Wash Turbo Wash Unit	Maximum 800cc
Water Temperature	36 ºC(97 ºF), 38 ºC(100 ºF), 40 ºC(104 ºF)
Heater Capacity	1100W
Safety Device	Thermal cutoff, Thermo Switch, Water Level Sensor
Heated Seat Temperature Seat	36 ºC(97 ºF), 38 ºC (100 ºF),40 ºC(104 ºF)
Heater Capacity	Maximum 55W
Safety Device	Thermal Cutoff, Temperature Sensor, Bimetal
Dry Warm Air Temperature	Room temperature - maximum 45ºC(113ºF)
Heater Capacity	Maximum 250W
Deodorization	-	Automatic deodorizer
Lighting	UV LED Light (Option)
Inlet Water Temperature	5ºC-35ºC (41 ºF -95 ºF)
Ambient Temperature	5ºC-35ºC (41 ºF -95 ºF)
Country of Origin	Made in Korea
Dimension	535 x 390 x 130 mm (elongated) 505 x 390 x 130 mm (round)	535 x 390 x 130 mm (elongated) 505 x 390 x 130 mm (round)
Net Weight (Gross Weight)	3.7kg 3.2kg	3.7kg 3.2kg

Safety Precautions

• Follow all safety precautions in this manual for your safety.
•
  In order to avoid hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

* The following terms are used in this manual to indicate hazards of varying degree of severity.

	Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
	Indicates a dangerous situation where the user could suffer death or serious injury if this product is used incorrectly.
Prohibited	Indicates prohibited.
Observe strictly	Indicates to observe the following precautions before using this product.

• Do not open the product to repair or remodel.


• Do not exceed the rated voltage of the outlet or the distributor.
• Connecting too many plugs will exceed the rated power and can cause fire by overheat.


• Do not touch the power cord with wet hands.


• Do not splash water or detergent on the main body or power plug.


• When cleaning, use mild detergent and soft cloth.
• Do not use the following. <household detergent, benzene, paint thinner, nylon scrubber>


Make sure the product is properly grounded.

• If the product is not grounded, it can cause electric short or electric leakage.
• For grounding work, consult an electric technician nearby.

One of the following persons needs to have someone to turn off the temperature controller of the seat and warm air blower when using heated seat.

• Children or elderly persons who can not control the temperature appropriately by himself.
• Patients or sick persons who can not move her or his body by oneself.
• Persons on medication that make them drowsy, and fatigued and intoxicated persons.

* Do not use this product other than for purposes listed in this manual.

• Do not step on, shock, or place heavy objects on the seat, cover, or main body.


Customer Support
Support@vovoeu.com

Please register your product at vovo-eu.com/pages/product-registration to receive full warranty benefit.
