Raz -AT Z300S User And Dealer Manual

Mobile shower commode chairs
Hide thumbs

Advertisement

Table of Contents

Mobile Shower
Commode Chairs
Raz-AT
(Z300S)
User and Dealer
Manual
BASIC UDI-DI:
628758RAZDESIGNINC2004V9
RTD036ENr04 Rev. Date: 2024-03-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raz-AT Z300S and is the answer not in the manual?

Questions and answers

Related Manuals for Raz Raz-AT Z300S

Summary of Contents for Raz Raz-AT Z300S

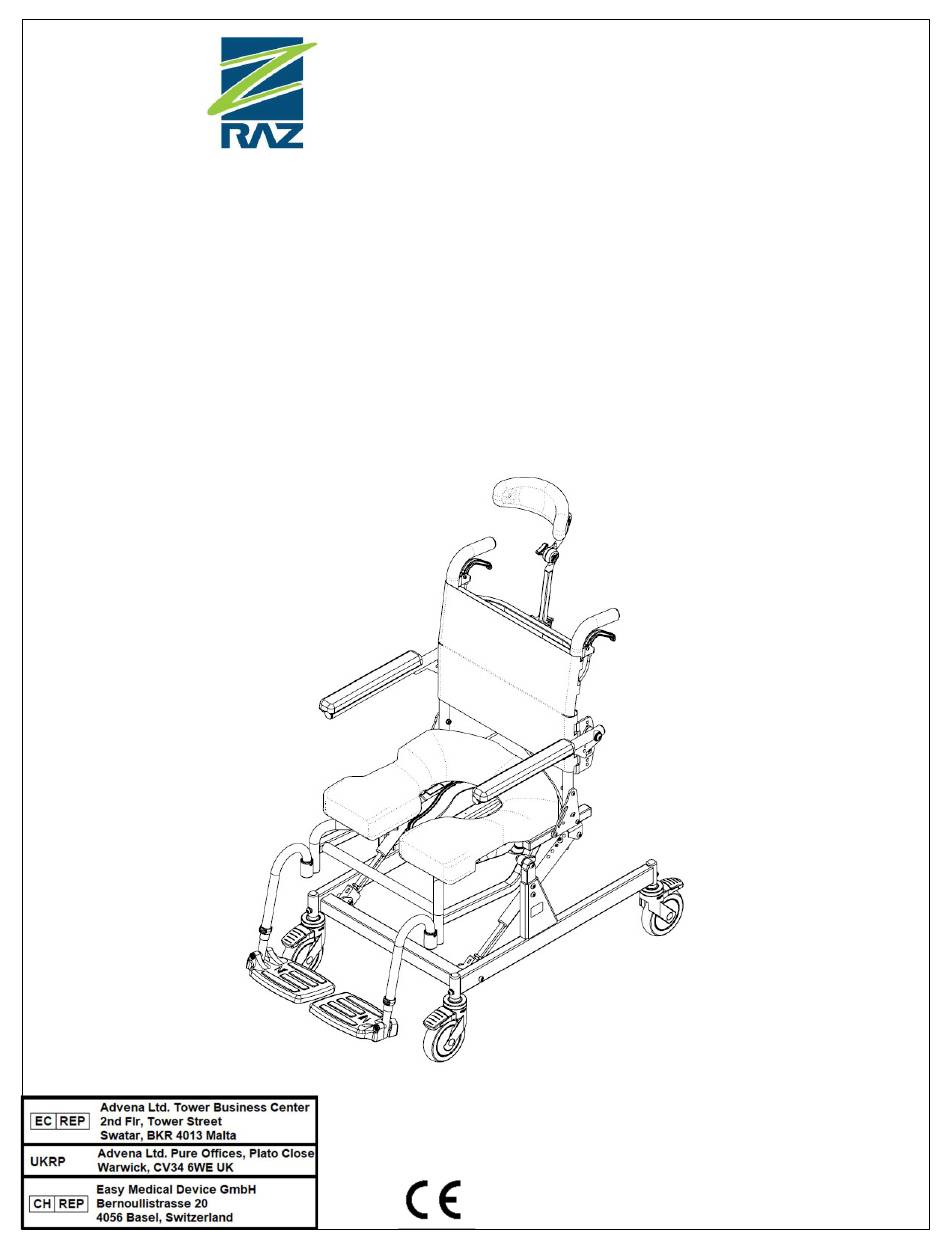

  • Page 1 Mobile Shower Commode Chairs Raz-AT (Z300S) User and Dealer Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RTD036ENr04 Rev. Date: 2024-03-22...
  • Page 2 SAFETY Failure to comply may cause injury or It is important that the Raz Mobile Shower Commode Chair be properly assembled and that all adjustments be made carefully. Please ensure that the user(s), dealer(s) and attendant(s) have read this manual and thoroughly understood the safe operation of the Raz Shower Chair.
  • Page 3 BEFORE IT IS OCCUPIED BY ANY USER AT ANY TIME. Immersion The Raz Shower Chair is not designed to be used as a pool chair. Do not immerse the shower chair in whole or in part, in water or any other liquid.

  • Page 4: Tilt Function

    NEVER leave the user unattended in a Raz-AT. The Raz-AT is NOT intended for use as a transportation device or a long-term seating system. IMPORTANT ! USERS SHOULD NEVER BE LEFT UNATTENDED IN A RAZ MOBILE SHOWER COMMODE CHAIR.
  • Page 5 PRODUCTS WITHIN THE RAZ FAMILY ARE NON-STERILE, REUSABLE, NON-INVASIVE, AND NON-IMPLANTABLE. THE RAZ-AT IS INTENDED TO BE USED BY PEOPLE WITH MOBILITY IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, TOILETING, OR PERSONAL HYGIENE. TYPICAL USERS...
  • Page 6 LABELS OR SYMBOLS ON THE PRODUCT PRODUCT RAZ-AT DESIGNATION MANUFACTURER ADDRESS AUTHORIZED UKRP REPRESENTATIVE DETAIL PRODUCT IDENTIFER (PI) RAT-XXXXXX UDI-DI 628758003007 MEDICAL DEVICE EUROPEAN CONFORMITY DATE OF MANUFACTURE MAXIMUM USER WEIGHT READ USER MANUAL RTD036ENr04 Rev. Date: 2024-03-22...
  • Page 7 FRONT SEAT BRACKET INSTALLATION (IF APPLICABLE) TORONTO, CANADA We have improved the design of our front seat brackets. Similar to the original design in its provision of stability, this design also provides improved durability and functionality. Please refer to the above image for the installation procedure. Note: Please install the Phillips Pan Head Screws by hand.
  • Page 8 1.0 GENERAL INFORMATION ....................................9 1.1 Raz-AT Mobile Shower Commode Chair Overview ............................. 9 1.2 Raz-AT Mobile Shower Commode Chair Specifications ..........................9 2.0 Raz-AT Assembly: INTENDED FOR DEALER USE ONLY ........................10 2.1 Caster Installation ......................................10 2.2 Backrest Installation ......................................10 2.3 Raz Seat Installation ......................................
  • Page 9 1.0 GENERAL INFORMATION 1.1 Raz-AT Mobile Shower Commode Chair Overview 1.2 Raz-AT Mobile Shower Commode Chair Specifications Raz-AT SPECIFICATIONS WEIGHT CAPACITY 185 kg / 407 lbs FRAME WIDTH 46 cm (18”) (seat and back frame) OVERALL WIDTH 57 cm (22.5”) OVERALL LENGTH 100 cm (39.5”)

  • Page 10: Backrest Installation

    2.0 Raz-AT Assembly: INTENDED FOR DEALER USE ONLY IMPORTANT NOTE: Use of power drivers is not recommended to prevent cold-welding of fasteners TIPS: - Apply a lubricant (liquid detergent, soap, lip balm, wax, etc.) to the threads prior to tightening the fasteners to reduce binding.
  • Page 11 2.3 Raz Seat Installation 1. Ensure that the front brackets are in the open position. To open the front brackets, simply squeeze the tabs or the hinged portion of the bracket. 2. Slide the rear of the seat over the rear cross tubes as the front of the seat is lowered onto the frame.
  • Page 12 3.0 ADJUSTMENTS: INTENDED FOR DEALER USE ONLY IMPORTANT ! ADJUSTMENTS SHOULD NEVER BE ATTEMPTED WITH THE USER IN THE CHAIR. 3.1 Backrest Adjustment 3.1.1 Backrest Angle Adjustment Tools required: 5/32” hex key, 7/16” wrench 1. Loosen and remove the locknuts and curved washers inside both vertical backrest frame tubes.

  • Page 13: Seat Height Adjustment

    3.2.2 Seat Height Adjustment To change the seat-to-floor height on a Raz-AT model, the seat frame is raised or lowered from the wheel base at the seat posts on both sides of the chair. Tools required: 6mm hex key, 13mm wrench 1.
  • Page 14 3.4.2 Armrest Angle Adjustment The armrest angle can be adjusted up 5° or down 5° if the backrest angle is adjusted from the 90° factory position. Tools required: 7/32” hex key, 9/16” wrench 1. Loosen and remove the screw, washer and locknut on the bottom of the armrest pivot plate.

  • Page 15: Use And Operation

    25” the chair can be tilted back 36°). IMPORTANT ! DO NOT ATTEMPT TO TILT A RAZ SHOWER CHAIR IF THE ATTENDANT IS PHYSICALLY INCAPABLE OF SAFELY AND SMOOTHLY OPERATING THE TILT MECHANISM WITH A USER OCCUPYING THE CHAIR. ANY ATTENDANT MUST BE FAMILIAR WITH PROPER TILTING TECHNIQUES PRIOR TO ASSISTING A USER IN THE SHOWER COMMODE.
  • Page 16 4.3 Adjustable-Tension Back Upholstery The Adjusta-Back Backrests come with an Adjustable-Tension Back Upholstery that provides trunk support for optimal positioning and comfort. The upholstery is removable for machine washing and available in the 15” (4 straps), 17” (5 straps), 20” (6 straps), and 24” (7 straps) heights in accordance to the back height selected for the chair.
  • Page 17 All seats feature the unique Ischial Pelvic Alignment System (IPAS) that provides 2” of fore and aft adjustment, locks in place for transfers and removes easily for cleaning. Optional spacers for anterior or posterior seat angle are available. All Raz chairs fit over most standard toilet bowls when the commode pan is not in place. Front...

  • Page 18: Adjustable Footrests

    4.6 Adjustable Footrests Adjustable Footrests are standard on all Raz Shower Chairs. For transfers, the footrests can be flipped up, rotated away or removed entirely. Adjustable Footrests can be extended for users with longer legs with the optional footrest extension tube, a 2”...

  • Page 19: Cleaning And Maintenance

    NOTE: When re-inserting the pan, ensure that the pan is guided into the green plastic brackets and pushed forward until it hits the stops. IMPORTANT ! A QUALIFIED RAZ DEALER SHOULD BE CONTACTED TO CHECK ALL FASTENERS, CASTER AND WHEEL LOCKS, HARDWARE, AND ALL OTHER MOVING COMPONENTS AT LEAST ONCE PER YEAR.

  • Page 20: Suggested Cleaning Products

    3. DO NOT use chlorine bleach on any Raz components. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies if there is cause for concern regarding the shower chair’s performance.

  • Page 21: Limited Warranty

    (1) year and are subject to normal wear and tear exclusions. If within such warranty period any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s discretion. This warranty does not include any labor or shipping charges incurred in replacement, part installation, or repair of any such product.
  • Page 22 7.0 CONTACTS It is important that the Raz Mobile Shower Commode Chair be properly assembled and all adjustments be made carefully. Up-to-date manuals can be downloaded from www.razdesigninc.com. For clarification of any section of this manual, contact your distributor or the manufacturer.

This manual is also suitable for:

Raz-atZ300s
