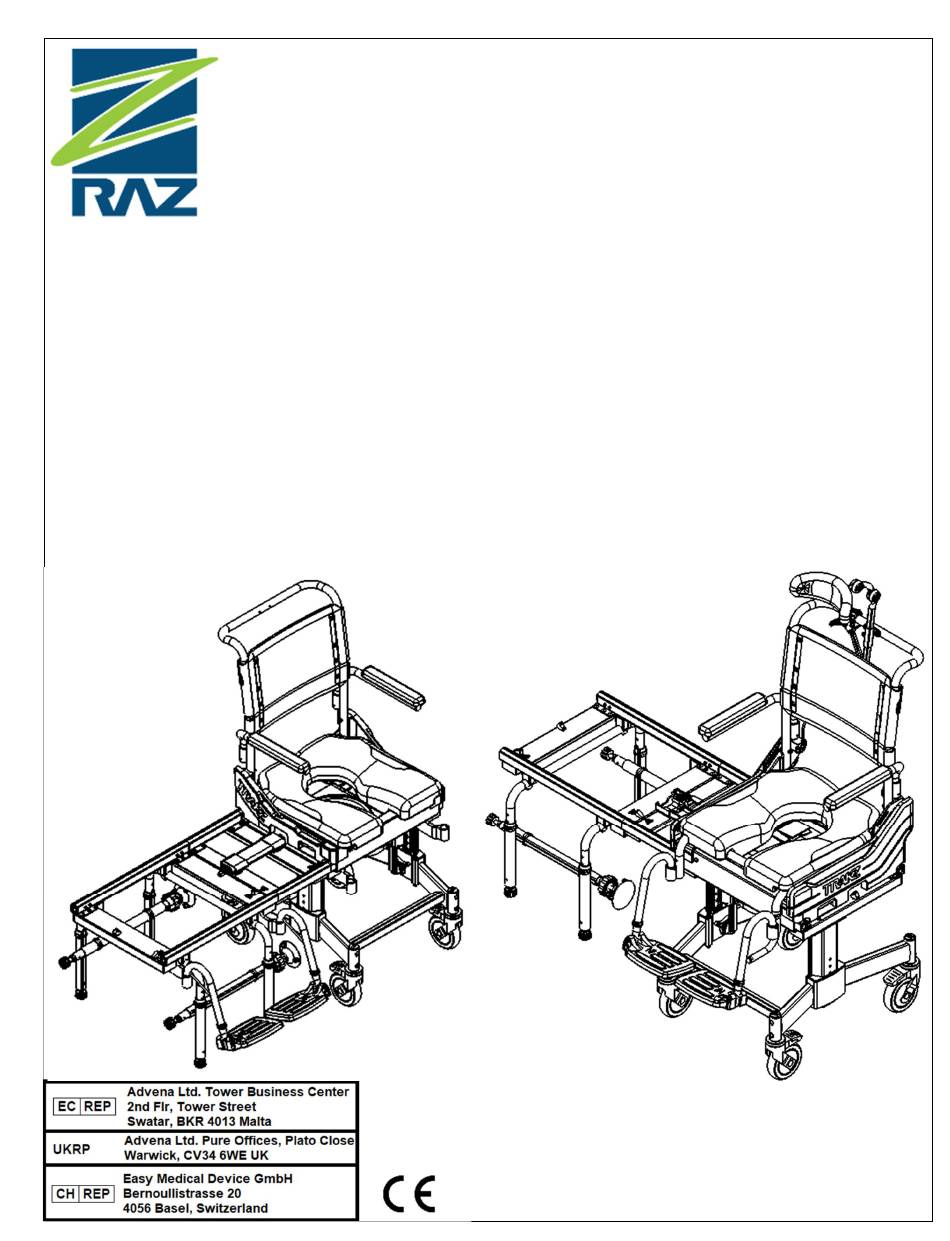

- Page 1 TUB SLIDER SYSTEMS Trakz-AP (T188) Trakz-AT (T388) User / Dealer / Distributor Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RDT091ENr00 Rev. Date: 2024-01-25...
- Page 2 SAFETY PRECAUTIONS Failure to comply may cause injury or damage! It is important that the Trakz-AP and Trakz-AT Tub Slider Systems and the patented Zbrilok™ (US Patent No. 11,819,466) system are properly assembled and that all adjustments are properly made. Please ensure that the user(s),...
- Page 3 Trakz-AP and Trakz-AT in any other manner than by an attendant. Immersion The Trakz-AP and Trakz-AT are not designed to be used as pool chairs. Do not immerse the shower chair in whole or in part, in water or any other liquid. Damage to the shower chair components may result.
- Page 4 NEVER leave the user unattended in a Trakz Tub Slider System. The Trakz-AP and Trakz-AT Tub Slider Systems are NOT intended for use as transportation devices or long-term seating systems. IMPORTANT! USERS SHOULD NEVER BE LEFT UNATTENDED IN THE Trakz-AP and Trakz-AT...
- Page 5 PURPOSES. ALL PRODUCTS WITHIN THE RAZ FAMILY ARE NON-STERILE, REUSABLE, NON-INVASIVE, AND NON-IMPLANTABLE. THE Trakz-AP and Trakz-AT IS INTENDED TO BE USED BY PEOPLE WITH MOBILITY IMPAIRMENTS, WHO MAY HAVE DIFFICULTY IN STANDING OR KEEPING THEIR BALANCE WHILE COMPLETING ACTIVITIES SUCH AS SHOWERING, TOILETING, OR PERSONAL HYGIENE.
- Page 6 LABELS OR SYMBOLS ON THE PRODUCT Trakz-AP and PRODUCT DESIGNATION Trakz-AT MANUFACTURER ADDRESS AUTHORIZED REPRESENTATIVE UKRP DETAIL PRODUCT Bases: TXXXXXX IDENTIFER (PI) Bridge: TBXXXXXXX UDI-DI AP: 628758001881 AT: 628758003885 MEDICAL DEVICE EUROPEAN CONFORMITY DATE OF MANUFACTURE MAXIMUM USER WEIGHT READ USER MANUAL RTD091ENr00 Rev.
-
Page 7: Table Of Contents
USER, DEALER and DISTRIBUTOR MANUAL – TABLE OF CONTENTS 1.0 GENERAL INFORMATION ........................8 1.1 Trakz-AP and Trakz-AT (shown below) Overview ................. 8 1.2 Trakz-AP and Trakz-AT Specifications ....................8 2.0 SET-UP (FOR DEALER / DISTRIBUTOR ONLY) ..................9 2.1 ASSEMBLY OF THE MOBILE and TUB BASES ..................9 2.1.1 Setting up the mobile base ...................... -
Page 8: General Information
1.0 GENERAL INFORMATION 1.1 Trakz-AP and Trakz-AT (shown below) Overview 1.2 Trakz-AP and Trakz-AT Specifications SPECIFICATIONS Trakz-AP Trakz-AT User Weight Capacity 160 kg (352 lbs) Back Frame Width 46 cm (18”) Overall Width (w/ std arm pads) 58.5 cm (23”) Overall Length (w/ footrests) 90.25cm (35.5”) -
Page 9: Set-Up (For Dealer / Distributor Only)
2.0 SET-UP (FOR DEALER / DISTRIBUTOR ONLY) 2.1 ASSEMBLY OF THE MOBILE and TUB BASES The basic set-up steps are: 1. Set the Mobile Base to the appropriate height (Section 2.1.1) 2. Attach the Bridge to the Mobile Base (Section 2.1.2) 3. -
Page 10: Setting Up The Bridge
2.1.2 Setting up the Bridge The Trakz Bridge incorporates the heart of the patented Zbrilok™ (US Patent No. 11,819,466) system. Zbrilok™ prevents the seat from being released from either base unless the Bridge is connected to both bases. This unique design, exclusive to Trakz, prevents accidental release of the seat and potential injury from falls. - Page 11 receivers of the Tub Base rails. The legs on the opposite side should be adjusted so that the rails are level. 5. Connect the Bridge to the tub base following similar steps to section 2.1.2. 6. Close the latch to complete the Bridge attachment.
-
Page 12: Back Support Installation
Tool required: 5mm allen key, 10mm wrench 1. Trakz-AP – Remove the screws (2 per side) from the rear of the side castings. Align the back frame into the coved features of the side castings. Attach the 4 x 35mm socket head cap screws using a 5mm allen key. -
Page 13: Tilt-Assist Handle (Trakz-At Only)
3.1 Mobility Base Configuration The base frame can be set up in either of two height ranges. 1. Upper range configuration allows for seat-to-floor height ranges of 56-66 cm (22-26”) for Trakz-AP. For Trakz-AT, seat-to-floor height ranges of 61.5-71.75 cm (24.25-28.25”). -
Page 14: Mobility Base Height Adjustment
Upper Configuration (default) Lower Configuration 3.2 Mobility Base Height Adjustment To change the seat-to-floor height on the Trakz-AP and Trakz-AT model, the seat frame is raised or lowered using the adjustment knob located on the inside of the base frame. -
Page 15: Foot Support Adjustment
3.5 Foot Support Adjustment 1. Remove plastic snap-pin from the foot support hanger tube. Hanger Tube 2. Adjust the foot support extension tube vertically to achieve the desired position. 3. Insert the snap-pin back through the foot support hanger Extension and extension tubes. -
Page 16: Molded Headrest (Trakz-At Only)
4.4 Molded Headrest (Trakz-AT Only) A Molded Headrest is included with all Raz Trakz-AT Shower Chairs and optional on the Trakz-AP. The Molded Headrest is shaped to cradle the head comfortably and is easy to clean. The Molded Headrest can be adjusted indefinitely forward and backwards within a 5”... -
Page 17: Commode Pan
(Note: When re-inserting the pan, ensure that the pan is guided into the blue plastic brackets and pushed forward until it hits the stops.) IMPORTANT! A QUALIFIED RAZ DEALER SHOULD BE CONTACTED TO CHECK ALL FASTENERS, CASTER AND WHEEL LOCKS, HARDWARE, AND ALL OTHER MOVING COMPONENTS AT LEAST ONCE PER YEAR. -
Page 18: Cleaning And Maintenance
Spray the frame and components with a multi-purpose disinfectant cleaner, scrub with a soft brush and rinse with water. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies on a continuing basis or if there is cause for concern to the shower chair’s performance. -
Page 19: Limited Warranty
(2) years from the date of purchase. All other components on the Trakz-AP and Trakz-AT are covered for a period of one (1) year and are subject to normal wear and tear exclusions. If within such warranty period any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s discretion. -
Page 20: Contacts
INCLUDING THE BACKREST, ARMREST, SEAT, BASE FRAME AND CASTERS SHOULD BE SECURED IN PLACE. IF IT IS EVER FELT THAT ANY ASPECT OF THE Trakz-AP and Trakz-AT IS IN NEED OF MAINTENANCE, CONTACT YOUR DEALER / DISTRIBUTOR. ANY PROBLEMS THAT COULD AFFECT THE SAFE USAGE OF THE CHAIR MUST BE ATTENDED TO IMMEDIATELY.
