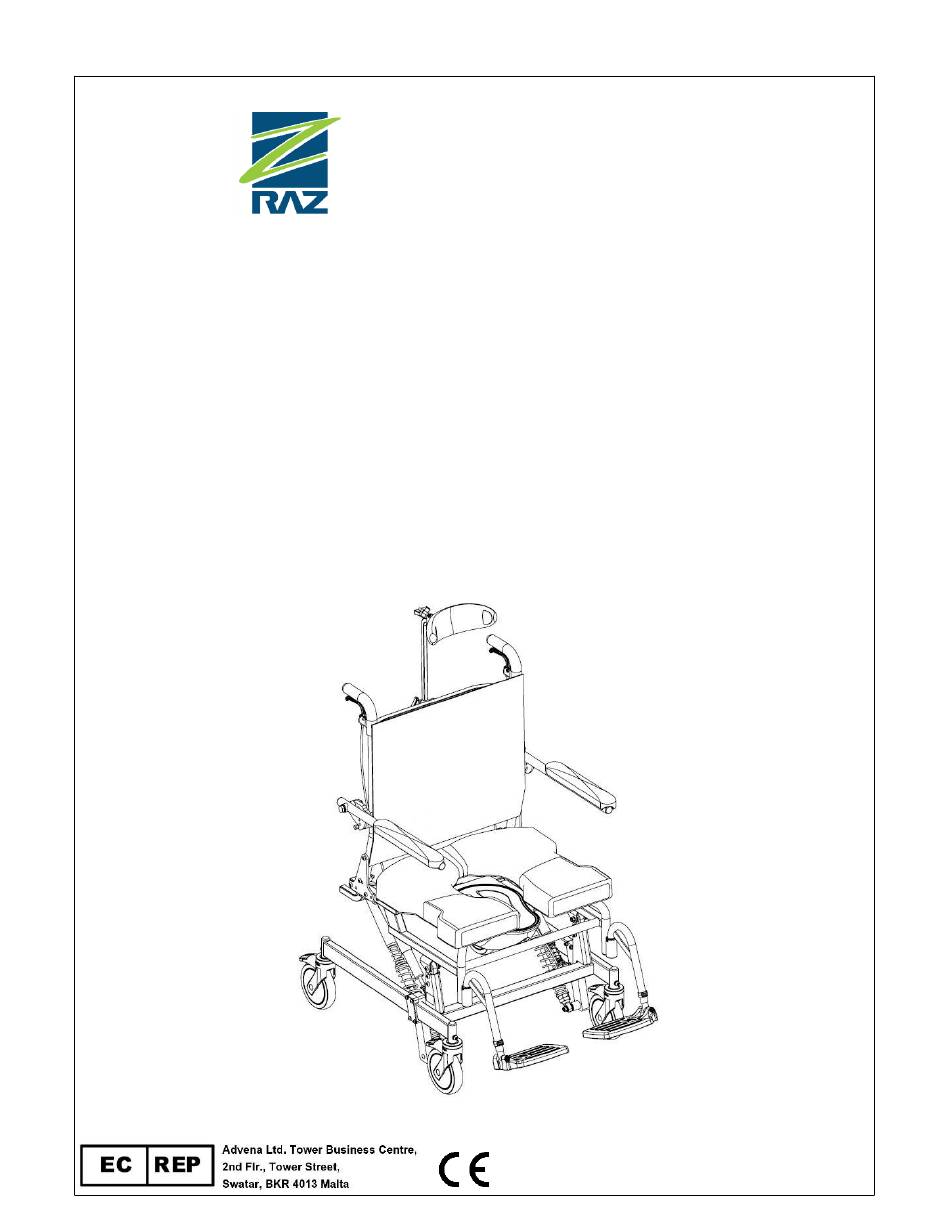

- Page 1 Mobile Shower Commode Chairs Raz-AT600 (Z360) User and Dealer Manual BASIC UDI-DI: 628758RAZDESIGNINC2004V9 RQD013ENr04 Rev.Date:2022-10-25...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Failure to comply may cause injury or damage! It is important that the Raz Mobile Shower Commode Chair be properly assembled and that all adjustments be made carefully. Please ensure that the user(s), dealer(s) and attendant(s) have read this manual and thoroughly understood the safe operation of the Raz Shower Chair. - Page 3 A qualified healthcare professional should be consulted to assist with this process. DO NOT push or pull the Raz-AT600 up or down an incline or ramp that exceeds a 1:12 grade (5° slope). DO NOT allow any user to be propelled (pushed or pulled) in a Raz-AT600 in any other manner than by an attendant.
- Page 4 NEVER leave the user unattended in a Raz-AT600. The Raz-AT600 is NOT intended for use as a transportation device or a long-term seating system. IMPORTANT ! USERS SHOULD NEVER BE LEFT UNATTENDED IN A RAZ MOBILE SHOWER COMMODE CHAIR.
- Page 5 IMPORTANT ! DO NOT LIFT A RAZ MOBILE SHOWER COMMODE CHAIR AND OCCUPANT BY THE ARMRESTS OR FOOTRESTS! IMPORTANT ! ALWAYS BE SURE THAT THE SEAT IS PROPERLY INSTALLED AND LATCHED. THE REAR HOOKS MUST BE FULLY ENGAGED AND THE FRONT BRACKETS MUST BE LATCHED AND LOCKED AROUND THE FRONT SEAT SUPPORT TUBES.
- Page 6 CAUTION !__________ RISK OF BURNING YOUR SKIN THE PRODUCT COMPONENTS CAN HEAT UP WHEN EXPOSED TO EXTERNAL SOURCES OF HEAT. • CONSIDER HEATED UP SURFACES WHEN USING THE SHOWER AND TOILET CHAIR WHEN IT IS EXPOSED TO HOT WATER • DO NOT EXPOSE THE PRODUCT TO DIRECT SUNLIGHT BEFORE USE RQD013ENr04 Rev.
- Page 7 USER & DEALER MANUAL TABLE OF CONTENTS GENERAL INFORMATION Raz-AT600 Mobile Shower Commode Chair Overview ............8 Raz-AT600 Mobile Shower Commode Chair Specifications ..........8 SET-UP: INTENDED FOR DEALER USE ONLY Caster Installation ......................... 9 Back Support Installation ...................... 9 Raz Seat Installation ......................
-
Page 8: General Information
1.0 GENERAL INFORMATION 1.1 Raz-AT600 Mobile Shower Commode Chair Overview 1.2 Raz-AT600 Mobile Shower Commode Chair Specifications SPECIFICATIONS Raz-AT600 WEIGHT CAPACITY 275 kg (605 lbs) FRAME WIDTH 22” (56 cm) (seat and back frames) 26.5” (67 cm) OVERALL WIDTH OVERALL LENGTH 39”... - Page 9 SET-UP: INTENDED FOR DEALER USE ONLY 2.1 Caster Installation The Raz-AT600 chairs are shipped with casters not installed. Please follow the instructions below for caster installation. Tool required: 6mm hex key 1. Insert caster stem into caster housing on the base frame.
- Page 10 2.3 Raz Seat Installation 1. Ensure that the front spring brackets are in the open position. To open the front brackets, squeeze to unlatch. 2. Slide the rear of the seat over the rear cross tubes as the front of the seat is lowered onto the frame. Check to make sure that the rear seat brackets hook below the cross tubes.
- Page 11 ADJUSTMENTS: INTENDED FOR DEALER USE ONLY IMPORTANT ! ADJUSTMENTS SHOULD NEVER BE ATTEMPTED WITH THE USER IN THE CHAIR. 3.1 Back Support Adjustment 3.1.1 Back Support Angle Adjustment Tools required: 6mm hex key, 13mm wrench Loosen and remove the locknuts and curved washers inside both vertical back support frame tubes.
- Page 12 3.2.2 Molded Seat Height Adjustment To change the seat-to-floor height on a Raz-AT600, the seat frame is raised or lowered from the wheel base at the seat posts on both sides of the chair. Tools required: 5mm hex key, 6mm hex key, 10mm wrench, 13mm wrench 1.
- Page 13 3.5 Weight Assisted Spring System (WASS) Adjustment Tool required: 30mm wrench The engagement of the WASS can be altered by adjusting the hex nuts along the length of the rod to help facilitate the tilting action for the attendant depending on user weight. Move the hex nuts up the rod to further engage the springs.
-
Page 14: Use And Operation
IMPORTANT ! DO NOT ATTEMPT TO TILT A RAZ MOBILE SHOWER COMMODE CHAIR IF THE ATTENDANT IS PHYSICALLY INCAPABLE OF SAFELY AND SMOOTHLY OPERATING THE TILT MECHANISM WITH A USER OCCUPYING THE CHAIR. ANY ATTENDANT MUST BE FAMILIAR WITH PROPER TILTING TECHNIQUES PRIOR TO ASSISTING A USER IN THE SHOWER COMMODE. - Page 15 4.4 Molded Seat The standard molded seat on Raz-AT600 is designed to help stabilize the pelvis and is contoured for pressure reduction. The molded seats are made from soft, integral-skin foam and available as a standard 23” wide, 18” deep seat. Also available as an upgrade in pressure reduction are Visco-Foam Interface seats.
- Page 16 DEALER. HIGHER SEAT POSITIONS WILL REDUCE THE CHAIR’S STABILITY AND MAY RESULT IN TIPPING AND INJURY. 4.5 Molded Headrest A Molded Headrest is included with all Raz-AT600. The Molded Headrest is shaped to cradle the head comfortably and is easy to clean. The Molded Headrest can be adjusted indefinitely forward and backwards within a 5”...
- Page 17 4.6 Adjustable Footrests Adjustable Footrests are standard on all Raz Mobile Shower Commode Chairs. For transfers, the footrests can be flipped up, rotated away or removed entirely. Adjustable Footrests can be extended for users with longer legs with the optional footrest extension tube, a 2” longer tube that can be ordered for any Raz Mobile Shower Commode Chairs.
- Page 18 IMPORTANT ! A QUALIFIED RAZ DEALER SHOULD BE CONTACTED TO CHECK ALL FASTENERS, CASTER AND WHEEL LOCKS, HARDWARE, AND ALL OTHER MOVING COMPONENTS AT LEAST ONCE PER YEAR...
-
Page 19: Cleaning And Maintenance
NOT mix a calcium/lime removal solution with any other liquid or toxic fumes may occur. It is recommended to the user that a qualified Raz dealer check over all fasteners and subassemblies if there is cause for concern regarding the shower chair’s performance. -
Page 20: Limited Warranty
(1) year and are subject to normal wear and tear exclusions. If within such warranty period any such product shall be proven to be defective, the part will be repaired or replaced, at Raz Design’s discretion. This warranty does not include any labor or shipping charges incurred in replacement, part installation, or repair of any such product. - Page 21 AND TAKING APPROPRIATE PRECAUTIONS FOR HUMAN EXPOSURE TO CHEMICALS. CONTACTS It is important that the Raz Mobile Shower Commode Chair be properly assembled and all adjustments be made carefully. Up-to-date manuals can be downloaded from www.razdesigninc.com. For clarification of any section of this manual, contact either the Canadian distributor or manufacturer.
