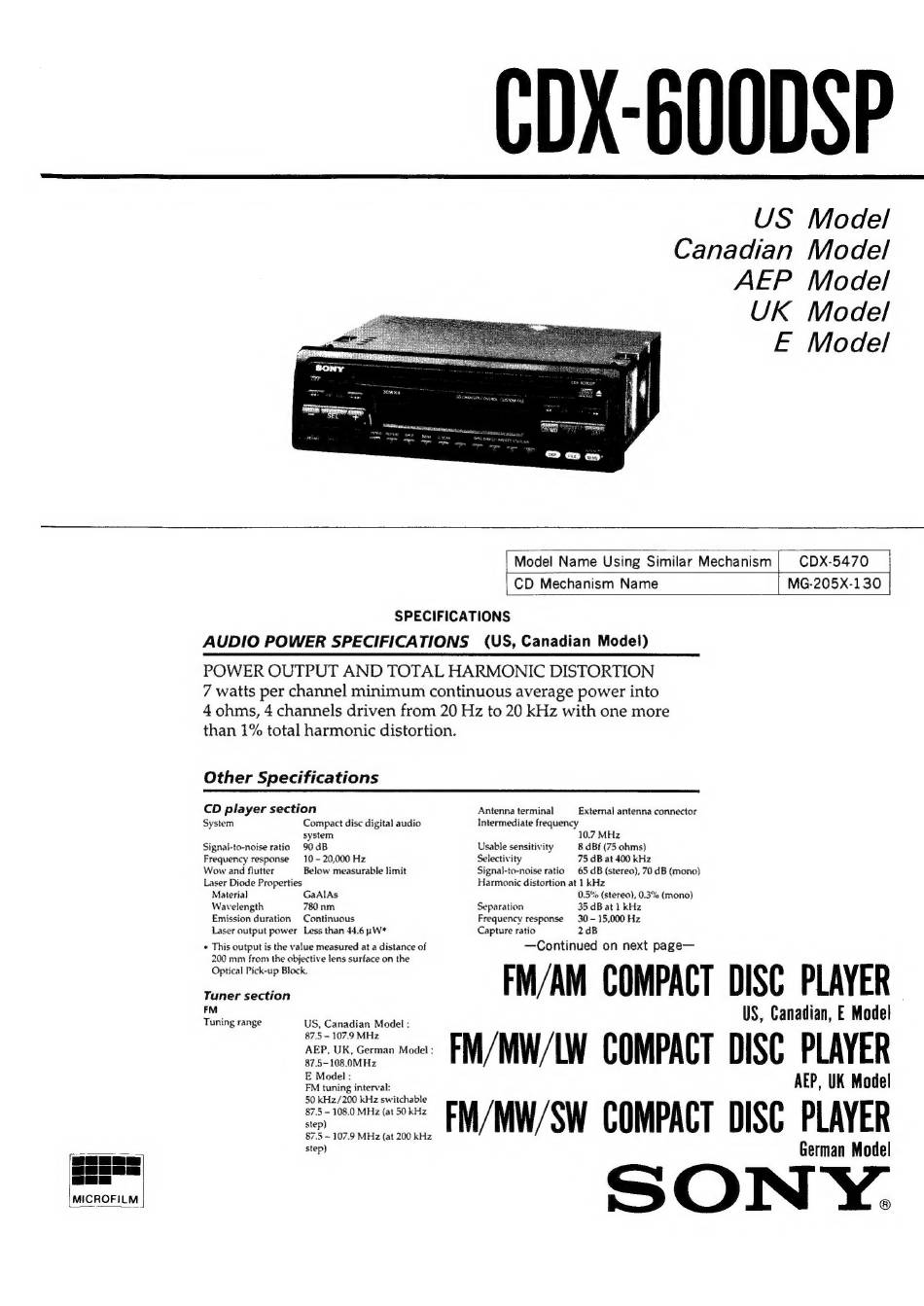

CDX-600DSP
US Model
Canadian Model
AEP Model
UK Model
E Model
Model Name Using Similar Mechanism | CDX-5470
CD Mechanism Name | MG-205X-130
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS (US, Canadian Model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
7 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with one more
than 1% total harmonic distortion.
Other Specifications
CD player section
System Compact disc digital audio
system
Signal-to-noise ratio 90 dB
Frequency response 10 ~ 20,000 Hz
Wow and flutter Below measurable limit
Laser Diode Properties
Material GaAlAs
Wavelength 780 nm
Emission duration Continuous
Laser output power Less than 44.6 pW*
* This output is the value measured at a distance of
200 mm from the objective lens surface on the
Optical Pick-up Block.
Tuner section
FM
Tuning range US, Canadian Model :
87.5 - 107.9 MHz
AEP, UK, German Model :
87.5-108.0MHz
E Model :
FM tuning interval:
50 kHz/200 kHz switchable
87.5 - 108.0 MHz (at 50 kHz
step)
87.5 ~ 107.9 MHz (at 200 kHz
step)
MICROFILM
Antenna terminal
Intermediate frequency
10.7 MHz
Usable sensitivity 8 dBf (75 ohms)
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo), 70 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo), 0.3% (mono)
External antenna connector
Separation 35 dB at 1 kHz
Frequency response 30 - 15,000 Hz
Capture ratio 2dB
—Continued on next page—
FM/AM COMPACT DISC PLAYER
US, Canadian, E Model
FM/MW/LW COMPACT DISC PLAYER
AEP, UK Model
FM/MW/SW COMPACT DISC PLAYER
German Model
