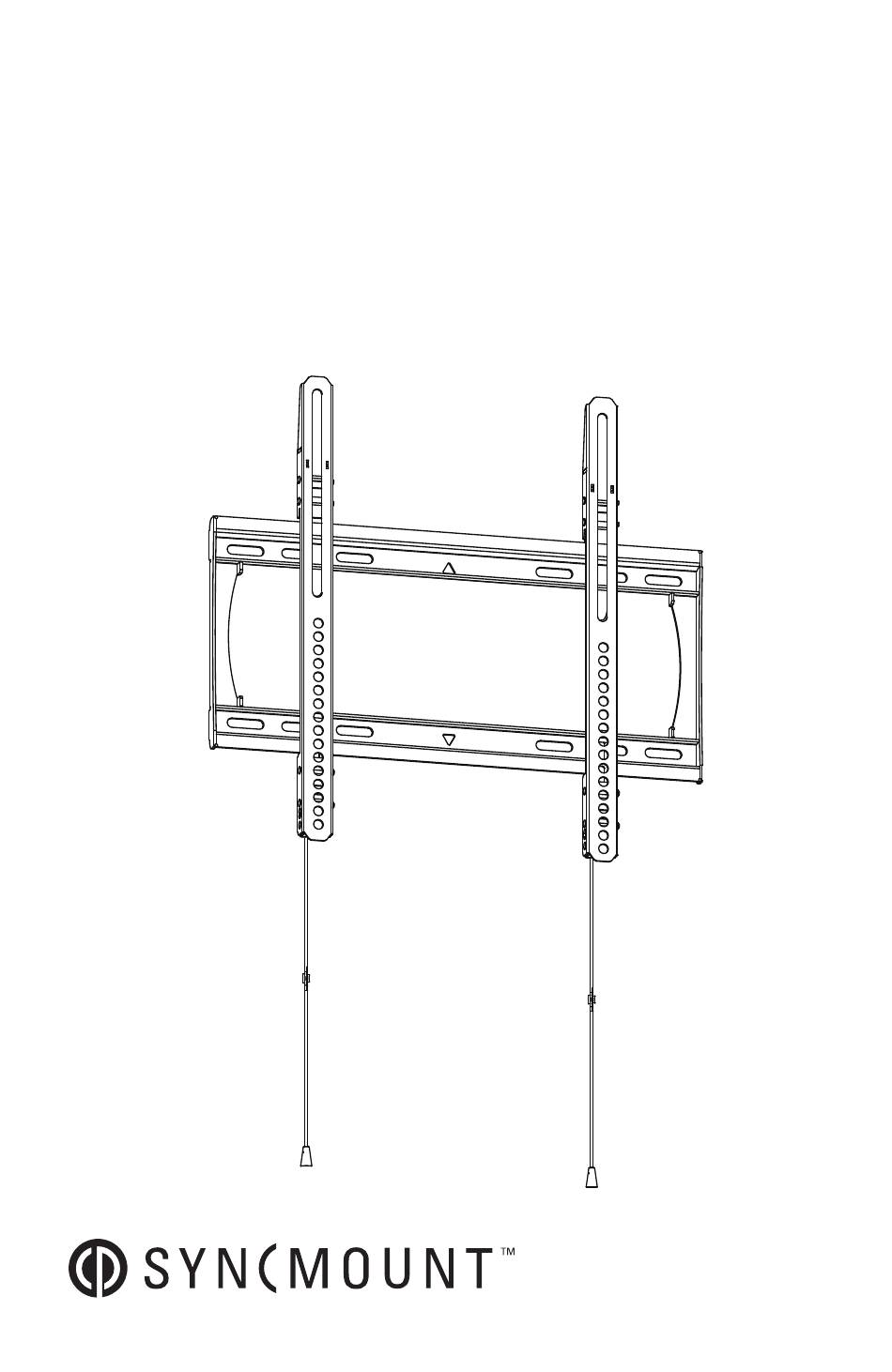

- Page 1 SM-F-3265 Fixed TV Wall Mount support mural fixe pour écran plat INSTRUCTION MANUAL MANUEL D’INSTRUCTIONS www.syncproducts.com...
-
Page 2: Tools Needed
DISCLAIMER - WARNING INFORMATION AVIS DE NON-RESPONSABILITÉ - INFORMATIONS D’AVERTISSEMENT Disclaimer –. SYNCPRODUCTS has extended every effort to ensure to accuracy and completeness of this manual. However, SYNCPRODUCTS does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, SYNCPRODUCTS makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document. - Page 3 HARDWARE PRODUCT NUMBERS M4 x 30 M6 x 30 M8 x 30 M4 x 12 M6 x 15 M8 x 15 M8 x 50 LAG BOLT WALL SQUARE LAG BOLT 10mm STEEL 8mm x 65mm ANCHOR WASHER SPACER STEEL WASHER SPACER WASHER PRODUCT COMPONENT PARTS...
- Page 4 VERTICAL RAILS ATTACHMENT- SHORTER SCREWS STEP 1A - Connect Vertical Rails to flat panel Connectez l'adaptateur au moniteur VERTICAL RAILS ATTACHMENT- LONGER SCREWS STEP 1B - Connect Vertical Rails to flat panel Connectez l'adaptateur au moniteur Spacers can also be used to provide clearance for cables and connectors...
- Page 5 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show two possible options for using additional washers if hardware screws are too long to properly tighten into the back of the TV. STEP 2- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO STEP 3) STEP 2- CENTER UNIVERSAL MONITOR PLATE Find stud and mark edge and center locations...
- Page 6 STEP 2C- MOUNT WALL PLATE TO WALL Mount wall plate Montez la plaque murale 16” STUD (Medium Tilt Mount) 16” or 24” STUD (Large Tilt Mount)
- Page 7 STEP 3 – SOLID CONCRETE INSTALLATION Use wall plate to mark mounting locations/ drill pilot holes Utilisez la plaque murale pour marquer l'emplacement de montage Level Solid Concrete Drill Bit Drill Pilot Hole DRILL BIT NOT INCLUDED STEP 3A & 3B - POSITION WALL PLATE, MARK, & DRILL PILOT HOLES Position wall plate to desired location, level, and Drill 4 pilot holes mark pilot locations with pencil.
- Page 8 STEP 3C- SOLID CONCRETE INSTALLATION. Mount wall plate Montez la plaque murale Insert wall Anchors gently into concrete wall with hammer if necessary Concrete Wall Concrete Wall Hammer...
- Page 9 STEP 4A- ATTACH PANELTO WALL PLATE Hang vertical rails with monitor attached Accrochez avec le moniteur installé. Pull spring lock cord down and gently push bottom of panel to wall and release spring lock. Panel is now locked on to wall plate. STEP 4B- ADJUST THE SCREWS ON THE VERTICAILS TO LEVEL THE FLAT PANEL rising up max 0.5”...
- Page 10 STEP 4C- ADDITIONAL FEATURE (OPTIONAL) Manager the over length for the straps Vertical Rails Flat Panel Wall Plate Vertical Rails have 7mm hole located at the bottom for placement of pad lock for additional theft) security (pad lock not included)
- Page 11 STEP 4D- ADDITIONAL FEATURE (OPTIONAL) Attach pendant to wall plate with magnet. STEP 4E - ADJUST STRAP LENGTH (OPTIONAL) knead and hold the control of the strap then adjust the length Push Push...
