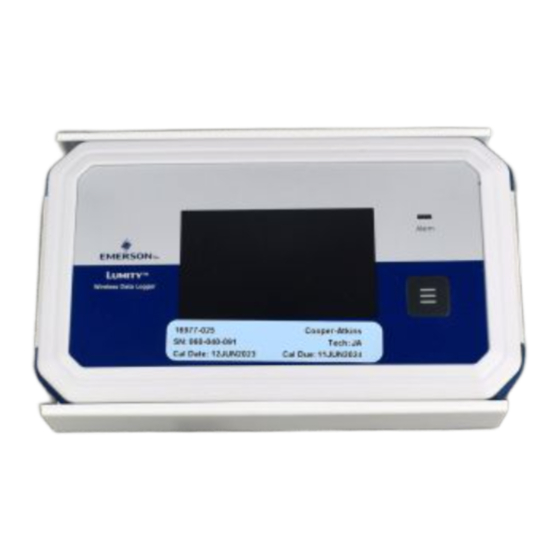

Lumity Wireless Data Logger

TABLE OF CONTENTS

Safety Icon Explanation ................................................................................................................................................ 2
Instructions Pertaining to Risk of Electrical Shock, Fire, or Injury to Persons .............................................................. 3
Introduction ................................................................................................................................................................... 4
Specifications ................................................................................................................................................................ 4
Components and Operations ........................................................................................................................................ 5
Display Icons ................................................................................................................................................................. 5
Getting Started .............................................................................................................................................................. 6
Saving Changes .......................................................................................................................................................... 10
Logger Alarm(s) .......................................................................................................................................................... 10
Retrieving Data from the Logger ................................................................................................................................. 11
Exporting Reports ....................................................................................................................................................... 13
Logged Events ............................................................................................................................................................ 13
Over the Air Firmware Updates .................................................................................................................................. 13
Battery Power Indicator ............................................................................................................................................... 14
Battery Information: ..................................................................................................................................................... 14
Protecting the Logger .................................................................................................................................................. 14
Federal Communication Commission Interference Statement ................................................................................... 14
Appendix A: Quick Setup Guide ................................................................................................................................ 15
Appendix B: Part Numbers ........................................................................................................................................ 19
