Thank you for choosing our p roduct. ShoppingAll is dedicated to providing
the highest level of quality and service to our customers.
Please do not hesitate to contact us if you have any issue.
Call: +1 (855) 266-9166
Mon-Fri 8:00am – 9:00pm (Eastern Time) (Canada/USA)
Email: Support@ShoppingAll.com
Load
15" - 32"
0-8kgs/0-17.6lbs
SA-GM135D
Website: www.ShoppingAll.com
VESA
75x75, 100x100
-90°/+85°
Tilt
Swivel
180°
Rotate
360°
Advertisement
Table of Contents
Related Manuals for SHOPPINGALL SA-GM135D
Summary of Contents for SHOPPINGALL SA-GM135D

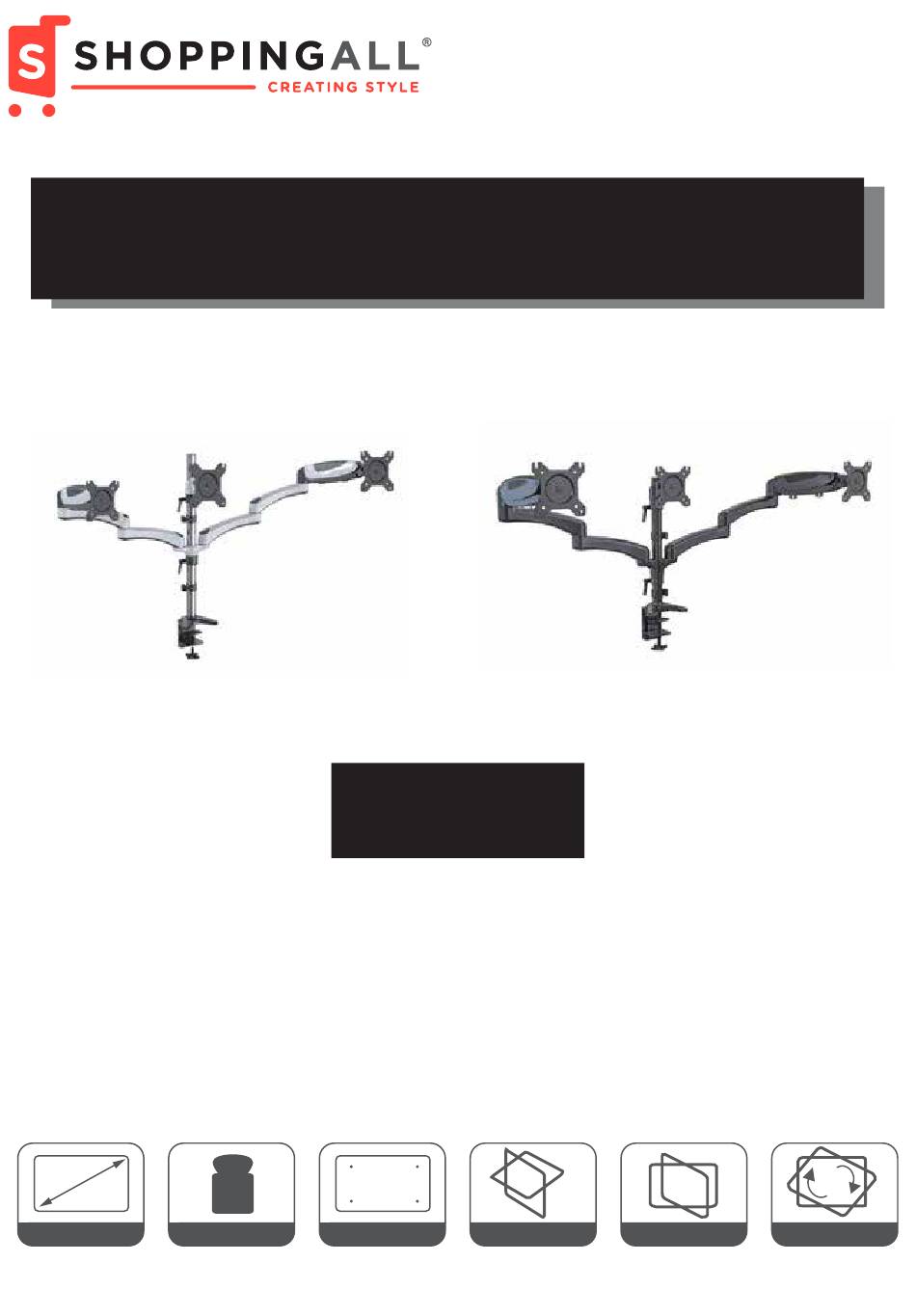

- Page 1 Gas Spring Monitor Desk mount SA-GM135D Thank you for choosing our p roduct. ShoppingAll is dedicated to providing the highest level of quality and service to our customers. Please do not hesitate to contact us if you have any issue.
- Page 2 WARNING STATEMENTS Warning Prior to the installation of this product, the installation instruction must be read and completely understood. Failure to do so may result in personal injury , property damage or voiding of factory warranty. Do not install on a structure that is prone to vibration, or movement. Reinforce the structure as required before installation.
- Page 3 PARTS INCLUDED (x1) (x2) (x4) (x1) (x1) (x1) M4x8 (x12) M4x12 (x12) M4x30 (x12) 12X5.8X16 (x12) M6x25 (x6) (x6) (x1) (x1) (x1) S=3mm S=4mm S=5mm Extra screw (x2) (x2) (x2) (x1) (x1)
- Page 4 Clamp Installation Steps S=3mm S=4mm S=5mm S=3mm For desk thickness more than 2.36"(60mm) but within 3.35"(85mm), remove clamp screw and attachment entirely and reattach clamp screw with bottom plate upside-down. S=4mm S=4mm S=5mm...
- Page 5 Grommet Installation Steps S=4mm S=3mm S=4mm S=5mm S=5mm Remove Clamp from the base Install Grommet (Part G) to the base S=4mm S=4mm S=5mm...
-
Page 6: Arm Installation
Arm Installation Insert and fasten the screw from the bottom of the arm joint to the M6x25 plastic Connection Cap . S=3mm S=4mm Adjust the Height Adjustment S=3mm Rings at proper height and screw up tight to hold the mount. Tighten the screw on the back of the arm support to fix its position, this will enable each arm to move... - Page 7 VESA Plate Adjustment For packaging purpose, the VESA plate comes angled in the box. 45° Angled VESA plate holes not facing upwards. To make the VESA plate holes face upwards, Use both hands to rotate the VESA plate AFTER the arm is installed on the pole and BEFORE installing laptop tray or monitor. Plate rotates 360°...
-
Page 8: Monitor Installation
Monitor Installation M4x8 12X5.8X16 M4x12 M4x30 S=4mm Same installation method S=4mm Using Spacers Same installation method S=4mm For Monitor Mounting setup, install the monitor with suitable M4 screws included in the package A using 4mm Hex Wrench. -
Page 9: Monitor Setup
Gas Spring Tension Adjustment Monitor Setup Step 1: This mount utilizes a gas spring system. The gas spring arm works with weights. Install your monitor BEFORE making a tension adjustment. Press down the arm to a horizontal position Step 2: To make a tension adjustment, press down the arm to a horizontal position. S=5mm If the arm is moving downwards Turn counter-clockwise to INCREASE tension until... - Page 10 Tilt & Swivel Adjustment If your monitor is dropping down,tighten the VESA S=3mm S=5mm Tilt Adjustment Bolt until your monitor stays upright. S=5mm VESA Swivel Adjustment S=5mm If the arm moves too easily, tighten the Arm Swivel screws located at the joint of the arms to add friction.If the arms are too stiff, loosen the screws for smoother movements.
-
Page 11: Cable Management Installation
Cable Management Installation S=3mm S=4mm S=5mm S=3mm S=4mm S=5mm Use the cable clip to manage the wrenches when not used. Organize cables with cable management clips along the pole. - Page 12 www.ShoppingAll.com...
