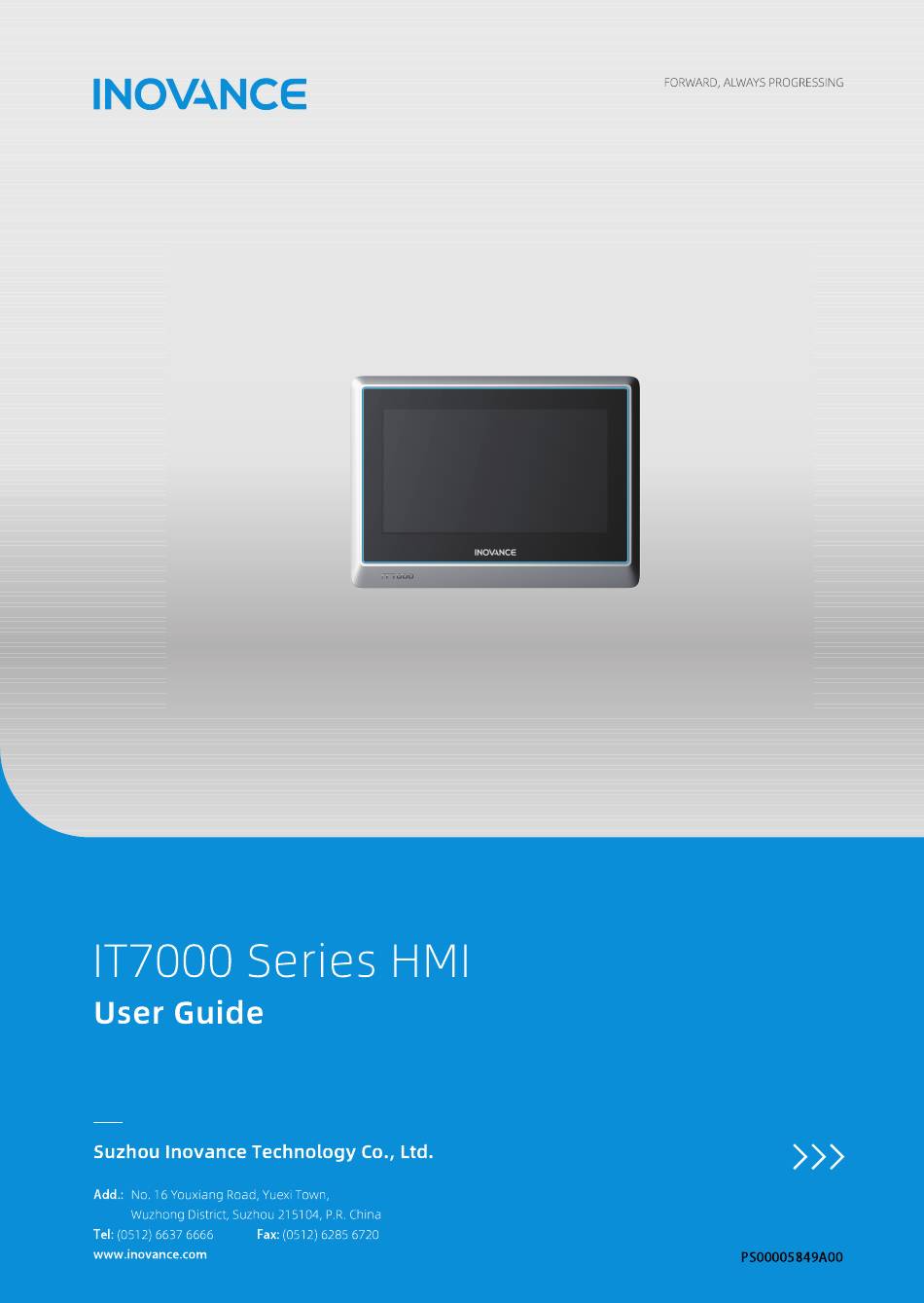

- Page 1 *PS00005849A00*...
-
Page 2: Table Of Contents
T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Preface ............. 2 Safety Instructions . -
Page 3: Preface
Preface ■ About this Guide The IT7000 series HMI adopts high‑performance processor featuring quick data processing and high response speed. With an Android style Linux system, the product provides users with user‑friendly interactive experience. It features: Custom styles, VNC remote desktop, vector format icons, and scripting; Connection to a PC through USB or Ethernet;... -
Page 4: Safety Instructions
4. Use this equipment according to the designated environment requirements. Damage caused by improper use is not covered by warranty. 5. Inovance shall take no responsibility for any personal injuries or property damage caused by improper use. ■ Safety Levels and Definitions : Indicates that failure to comply with the notice will result in death or severe personal injuries. - Page 5 Control System Design Interlock circuits and other circuits such as emergency stop, conventional protection, ● forward and reverse rotation must be set outside the product; devices for preventing equipment damage (up, down and reciprocating movement limit) must be set outside the product.
- Page 6 This equipment must only be used indoor. Ensure that the environment meets the ● specified requirements; Install the product in a place free from strong magnetic field, direct sunlight, high ● temperature, inflammable gases, vapors, and dust. Failure to comply will result in the risk of explosion.
- Page 7 Touch the HMI panel with hands only during use. Do not use tools to touch the HMI ● panel. Inovance assumes no responsibility for panel damage caused by excessive external force. Retired lithium batteries, LCD screens, capacitors and any other matters that may ●...
- Page 8 Dispose of retired batteries as industrial waste according to local laws and regulations. ● ‑ ‑...
-
Page 9: Product Information

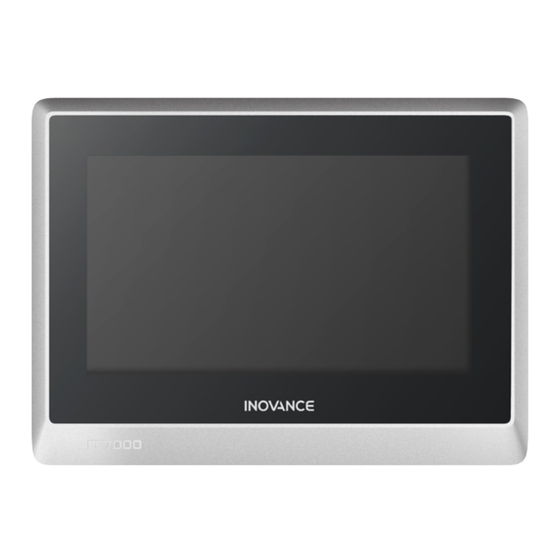

1 Product Information Appearance and Model Number ■ Appearance Figure 1‑1 IT7070S/IT7070S‑BG1 Figure 1‑2 IT7070T/IT7070E/IT7070EBG1/IT7100E‑BG1 ■ Model Number ‑ ‑... -
Page 10: General Specifications
Family Product series Screen size ① ② ③ Touch screen 6: 6000 series 043: 4.3‑inch 7: 7000 series 070: 7‑inch 100: 10‑inch Function Function ‑ ‑ ④ ⑤ configuration 1 configuration S: Economical Blank: T: Standard Standard E: High BG1: Custom performance General Specifications IT7070E‑... - Page 11 IT7070E‑ IT7100E‑ Type IT7070S IT7070S‑BG1 IT7070T IT7070E Electrical Specifications Input 24 VDC±20% voltage Rated 250 mA input current Interface Specifications 1x Micro SD interface SD card Supports Micro SD card, push‑ interface push type SD card slot COM1 COM1 (RS422/ COM1 (RS422/RS485) COM1 Serial...
- Page 12 IT7070E‑ IT7100E‑ Type IT7070S IT7070S‑BG1 IT7070T IT7070E Operating ‑10°C to +55° ‑10°C to ‑10°C to ‑10°C to tempera‑ 0°C to 50°C ‑10°C to +55°C +55°C +55°C +55°C ture Storage tempera‑ ‑20°C to +70°C ture Operating 10% to 90% RH (without condensation) humidity Cooling Natural cooling...
-
Page 13: Mechanical Design
The HMI is designed to operate in a temperature range between ‑10°C to 55°C (0°C to 50°C for IT7070S), exceeding of which may cause damage to the HMI components, malfunction, or function deterioration. For use in special environments, contact Inovance. Do not install the HMI in environments suffering from strong mechanical vibration. ●... -
Page 14: Mounting Dimensions
Mounting Dimensions Figure 2‑1 Overall dimensions of 7‑inch HMI Figure 2‑2 Overall dimensions of 10‑inch HMI Through‑Hole Mounting‑ Mounting‑ Outline Display Mounting Hole Hole Dimensions Screen Size Dimensions Dimensions Dimensions Model W x H x D (in inch) W × H (W+2) (H+2) (mm) -
Page 15: Installation Mode
Through‑Hole Mounting‑ Mounting‑ Outline Display Mounting Hole Hole Dimensions Screen Size Dimensions Dimensions Dimensions Model W x H x D (in inch) W × H (W+2) (H+2) (mm) (mm) (mm) (mm) IT7070E‑ 200 x 146 x 35 191 x 137 IT7100E‑... - Page 16 To comply with IP65 sealing specifications, ensure all the mounting screws delivered are used and the curvature of the panel is no greater than 0.010°. Do not over tighten the screws. If you have any question, contact the supplier. ‑ ‑...
-
Page 17: Electrical Installation
3 Electrical Installation Terminal Description ‑ ‑... - Page 18 Name Function Description Name Function Description Slave port of USB 24 VDC power input communication used for (delivered together with a Power Mini USB user program power terminal used to port port downloading and connect to this power commissioning through port) Communication port between HMI and...
-
Page 19: Wiring
Name Function Description Name Function Description ON: Power supply is normal. Blinking: Power supply is not stable. Power RESET Used to restore to default supply OFF: Power is off. settings indicator Note: Power indicators are not available in IT7070S Communication port for read and write of USB type‑A flash drive, connected to... - Page 20 Keep the conductor as short as possible. Inovance provides a complete set of accessories (Model No.: Complete Set of Accessories (Sales)‑IT7000‑Metal Clip and Terminal Block, Ordering No.: 98050285) including power supply terminals for this product, as shown in the table below.
- Page 21 RS485+ — — TX‑ — — — ■ Communication cable for DB9 male connector and settings Inovance provides two types of preformed communication cable options for the DB9 female. 1. Cable Type 1 Model: IT7‑H3U‑CAB; Ordering No.: 1504AX53 ‑ ‑...
- Page 22 Pin No. Signal Pin No. Signal — RX‑ TX‑ Cable connection TX‑ RX‑ Inovance H1U/H2U/H3U RS422 IT7070/IT7100 HMI COM1 communication port [RS422] Compatible HMI and port Mitsubishi FX1N/2N/3U/3G RS422 Note: This cable is not communication port suitable for IT7150E. HMI user program In the HMI user project, set the COM1 port as "RS422/RS485";...
- Page 23 Signal Pin No. Signal — Pin No. TX‑ — Cable connection RX‑ — Inovance H1U/H2U/H3U RS422 IT5xxx HMI COM2[RS232] communication port Compatible HMI IT6xxxE HMI COM2[RS232] and Port Mitsubishi FX1N/2N/3U/3G RS422 IT7xxxT/E HMI COM2[RS232] communication port In the HMI user project, set the COM2 port as "RS232";...
- Page 24 ■ USB terminal Name Specification Interface type USB type‑A for external USB drive Interface USB 2.0 standard Communication Meets USB 2.0 protocol rate Load capacity ≤300 mA Short circuit Supported protection USB mini interface: Used to connect to PC through a general USB communication cable for downloading/uploading user configuration programs and setting HMI system parameters.
-
Page 25: Touchscreen Calibration
Touchscreen Calibration If the touch screen is unresponsive randomly or completely, use touch calibration program to fix the problem. ■ Entering touch calibration program Access the program through the system setup menu: After the HMI is powered on and the screen displays “Long press to enter the Setup screen”, gently press the screen with your finger until the screen displays “Release to enter the Setup screen”.
