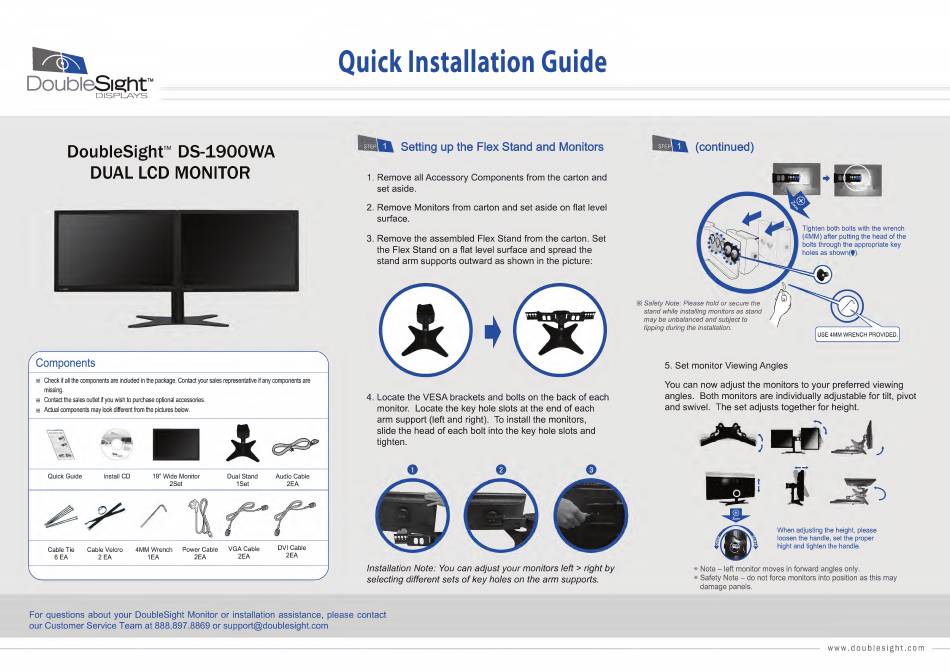

DoubleSight DS-1900WA Quick Installation Manual

Quick Installation Guide
DoubleSight™
DISPLAYS
DoubleSight™ DS-1900WA
DUAL LCD MONITOR
Components
* Check if all the components are included in the package. Contact your sales representative if any components are
missing.
* Contact the sales outlet if you wish to purchase optional accessories.
* Actual components may look different from the pictures below.
\<»W\
|
a
•a*
Quick Guide Install CD 19" Wide Monitor Dual Stand Audio Cable
2Set ISet 2EA /*
1
\*r<r
Cable Tie Cable Velcro 4MM Wrench Power Cable VGA Cable DVI Cable
6 EA 2 EA 1EA 2EA 2EA 2EA
V_J
Setting up the Flex Stand and Monitors (continued)
1. Remove all Accessory Components from the carton and
set aside.
2. Remove Monitors from carton and set aside on flat level
surface.
3. Remove the assembled Flex Stand from the carton. Set
the Flex Stand on a flat level surface and spread the
stand arm supports outward as shown in the picture:
4. Locate the VESA brackets and bolts on the back of each
monitor. Locate the key hole slots at the end of each
arm support (left and right). To install the monitors,
slide the head of each bolt into the key hole slots and
tighten.
m
Safety Note: Please hold or secure the
stand while installing monitors as stand
may be unbalanced and subject to
tipping during the installation.
USE 4MM WRENCH PROVIDED.
Tighten both bolts with the wrench
(4MM) after putting the head of the
bolts through the appropriate key
holes as shown(f).
5. Set monitor Viewing Angles
You can now adjust the monitors to your preferred viewing
angles. Both monitors are individually adjustable for tilt, pivot
and swivel. The set adjusts together for height.
Installation Note: You can adjust your monitors left > right by
selecting different sets of key holes on the arm supports.
* Note - left monitor moves in forward angles only.
* Safety Note - do not force monitors into position as this may
damage panels.
For questions about your DoubleSight Monitor or installation assistance, please contact
our Customer Service Team at 888.897.8869 or support@doublesight.com
