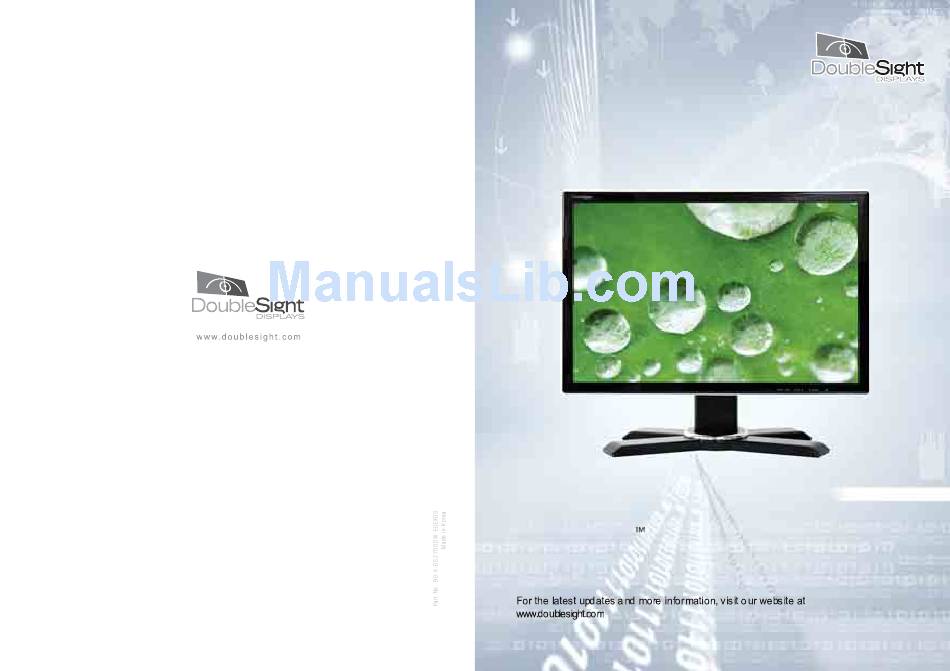

  • Page 1 1 - (877) TWO - LCDS USER'S MANUAL DoubleSight DS-2700DW LCD MONITOR...
  • Page 3 Safety Precautions Safety Precautions 27 ” T y pe - 19 2 0 x 120 0 @ 6 0 H z...
  • Page 4: Safety Precautions

    Package Contents > Check if all the components are included in the package. Please contact your reseller if any components are missing. Actual components may look different from the pictures below. LCD MONITOR Audio Cable (PC Input Cable) DVI-D Cable...
  • Page 5 Decreases value of selected icon. - Moves the selection bar up. (HOT Key - screen size) Increases value of selected icon. POWER : Power On/Off. Rear 1. HDMI 2. DVI-D 3. D-SUB 4. AUDIO 5. DC IN 6. Component Introduction Monitor Inputs...
  • Page 6: Monitor Stand

    1. Attach the base piece of stand to the upright portion as shown in diagram. 2. Secure the base with 6 screws (provided). Computer Connection Identifying & Selecting Inputs Computer connection Please follow Computer manufacturer's directions when connecting the monitor to the computer. D-SUB DC IN (DVI) (D-Sub)
  • Page 7: Safety Warning

    Note: Using HDMI connection allows for High Definition where supported. Connecting with Component cable 1. Please connect component cable to component terminal(Y,Pb,Pr) of LCD monitor and component input terminal of image device(DVD, set-top box, videogame console). 2. Please connect audio cable to audio input terminal of LCD monitor.
  • Page 8: Adjustable Stand

    The pivot function permits user to rotate screen 90° to portrait mode. Elevation Adjustable height provides the user with the ability to set Monitor height for viewing comfort. Swivel Left or Right adjustments offer the added convenience to customize work space.
  • Page 9: Specifications

    Stand by Power < 5W Power Input Power AC: 100V-240V 50/60Hz DC: 24V/6.75A 5W x 2 Multimedia Speakers DVI-D Cable, DC adaptor, Power code, User’s manual Accessories D-SUB Cable, Screws x 6 , Wrench, Audio cable DS-2700DW Series DS-2700DW Series...
