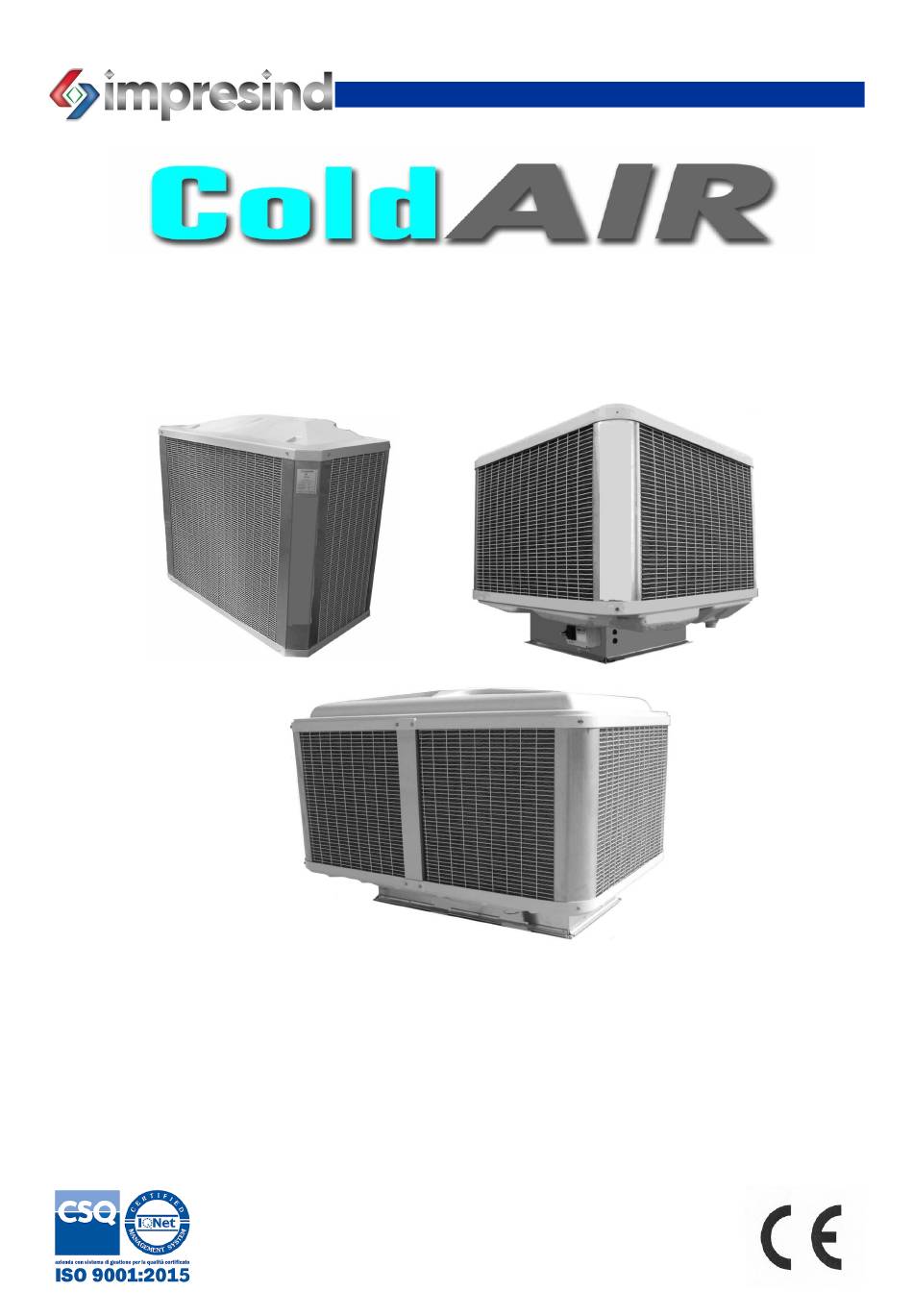

- Page 1 ADIABATIC EVAPORATIVE COOLERS USE AND MAINTENANCE INSTRUCTIONS STP101.120 - Ed-02-23-USO-CA...
-
Page 2: Table Of Contents
INDEX GENERAL INFORMATION ..........................3 Preamble ................................. 3 SECTION 1 – CHARACTERISTICS ........................4 1.1 Presentation of the ColdAir Evaporative Cooler ..................4 1.2 Foreseen use ............................4 1.3 Machine identification data ........................5 1.4 Electrical boards ............................5 SECTION 2 – USING THE EVAPORATIVE COOLING UNIT ................5 2.1 First start up .............................. -
Page 3: General Information
GENERAL INFORMATION PREAMBLE Dear Customer, We thank you for choosing an Impresind product and we would like to inform you that: The contents of this document are for information purposes only and are subject to modifica tions without notice;... -
Page 4: Section 1 - Characteristics
It is absolutely forbidden to make modifications to the machine and its destination of use. Impresind Srl declines all responsibility for any damages which may be, directly or indirectly, caused to exposed persons or property, due to improper use or use of the machine for differ-... -
Page 5: Electrical Boards
If Technical Assistance or spare parts are required, always supply the machine model and serial number. 1.4 Electrical boards Any electrical boards supplied by Impresind s.r.l. are manufactured according to CEI EN 60204-1:2018 regulations. It is absolutely forbidden to make modifications to the electrical board. -
Page 6: Description Use/Program And Operation
Place a perfectly straight extruded bar on the two pulleys, by using a finger apply a light force on the middle of the belt and measure the distance be- tween the flexed belt point and the bar. The distance should be between 1cm and 1,5cm. -
Page 7: Command Descriptions
2.2.1.1 Controller Description Control Keyboard Turns the machine on and off, and allows you to exit the various menus. If pressed for more than 3 seconds, it allow temporary unlocking of the keyboard (if loked) If displays the fan speed (F1,F2,F3, ecc ecc) and allows its modification Allows access to the programs menu (PTIM) and their selection. -
Page 8: Signal Descriptions And On-Screen Displays
2.2.1.2 Signals descriptions and on-screen diplays On-screen displays Signals operations Command/operation running Manual cooling Automatinc cooling Manual ventilation Automatinc ventilation Water drain open Water drain closed and water load on Unit off. Attention: the panel is power on Only ventilation mode Cool Cooling mode Self cleaning... -
Page 9: Settings
2.2.4.2 Automatic start mode With the machine switched on, press key until led of the corresponding automatic mode is 2.2.5 Setting 2.2.5.1 Setting the correct time Keep the button pressed until display shows “Time” On the display shows the setted curent time. When you are modifying the time the symbol blinking Press the button... -
Page 10: Reading A Stored Program
2.2.5.3 Reading a stored program Press the button and the display will show the first space memory. Repeat the operation to view the next programs Press button to exit 2.2.5.4 Modifying a program Press the button and the display will show the first space memory. Repeat the operation until view the program to be changed Act on the button to modify the program parameters... -
Page 11: Locking/Unlocking Remote Command Unit
2.2.5.7 Locking/Unlocking remote control unit It is possibile to lock or unlock the control unit by changing the “HL” parameter. To change this parameter, proceed as follows: - keep pressed together the buttons until the display shows “PA” - press button - press button to find the parameter to be changed (HL) - press button... -
Page 12: Ventilation
disconnect water supply 2.2.8 Bus System The unit is equipped with an electronic interface by bus system and/or network system. Various optionals and alternative control unit are available on the catalog. For more information contact Impresind Srl... -
Page 13: Additional Functions
- 1 - pump switch-off 10 min earlier than the end of the automatic cooling cycle - 2 - pump switch-off 20 minutes earlier than the end of the automatic cooling cycle (parameter recommended by Impresind) - 3 - etc etc ……... -
Page 14: Functioning Notes
2.4 Functioning notes The functioning of the evaporative cooler is based on an important principle: It introduces big quanti- ties of fresh air into the building and removes hot exhausted air through doors, windows and other openings. If the system is not able to expel the air volume introduced into the building, the efficiency would be compromised. -
Page 15: Pre-Season Maintenance
Before carrying out any maintenance operations, read carefully this section of the manual. For any necessity, contact Impresind Srl After Sales Service. Impresind Srl is not responsible for any damage or malfunctions due to lack of respect of the indications contained in the present section of this manual. -
Page 16: On Board Signs
3.3.4 Technical assistance request For any technical assistance intervention, contact the installer or a licensed technical service center. To know the nearest licensed technical service center, please contact Impresind srl. SECTION 4 – DISMANTLING In case of dismantling and disposal of the plant, all material concerning the plant must be collected and sent to the appropriate collection and disposal centres of companies specialized in the disposal sector. -
Page 17: Wiring Diagram
WIRING DIAGRAM FPA & TA... - Page 18 TC123 & TC223...
-
Page 19: Technical Features
TECHNICAL FEATURES FPA103 FPA123 TA123 TA223 TA223-2SD TA323 Model Air flow 10000 13000 13000 20000 20000 27000 Fan speed 7500 9700 9700 15000 15000 19000 5000 6500 6500 10000 10000 13500 Volt 230V/~50Hz 230V/~50Hz 230V/~50Hz 230V/~50Hz 230V/~50Hz 230V/~50Hz Power supply Current Power consumption lt/h... - Page 20 TECHNICAL FEATURES TC123 TC123SD TC223 Model Air flow 10000 10000 20000 Fan speed 6500 6500 10000 Volt 400V/3N~50Hz 400V/3N~50Hz 400V/3N~50Hz Power supply Current Power consumption lt/h Water consumption* Ø “ Water inlet Ø Drain 395x465 600x600 850x470 Air outlet duct Static pressure Evaporative pad Thickness...
- Page 21 Impresind Srl Via 1° Maggio 24, 20064 Gorgonzola (Milano, Italy) STP101.120 Tel. +39 02 95741932 Fax +39 02 73960191 e-mail impresind@impresind.it www.impresind.it...
