E2S GNExH1-I Instruction Manual

Heat detector class i div 1, ul521, can/ulc-s530, nec / cec / atex / iecex / ukex zone 0, 1, 2, 21, 22

Advertisement

Quick Links

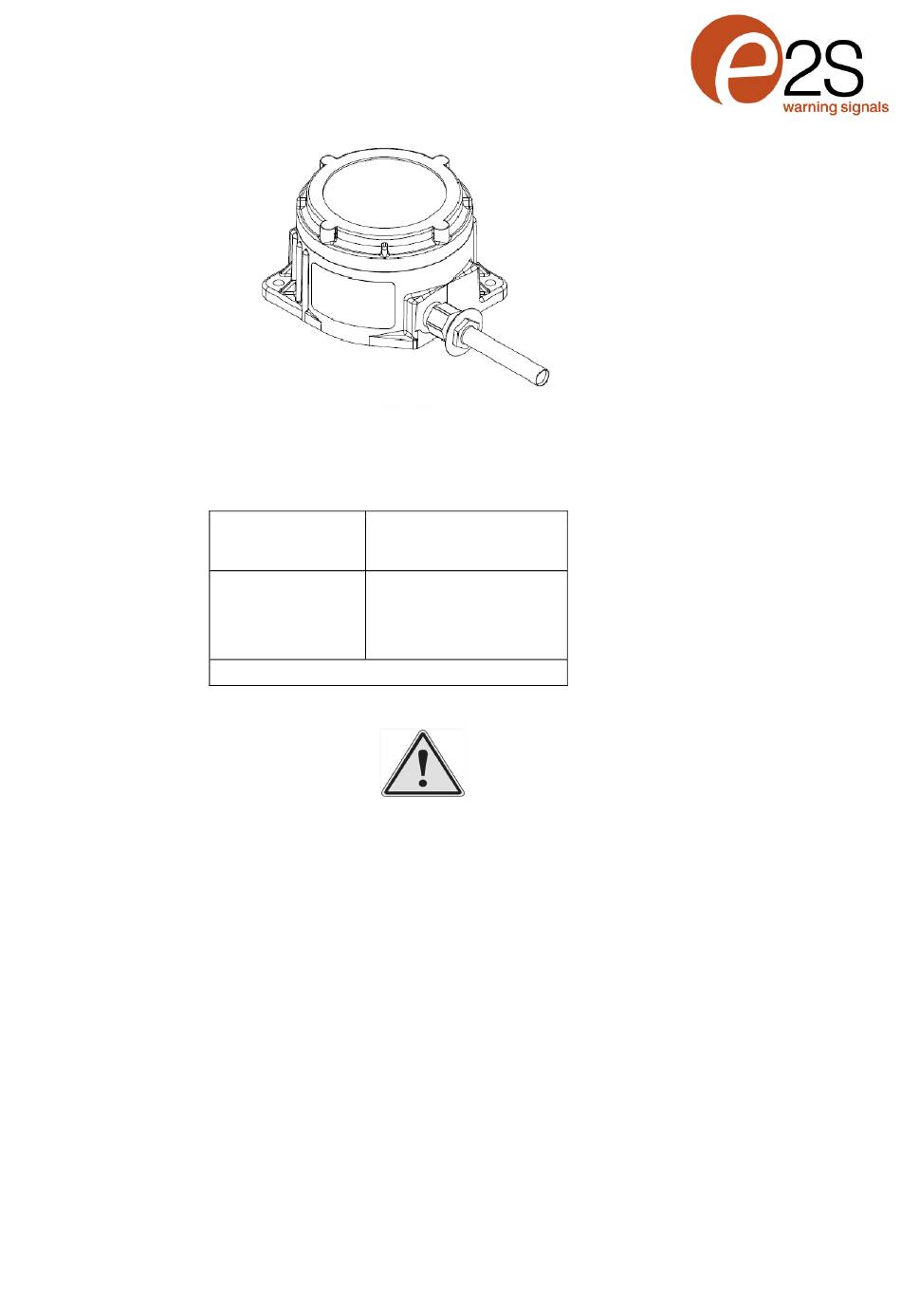

INSTRUCTION MANUAL
GNExH1-I & GNExH1-IR Heat Detector
Class I Div 1 ; UL521 ; CAN/ULC-S530
NEC / CEC / ATEX / IECEx / UKEx Zone 0, 1, 2, 21, 22
1) Product Table
2) Warnings
WARNINGS:
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
DO NOT OPEN WHEN ENERGISED
POTENTIAL ELECTROSTATIC HAZARD – SEE INSTRUCTIO CLEAN ONLY WITH A DAMP CLOTH
AVERTISSEMENT:
NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE
NE PAS OUVRIR ENERGIE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE - NETTOYER UNIQUEMENT AVEC UN CHIFFON HUMIDE
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D255-00-251-IS
Unit Type Code
Ui = 30V
Ii = 500mA
GNExH1-I
Pi = 1100mW
Ci = 0
GNExH1-IR
Li = 0
Table 1: Electrical Ratings
Issue 1
31-05-2024
Input Parameters
www.e2s.com
Sheet 1 of 9
Tel: +44 (0)208 743 8880
