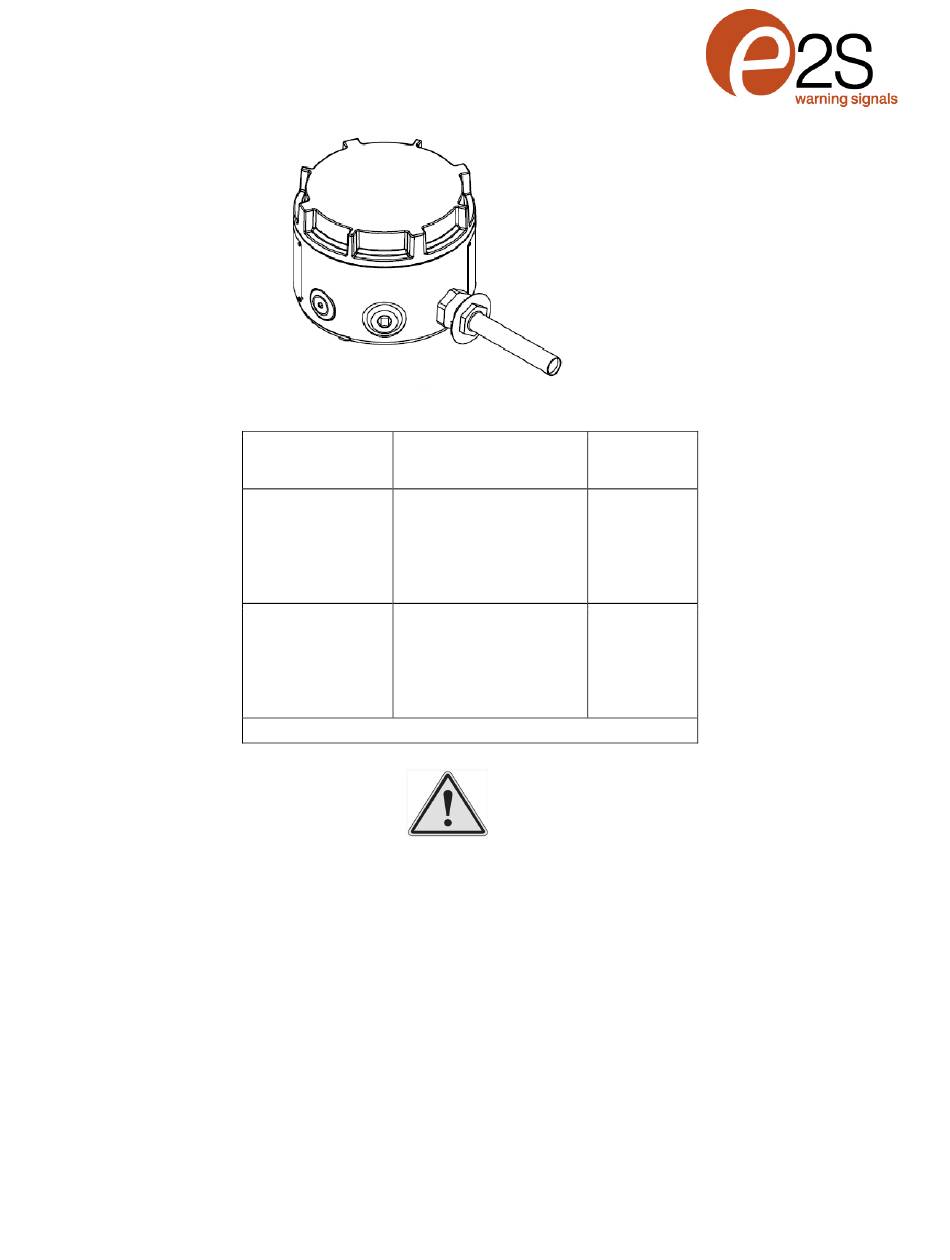

INSTRUCTION MANUAL
D1xH1-A & D1xH1-H Heat Detector
Class I & II Div 1 ; UL521 ; CAN/ULC-S530
NEC / CEC / ATEX / IECEx / UKEx Zone 1, 2, 21, 22
1) Product Table
2) Warnings
WARNINGS:
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
POTENTIAL ELECTROSTATIC CHARGING HAZARD - CLEAN ONLY WITH A DAMP CLOTH
TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, THE FIRST CONDUIT RUN MUST HAVE A
SEALING FITTING CONNECTED WITHIN 18 INCHES OF ENCLOSURE. SUBSEQUENT CONDUIT RUNS MUST HAVE
A SEALING FITTING CONNECTED AS CLOSE AS PRACTICAL TO THE WALL OF THE ENCLOSURE, BUT IN NO
CASE MORE THAN THE SIZE OF THE CONDUIT OR 50MM, WHICHEVER IS THE LESSER.
TO PREVENT IGNITION OF GROUP A, B, C AND D ATMOSPHERES - SEE
COMPATIBILITY
AVERTISSEMENT:
NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE - NETTOYER UNIQUEMENT AVEC UN CHIFFON HUMIDE
POUR RÉDUIRE LE RISQUE D'INFLAMMATION DES ATMOSPHÈRES DANGEREUSES, LE PREMIERE CONDUIT DE
CONDUIT DOIVENT AVOIR UN RACCORD D'ÉTANCHÉITÉ RACCORDÉ À MOINS DE 18 POUCES DE
L'ENFERMEMENT. POUR SUBSÉQUENT LES CONDUITES DE CONDUIT LA DISTANCE ENTRE LA SURFACE DE LA
MASSE DE REMPLISSAGE AU PLUS PRÈS DE L'ENVELOPPE DOIT ÊTRE AUSSI PETITE QUE CE QUI EST
RÉALISABLE MAIS EN AUCUN CAS SUPÉRIEURE À LA PLUS PETITE DES DIMENSIONS CORRESPONDANT À LA
TAILLE DU CONDUIT OU À 50 MM.
POUR PRÉVENIR L'INFLAMMATION DES ATMOSPHÈRES DES GROUPES A, B, C ET D-VOIR L'INSTRUCTION POUR
LA COMPATIBILITÉ CHIMIQUE
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D255-00-001-IS
Unit Type Code
125Vac 50/60 Hz / 5.0A Max
D1xH1-A
125Vac 50/60 Hz / 5.0A Max
D1xH1-H
Table 1: Electrical Ratings
Issue 1
31-05-2024
Input Voltage
Max Power
125Vdc / 0.5A Max
10.0W Max
48Vdc / 1.0A Max
24Vdc /2.0A Max
125Vdc / 0.5A Max
1.25W Max
48Vdc / 1.0A Max
24Vdc / 2.0A Max
www.e2s.com
Sheet 1 of 8
INSTRUCTION FOR CHEMICAL
Tel: +44 (0)208 743 8880
Advertisement
Table of Contents
Related Manuals for E2S D1xH1-A
Summary of Contents for E2S D1xH1-A
- Page 1 INSTRUCTION MANUAL D1xH1-A & D1xH1-H Heat Detector Class I & II Div 1 ; UL521 ; CAN/ULC-S530 NEC / CEC / ATEX / IECEx / UKEx Zone 1, 2, 21, 22 1) Product Table Unit Type Code Input Voltage Max Power 125Vac 50/60 Hz / 5.0A Max...
- Page 2 3) Marking & Rating Information Ex db IIC T6 Gb Ta –55°C to +55°C Ex tb IIIC T106°C Db Ta –55°C to +80°C The D1xH1-A & D1xH1-H Heat Detectors comply with the following D1xH1-H Ex db IIC T4 Gb Ta –55°C to +125°C standards for hazardous locations: Ex db IIC T5 Gb Ta –55°C to +90°C...
-
Page 3: Location And Mounting
Flame Path external thread on Flame Path internal thread on lid shown hatched base shown hatched 100ºC (D1xH1-A for ambients up to 70ºC) (D1xH1-H for ambients up to 90ºC) 85ºC (D1xH1-A for ambients up to 55ºC) (D1xH1-H for ambients up to 75ºC) Area Classification Dust Figure 1: Flame Path. - Page 4 Figure 4: Earth Internal & External 10) Power Supply Selection Electrical Ratings See table 1 _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D255-00-001-IS Issue 1 31-05-2024 Sheet 4 of 8...
- Page 5 48Vdc max for monitoring via a panel. conduit or 50mm, whichever is the lesser. For D1xH1-A versions when using an LED option C (with no Any unused cable entries must be closed with suitably rated ballast resistor)
-
Page 6: Cable Connections
For full wiring details see wiring diagrams D255-06-001 For EOL and Series device limitations and configurations see Section 13. Fitting can be requested by E2S at the order stage or added to the correct terminal blocks afterward. All Table 2 – EOL Devices devices must comply with the requirements stipulated in section 13. -
Page 7: Maintenance, Overhaul & Repair
Units must not be opened while an explosive atmosphere is the detector to see if bulb light on activation. present. _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D255-00-001-IS Issue 1 31-05-2024... - Page 8 Do not confuse these with units that were painted by the owners. _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D255-00-001-IS Issue 1 31-05-2024...
- Page 9 SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY TITLE CHECKED DATE BE DISCLOSED, LOANED, COPIED OR USED FOR EUROPEAN SAFETY SYSTEMS LTD D1xH1-A & -H ; STExH1-A & -H Ex d HEAT DETECTOR MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR 10-05-2024 IMPRESS HOUSE B.ISARD WRITTEN CONSENT.
- Page 10 SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY TITLE CHECKED DATE BE DISCLOSED, LOANED, COPIED OR USED FOR EUROPEAN SAFETY SYSTEMS LTD D1xH1-A & -H ; STExH1-A & -H Ex d HEAT DETECTOR MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR 10-05-2024 IMPRESS HOUSE B.ISARD WRITTEN CONSENT.
-
Page 11: Eu Declaration Of Conformity
This Declaration is issued under the sole responsibility of the manufacturer. Desmond Gayler Document No.: DC-120_Issue_A Quality Assurance Manager Date and Place of Issue: London, 07/06/2024 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-120_Issue_A Page 1 of 1 - QAF_252_Issue_5... - Page 12 This Declaration is issued under the sole responsibility of the manufacturer. Desmond Gayler Document No.: DC-128_Issue_A Quality Assurance Manager Date and Place of Issue: London, 07/06/2024 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-128_Issue_A Page 1 of 1 - QAF_252_Issue_5...
