Summary of Contents for FujiFilm Instax Wide 400

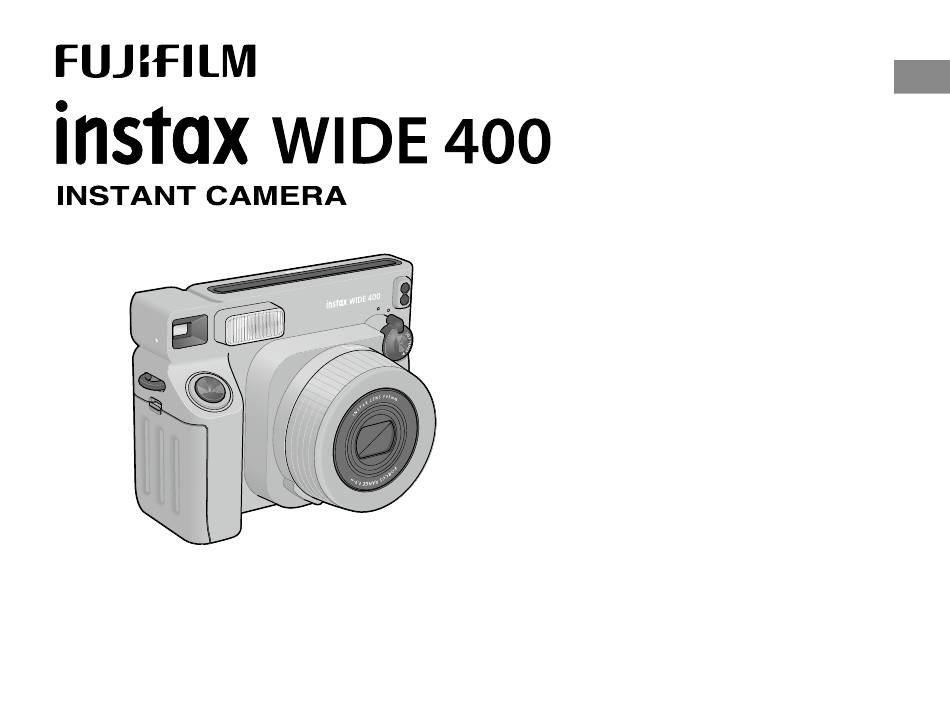

- Page 1 User’s Guide/Safety Precautions FI027-EN-WW-01...
- Page 2 Do not open the back camera cover until you have used all photos in the loaded INSTAX WIDE film cartridge. Opening the camera door will expose the remainder of the unused film cartridge, turning it white and rendering it no longer usable. © 2024 FUJIFILM Corporation. All rights reserved.
- Page 3 How to open the film door 1. Pull the film door lock downwards. 2. Rotate the latch anti-clockwise until you feel tension (it will be in a diagonal position). * Do not apply excessive force when turning the latch, this may cause damage.
- Page 4 AA (LR6)
- Page 5 TOC in...
- Page 6 • To learn how to take photos, refer to the English pages. (pages from 10)
-
Page 7: Before Use
ENGLISH Before use Before using the camera, check you have the following: Supplied Accessories • Shoulder strap (1) • Camera angle adjustment accessory (1) • AA-size alkaline batteries • Close-up lens (1) (LR6) (4) • User’s Guide (1) -
Page 8: Part Names
Film ejection slot Part names Flash Front Viewfinder Strap hook Shutter button Battery cover Lens ring / Power Lens cover / Lens Self-timer lever Self-timer lamp Light sensors (AE light sensor / Flash light sensor) Rear Film cover lock Film door Tripod mount (Tripod is not supplied) Location for camera-angle adjustment accessory Film counter... -
Page 9: Attaching The Strap
To attach the camera angle adjustment accessory Attaching the strap Attach it to the strap hook on the shutter button side as illustrated To attach the shoulder strap below. The camera angle adjustment accessory can also be used as a simple Attach the shoulder strap as illustrated below. - Page 10 Press the shutter button. Preparing to take photos The camera ejects the protective cover. Insert the film cartridge into the Once the ejection sound stops, take the edge of the protective cover and pull it out. camera. For details on how to load the film cartridge, see page 5. Rotate the lens ring to ‘0.9 –...
-
Page 11: Taking Photos
Decide your composition. Taking photos Look into the viewfinder so that the marker in the viewfinder To use the close-up lens, see page 13. appears in the center of your subject. Rotate the lens ring to ‘0.9 – 3.0m’ for Target mark short distances and ‘3.0m –... - Page 12 Press the shutter button to take a Rotate the lens ring to the “OFF” photo. position after taking photos. The lens unit will be retracted, and the camera turns off. • Be careful not to touch the lens when you press the shutter button.
-
Page 13: Removing The Film Cartridge
Removing the film cartridge Using the close-up lens The film counter decreases in numerical order, counting down from Close-up mode allows you to get close to the subject. “10” with each photo taken. “0” will be displayed when the film is Take selfies, easily, using the close-up lens and built-in selfie mirror. - Page 14 To unmount the close-up lens To take close-up photos Unmount the close-up lens by holding the back of the selfie mirror. Decide your composition. For close-ups, use the marker found in the viewfinder, and place it over the center of your subject. Target marker 40–50 cm Press the shutter button to take a...
-
Page 15: Using The Self-Timer
How to take a selfie Using the self-timer Use the close-up lens attachment, and make sure you can see You can take group photos and selfies using the self-timer. The self- yourself in the selfie mirror, then you can take a photo. timer has four timing options: 4-seconds, 6-seconds, 8-seconds and Hold the camera securely so that your 10-seconds. - Page 16 Press the shutter button to take a Using the camera angle adjustment accessory photo. The included camera angle adjustment accessory can be used as a When you press the shutter button, the self-timer lamp lights pedestal for the camera. The camera angle adjustment accessory has up, and the camera makes a timer sound.
- Page 17 Press the shutter button to take a Precautions when taking photos photo. Precautions when holding the camera Do not cover the Correct way to Do not cover the light sensors with hold flash with a finger a finger • You can also use functions such as normal shooting and self-timer •...
-
Page 18: Important Safety Notice
Distances for normal (standard) mode and close-up IMPORTANT SAFETY NOTICE mode ● Do not use this product and its accessories for a purpose other In normal (standard) mode, take a picture at a distance of at than taking photos. least 0.9 m from the subject. The effective flash range is up to approximately 3.0 m. - Page 19 or near open gasoline, benzine, paint thinner or other unstable The “UKCA” mark certifies that this product substances which can give off dangerous vapors. Failure to do satisfies the requirements of Great Britain (England, this could result in explosion or fire. Scotland, Wales) regarding safety, public health, Do not disassemble, heat the batteries, throw them in a fire, or environment and consumer protection.
- Page 20 11. Do not touch the film during development. ■ Caution: Handling the Film and Photo Prints For details, see the instructions on the FUJIFILM INSTAX WIDE Instant Film packaging. ■ Handling INSTAX WIDE Film and Photos For details on the handling of film and photos, see the instructions written on the FUJIFILM Instant Film INSTAX WIDE packaging.
-
Page 21: Specifications
Notes on disposing of the camera Specifications Disposal of Electrical and Electronic Equipment in Film FUJIFILM INSTAX WIDE FILM Private Households Photo Picture Size 62 mm × 99 mm Disposal of used Electrical & Electronic Equipment Lens Retractable lens, 2 components, 2 elements, f (Applicable in the European Union and other = 95 mm, 1:14... - Page 22 7-3, Akasaka 9-Chome, Minato-ku, Tokyo Japan Authorized representative in Europe: FUJIFILM Europe GmbH Balcke-Duerr-Allee 6, 40882 Ratingen Germany EU Importer : FUJIFILM Europe B.V. Oudenstaart 1, 5047 TK Tilburg The Netherlands UK Importer : FUJIFILM UK Limited Fujifilm House,Whitbread Way, Bedford, Bedfordshire, MK42 0ZE...
- Page 23 In caso di domande relative al prodotto, contattare If you have any inquiries about this product, please un distributore autorizzato FUJIFILM o accedere al sito web contact a FUJIFILM authorized distributor, or visit the website riportato di seguito. below. Als u vragen hebt over dit product, gelieve contact...
