Summary of Contents for FujiFilm INSTAX WIDE 400

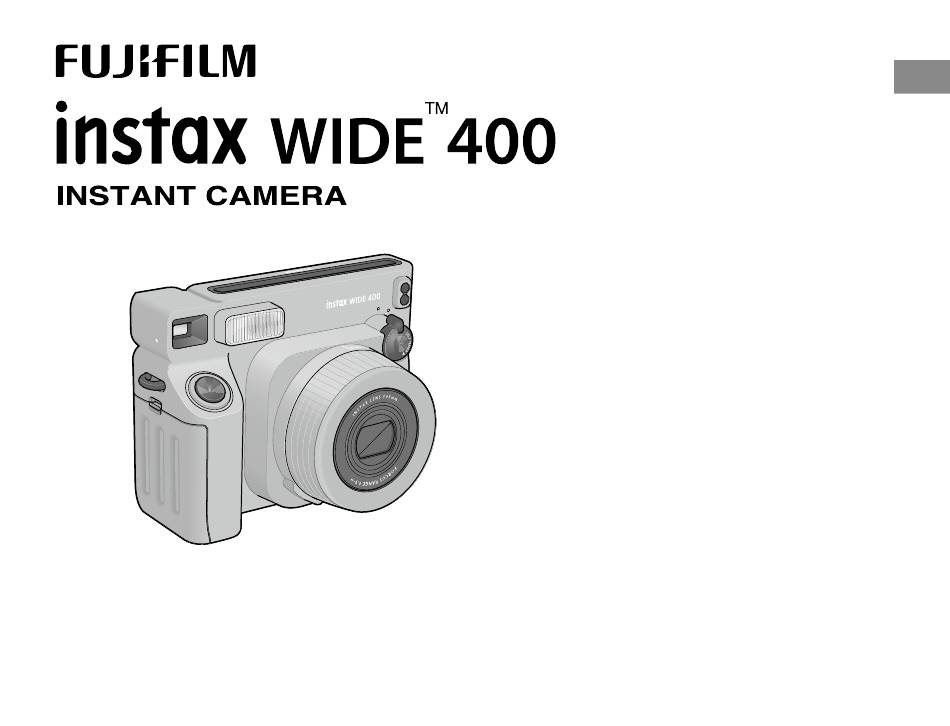

- Page 1 Quick Start Guide/Safety Precautions FI027-EN-NA-01...
- Page 2 Note on Handling the INSTAX WIDE Instant Film Pack Do not open the back camera cover until all 10 film sheets of the INSTAX WIDE instant film pack have been used. Opening the camera door will expose any remaining, unused film sheets, rendering the remainder of the film pack unusable.
- Page 3 How to Open the Film Door 1. Pull the Back cover knob downwards. 2. Rotate the latch anti-clockwise until you feel tension (it will be in a diagonal position). * Do not apply excessive force when turning the latch, this may cause damage.
- Page 4 How to install/replace the required 4 AA batteries (4 AA batteries included) AA (LR6)
- Page 5 TOC in How to insert the INSTAX WIDE instant film pack...
- Page 6 For instructions on how to take instant photos, refer to any of the sections below based on your language. • ENGLISH (p. 7)
-
Page 7: Before Use
ENGLISH Before Use Before using the camera, check to make sure you have the following: Supplied Accessories • Shoulder strap • Camera angle adjustment accessory • AA-size alkaline batteries • Close-up lens (LR6) (4) -
Page 8: Part Names
Film ejection slot Part Names Flash lamp face Front Viewfinder Hook for strap Shutter button Battery lid Lens ring / Power Lens cover/Lens SELF TIMER lever SELF TIMER lamp Light sensors (AE light sensor / Flash light sensor) Rear Back cover knob Film door Tripod hole (Tripod sold separately) Position for Camera angle adjustment accessory... -
Page 9: Attaching The Strap
To attach the Camera angle adjustment accessory Attaching the Strap Attach it to the hook on the Shutter button side of the camera as To attach the Shoulder strap illustrated below. Camera angle adjustment accessory has two sizes. Each can be used Attach the Shoulder strap as illustrated below. -
Page 10: Before Taking Photos
Press the Shutter button. Before Taking Photos The camera ejects a black film cover. Load the INSTAX WIDE instant film When the sound of the film cover being ejected stops, grasp the edge of the ejected film cover and take the film out. pack into the camera. -
Page 11: Taking Photos
Determine your Composition. Taking Photos Look into the Viewfinder so that the mark in the Viewfinder See page 13 when using the Close-up lens. appears in the center of your subject. Rotate the Lens ring to the following Target mark position (“0.9 –... - Page 12 Press the Shutter button to take a Rotate the Lens ring to the “OFF” photo. position after taking photos. The lens barrel will be retracted, and the camera turns off. • Be careful not to touch the lens when you press the Shutter button.
- Page 13 Removing the Film Pack Using the Close-up Lens The Film counter decreases in numerical order, counting down from Close-up Mode allows you to take a close-up photo of your subject. “10” with each photo taken. “0” will be displayed when the film is You can also take a selfie using the Selfie mirror on the included finished and after the last photo has been taken.
- Page 14 To unattach the Close-up lens To take Close-up photos Unattach the Close-up lens by pulling the back of the Selfie mirror. Determine your Composition. In Close-up Mode, move the mark in the Viewfinder so that it appears in the center of your subject. Target mark 15.7-19.7 in.
-
Page 15: Using The Self-Timer
To take a photo of yourself (selfie) Using the SELF TIMER Confirm your composition using the Selfie mirror at the front of the You can take group photos and take a selfie using the SELF TIMER. lens, then take a photo. The SELF TIMER time can be selected from “4 seconds”, “6 seconds”, Hold the camera securely so that your “8 seconds”, and “10 seconds”. - Page 16 Press the Shutter button to take a Using the Camera Angle Adjustment Accessory photo. The included Camera angle adjustment accessory can be used as a When you press the Shutter button, the SELF TIMER lamp lights pedestal for the camera. The Camera angle adjustment accessory has up, and the camera makes a timer sound.
- Page 17 Confirm the Image in the Viewfinder Precautions for Taking Photos and press the Shutter button to take a photo. Precautions for holding the camera Do not cover the Correct way to Do not cover the light receiving hold Flash lamp face sensor with a with your finger finger...
-
Page 18: Important Safety Notice
It may be possible to eject the Film is jammed film after these steps are taken. SELF TIMER lamp (top) status and error solutions If this continues, contact a FUJIFILM authorized dealer for assistance. SELF TIMER lamp Incorrect Lens ring Set the Lens ring in the proper position. - Page 19 If the camera is not functioning correctly, contact the applicable Do not use solvent such as paint thinner or alcohol to wipe off Fujifilm customer service or repair center. To avoid injury, do not dirt. Use a dry clean cloth.
- Page 20 ■ Handling of INSTAX WIDE Instant Film and Photos For details on the handling of film and photos, see the instructions written on the FUJIFILM INSTAX WIDE instant film packaging. Keep film a cool place. In particular, do not leave film in an extremely hot place, such as in a closed motor vehicle, for a long period of time.
- Page 21 CAUTION Photos This equipment has been tested and found to comply with the limits For details, see the instructions on the FUJIFILM INSTAX WIDE for a Class B digital device, pursuant to Part 15 of the FCC Rules. instant film.
-
Page 22: Notes On Disposing Of The Camera
For more detailed information about recycling of this product, please contact your local city recycling office, your household waste disposal service or the authorized Fujifilm dealer from which you purchased the product. For proper disposal in the United States at product end-of-life, please contact 1-800-800-3854 Option #1 INSTAX. -
Page 23: Specifications
(when using new batteries), Corporation and its affiliates. Effective flash range: 35.4 in. to 9.8 ft. (0.9 to 3 m) © 2024 FUJIFILM Corporation and its affiliates. All rights reserved. Power Supply Four AA-size alkaline batteries (LR6), Capacity: approx. INSTAX WIDE instant film... - Page 24 If you have any inquiries about this product, please contact a FUJIFILM authorized dealer, or access the website below. Si vous avez des questions sur ce produit, veuillez vous adresser à un distributeur FUJIFILM autorisé, ou consultez le site web ci-dessous.
