GL60 Plus Gimbal Searchlight

用户说明书 V2.1

User Manual V2.1

2024.06

Table of Contents

Chapters

Need help?

Do you have a question about the GL60 Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Czi GL60 Plus

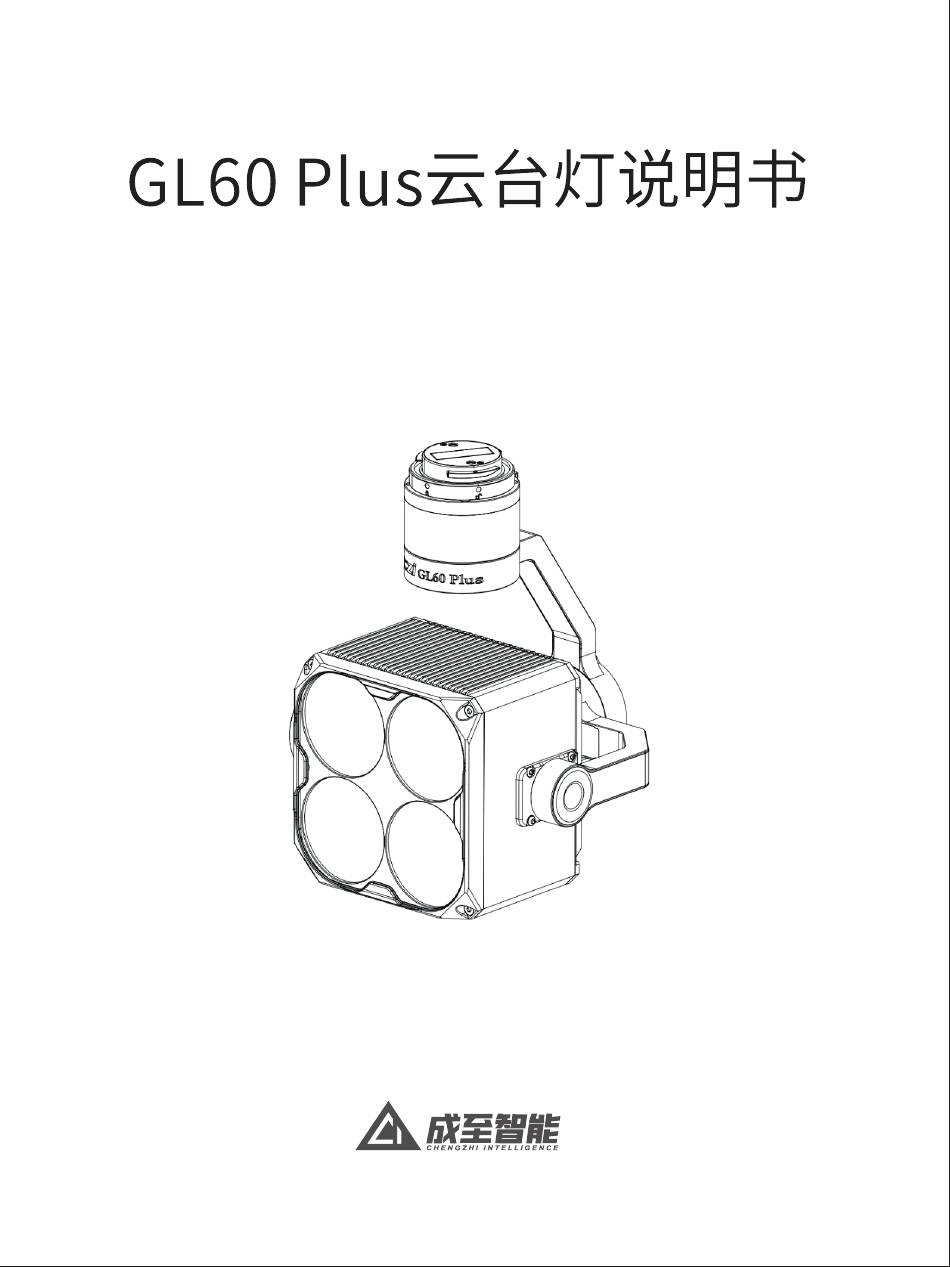

Page 1 GL60 Plus Gimbal Searchlight 用户说明书 V2.1 User Manual V2.1 2024.06...
Page 2: Table Of Contents
目录：一、云台灯系列介绍 ..........01 二、免责声明与警告 ..........01 三、 GL60 Plus云台探照灯介绍 ......02 四、 GL60 Plus云台探照灯安装教程......04 五、 czi Assistant 安装与使用教程......05 六、 DJI Pilot 2 使用教程 ........08 七、固件升级 ............11 7.1 在线固件升级..........11 7.2 TF卡固件升级 ..........15...
Page 3: 目录：一、云台灯系列介绍
如有更新，恕不另行通知。请访问www.czi.com.cn官方网站以获取最新的产品信息。...
Page 6: 四、 Gl60 Plus云台探照灯安装教程
1、 2、...
Page 7: 五、 Czi Assistant安装与使用教程
五、 czi Assistant安装与使用教程 1、下载czi Assistant拷贝至U盘，并在DJI带屏遥控器安装。获取安装包途径： ①进入成至智能官网下载czi Assistant拷贝至您的U盘或TF高速卡。 ②使用TF高速卡内已有的czi Assistant安装包。 2、点击czi Assistant进入软件界面。...
Page 8 3、点击APP图标后，进入界面，点击开启悬浮窗。 4、右下角显示GL60 Plus字样，说明云台灯负载识别成功；界面上，蓝色虚拟按键为悬浮框按钮，点击进入飞行界面即可操作。...
Page 9 5、悬浮框介绍： ① ② ③ ④ ⑤ ①开关灯按钮，开灯时可滑动进度条调节亮度 ② 爆闪按钮 ③ 云台微调按钮 ④ 双云台联动按钮 ⑤ 关闭悬浮窗...
Page 10: 六、 Dji Pilot 2使用教程
六、 DJI Pilot 2使用教程 1、进入到主界面，右下角显示出GL60 Plus字样，说明云台灯负载识别成功，点击进入飞行界面。 2、点击菜单栏，点击Payload设置，进入GL60 Plus云台灯操作界面。...
Page 11 3、点击显示实时数据按钮，在主界面左上角会弹出状态显示框，可观察 GL60 Plus实时温度及功率等参数状态。...
Page 12 4、点击开光按钮，实现灯的亮灭状态控制；点击闪烁按钮，可开启灯爆闪模式；滑动亮度进度条选项，可对云台灯进行亮度调节。...
Page 13: 七、固件升级
七、固件升级 7.1 在线固件升级（仅支持大疆Matrice 300 RTK配合DJI带屏遥控器使用,升级前请确保设备内没有TF卡） 1）将GL60 Plus挂载在大疆M300飞机，上电后，确保DJI带屏遥控器已经连接WiFi或热点。在DJI带屏遥控器中打开czi Assistant软件，显示注册成功，可以看到GL 60Plus界面的版本信息，点击检查版本。...
Page 14 2）如不是最新固件，将提示有新版本和更新内容介绍，点击立即更新。 3）点击立即更新。...
Page 15 4) 等待下载上传固件。 5) 系统提示上传固件成功，点击确认。...
Page 16 6) 重启后重新打开czi Assistant软件，固件更新完成。...
Page 17: Tf卡固件升级
7.2 TF卡固件升级 www.czi.com.cn 1) 打开成至智能官网：，选择云台照明灯系列，点击GL60Plus的查看详情。 2) 点击软件下载，进入到下载中心。...
Page 18 3) 找到最新固件，下载zip文件，解压后将固件文件夹 “GL60_Plus” 移动至TF卡内。...
Page 19 Contents： Introduction of Gimbal Searchlight Series ....18 II. Disclaimer and Warning ..........18 III. Introduction to the GL60 Plus Gimbal Searchlight..19 IV. GL60 Plus Gimbal Searchlight Installation Tutorial..22 V. czi Assistant installation and use tutorial.......05 VI. DJI Pilot 2 use tutorial .............25 VII.
Page 20: Introduction Of Gimbal Searchlight Series
DJI drone gimbal camera, please make sure it is correctly installed before taking oﬀ. 2. The GL60 Plus works before the drone takes oﬀ, the power is limited to 30% by default (power can be manually adjusted to...
Page 21: Introduction To The Gl60 Plus Gimbal Searchlight
5.TF card slot cover 6.Light outlet Port 1 Port 2 7.Power cable port 1 (connects to the OSDK end on top of the DJI M300 RTK) 8.Power cable port 2 (connects to the OSDK power supply port ③ of the GL60 Plus)
Page 22 Speciﬁcation Model Electrical interface Weight / g Dimensions / mm FOV / ° Supply voltage / V Total power / w LED power / W Luminous ﬂux / lm Luminous eﬃcacy (lm / W) Illumination distance / m Spot diameter / m Illumination area / Central illuminance / Lux...
Page 23: Gl60 Plus Gimbal Searchlight Installation Tutorial
IV. GL60 Plus Gimbal Searchlight Installation Tutorial 1. Remove the protective cover of the GL60 Plus gimbal searchlight interface, align it with the No. 2 gimbal port of the drone, push upwards and gently rotate the GL60 Plus gimbal interface counter-clockwise to align the two red markers and lock the gimbal.
Page 24: Czi Assistant Installation And Use Tutorial
V. czi Assistant installation and use tutorial 1. Download the czi Assistant and copy it to a USB ﬂash disk, and install it on DJI remote control. To get the installation package: ① Go to the oﬃcial website to download czi Assistant and copy it to your USB ﬂash disk or TF high-speed card.
Page 25 3. After clicking the APP icon, enter the interface and click on “Open Floating Window” . 4. The lower right corner shows the word GL60 Plus, indicating the successful identiﬁcation of the load of gimbal searchlight. On the interface, the blue virtual button is the hovering dialogue button. Click “Enter Camera View”...
Page 26 5. Hovering dialogue window options: ① ② ③ ④ ⑤ ① lights on/oﬀ button ,slide the pregress bar to adjust the brightness when the light is on ② Flashing mode ③ Gimbal ﬁne tune ④ Double gimbals synchronized button ⑤ Close the Hovering dialogue window...
Page 27: Dji Pilot 2 Use Tutorial
VI. DJI Pilot 2 use tutorial 1.Into the main interface, the lower right corner shows the word GL60 Plus, indicating the successful identiﬁcation of the load of gimbal searchlight, click on “Enter Camera View” . 2. Click the menu bar, click on “Payload Settings” , and enter the...
Page 28 3. Click the button “Display Real-time Data” , a status display box will pop up in the upper left corner of the main interface, and the real-time temperature, power and other parameters of the GL60 Plus can be observed.
Page 29 4. Click the “LightSwitch” button to realize controlling the on / oﬀ state of the searchlight; click the “Blink” button to enable the ﬂashing mode; slide the “Brightness” progress bar option to adjust the brightness of the gimbal searchlight.
Page 30: Firmware Upgrade
TF in the device.) 1） When mounting the GL60 Plus on the DJI Matrice 300, after powering up, ensure that the DJI remote controller with a built-in screen is already connected to Wi-Fi or a hotspot. Open the czi Assistant software on the DJI remote controller, conﬁrm a...
Page 31 2） If it’ s not the latest ﬁrmware version, you will be prompted with information about a new version and its update details. Click “Update Now” for download the latest version. 3） Click “UPDATE Now” .
Page 32 4） Wait for download and upload the ﬁrmware. 5） The system will prompt that the ﬁrmware update was successful. Click “sure” .
Page 33 6） After restarting, reopen the czi Assistant software to complete the ﬁrmware update.
Page 34: Tf Card Firmware Update
7.2 TF card ﬁrmware update 1） Open the czi oﬃcial website: www.czi.com.cn， select the “Gimbal Searchlight” and “Check the details” . 2） Click on “Software download” , go to the download center.
Page 35 ﬁrmware folder “GL60Plus” to the TF card. 4） Download the ﬁrmware and save in TF card, inserted the TF card into the GL60 plus TF card slot; connect the drone and the GL60 plus, the GL60 plus runs into the re-calibration status, wait a...
Page 36 To learn about the ﬁrmware update of GL60 Plus gimbal search light or to download the latest version of ﬁrmware, please follow the czi oﬃcial website: www.czi.com.cn If you encounter a drone ﬁrmware update that causes the GL60 plus not working properly, please contact your local agent or the manufacturer ASAP.
