ASSEMBLY INSTRUCTION FOR ACME FURNITURE
Thank you for purchasing the quality product.Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment.Separate, identify and count all parts and metal hardware.Compare
with all parts list to be sure all parts are present.if any part(s) are missing or damaged, please contact your local furniture
dealer.For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
Attention:
***
Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.

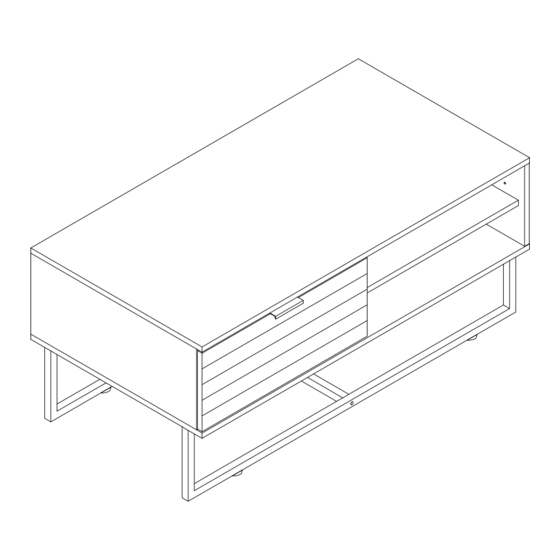

MODEL#LV00323
***Do not fully tighten screws until fully assembled***
P.1/10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acme Furniture LV00323
Summary of Contents for Acme Furniture LV00323
- Page 1 ASSEMBLY INSTRUCTION FOR ACME FURNITURE MODEL#LV00323 Thank you for purchasing the quality product.Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.Separate, identify and count all parts and metal hardware.Compare with all parts list to be sure all parts are present.if any part(s) are missing or damaged, please contact your local furniture...
- Page 2 General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. The three main types of hardware used to assemble this product are: wood dowels, screws and bolts.
- Page 3 COMPONENT PARTS DESCRIPTION PART NAME QTY(PCS) DESCRIPTION PART NAME QTY(PCS) Table Top Right middle riser Table Bottom Active shelf Door panel Left side panel Right side panel Metal tube Mid-side panel Metal tube Left middle riser P.3/10...
- Page 4 Hardware List Ø8x30mm 12 pcs Wooden dowel Ø6x35mm 14 pcs Cam bolt 14 pcs Ø15x11mm Cam lock Ø30mm Sticker 14 pcs Ø6x50mm Screw 10 pcs Ø1/4"x30mm Bolt Allen Key Glue tube Hinge Ø3.5x14mm Bolt 16 pcs Handle Ø8x5x16mm Shelf support pin Ø3.5x14mm Bolt Philips head screwdriver required for assembly...
- Page 5 B x 8 Step 1 Ø6x35mm C x 8 Step 2 Ø15x11mm P.5/10...
- Page 6 B x 6 Step 3 Ø6x35mm A x 6 C x 6 Step 4 Ø8x30mm Ø15x11mm P.6/10...
- Page 7 A x 6 E x 6 G x 1 Step 5 Ø8x30mm Ø6 x50mm D x 14 Step 6 P.7/10...
- Page 8 I x 4 J x 8 K x 2 M x 4 Step 7 Ø3.5x14mm Ø3.5x14mm I x 4 J x 8 Step 8 Ø3.5x14mm P.8/10...
- Page 9 F x 6 G x 1 Step 9 Ø1/4"x30mm F x 4 G x 1 Step 10 Ø1/4"x30mm P.9/10...
- Page 10 L x 8 Step 11 Step 12 P.10/10...
