Media Pointer E540
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEDIA POINTER E540 and is the answer not in the manual?

Questions and answers

Related Manuals for Genius MEDIA POINTER E540

Summary of Contents for Genius MEDIA POINTER E540

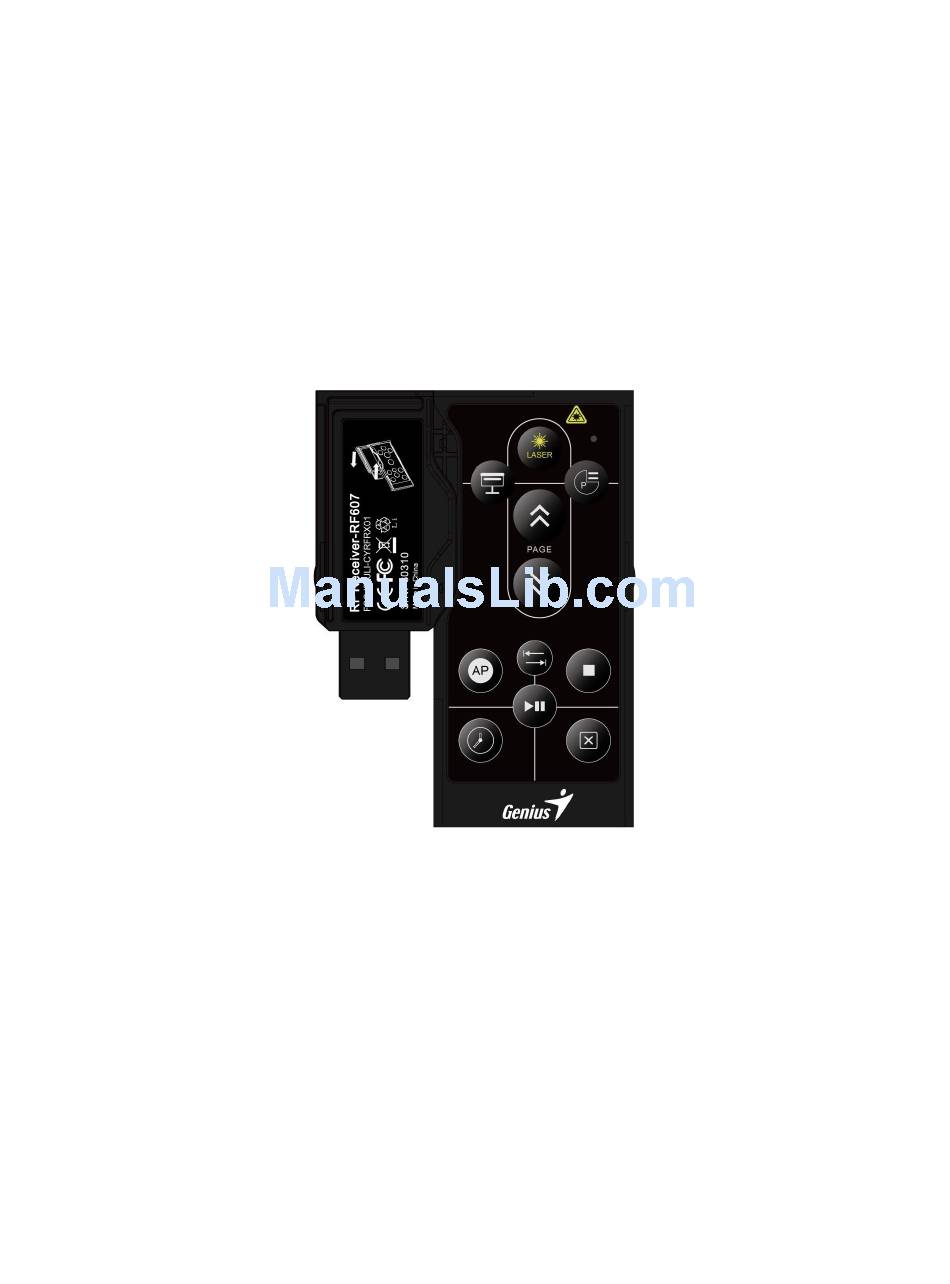

  • Page 1 Media Pointer E540 User’s Manual...

  • Page 2: Table Of Contents

    ENGLISH INDEX 1. Introduction……………………………………………...……………3 2. Features…………..…………………………………………………...4 3. Package contents………………………………………………...……5 4. System Requirements..…………………………...…………………5 5. Mode Feature………….………….………………………………..…5 6. Installation and Operation……..…...………………………..…….….6 7. Light Signal………………………………………………….………20 8. Function Description………...……………….……………………...21 9. Functions in Microsoft® Office……….….………….……….……..24 10. Functions in OpenOffice………...….…………..……….……..26 11. Troubleshooting………………………..…………….…..…….…….28...
  • Page 3 ENGLISH !!! Attention!!! Do not allow minors to use the laser pointer unsupervised. Laser pointers are not toys. Avoid direct eye exposure. Never shine the laser pointer at anyone. The laser pointer is designed to illustrate inanimate objects. Do not point the laser pointer at mirror-like surfaces. A reflected...

  • Page 4: Introduction

    ENGLISH Introduction: This Presenter is more than an ordinary presenter. Its stylish shape makes it more like an art piece to enhance your experience and enjoyment. RF wireless technology makes this Presenter transmit data up to 60 feet (20 meters). Conveniently placed page up and page down buttons help you page through slides effortlessly.

  • Page 5: Features

    ENGLISH Features: 1. Innovative design and omni-directional Presenter for delivering perfect presentations 2. Simple pairing design 3. Presentation hotkey allows you to open PPT/PPS/PDF/OPD/ABW files conveniently 4. Laser pointer helps you keep your audience’s attention. 5. Works with bundled software...

  • Page 6: Package Contents

    TX side supports one LED indicator RX side supports one LED indicator Supports Laser pointer function Use DC 3V power operation: CR 2032 Receiver with USB Port is easy to connect with your computer RX side supports one low speed USB device...

  • Page 7: Installation And Operation

    ENGLISH Installation and operation: 1. Separate presenter and receiver Rotate the presenter and receiver according to the arrow. Pull receiver away from presenter. Separate presenter and receiver.
  • Page 8 3. Installing the receiver Plug the receiver into the USB port of your computer with the golden pins on top. The blue indicator on the Presenter will flash if you press a key and the receiver is inserted in the correct direction.
  • Page 9 ENGLISH XP Installation...
  • Page 10 ENGLISH...
  • Page 11 ENGLISH...
  • Page 12 ENGLISH...
  • Page 13 ENGLISH Vista Installation...
  • Page 14 ENGLISH...
  • Page 15 ENGLISH...
  • Page 16 ENGLISH...
  • Page 17 ENGLISH After installation, “Media Pointer E540 Remote Master” icon will appear in the system tray of Windows in the default setting. When the USB dongle is plugged-in, it shows a green icon . Otherwise, it shows a red icon . Always execute the Launch Manager first before you use...
  • Page 18 ENGLISH If you want to cancel the autorun setting of “Media Pointer E540 Remote Master” in Windows startup, right-click on the “Media Pointer E540 - Remote Master” icon in the system tray and switch to “Enable autorun on startup” to “Disable autorun on startup”.
  • Page 19 ENGLISH 5-2 Right-click on the icon of “Media Pointer E540 Remote Master” in the system tray, then you select these functions: “Open Editor”, “Autorun on startup”, “Clock”, “Press Stop Button to Stop Timer”, “Start Timer” and “Exit” operation. 6. Open your presentation file Press to open the file(s) which you selected using the “Remote...
  • Page 20 ENGLISH 7. How to re-pair the presenter If you cannot perform the previous step successfully, you need to re-pair the presenter. Keep pressing for about three seconds and the blue indicator will flash. Then release the buttons when you see the indicator flashing.

  • Page 21: Light Signal

    -If the pairing is successful, the indicated LED of the presenter and − receiver will both light and then turn off. -If the pairing has failed, the indicated LED of the presenter would be − turned on for about three seconds and then off but the indicated LED of the receiver is always off.

  • Page 22: Function Description

    Laser is locked in default. If you keep pressing for about three Laser pointer seconds, the laser would be unlocked and it will lock if the idle longer than 30 minutes. Open or close the selected (PPT/PDF, etc., file. A. Open the selected file.
  • Page 23 Page up Move forward your slides. Pg Dn Page down Move backward your slides It works in a PPT file when you insert audio, video or a website link. Press to select the inserted file and then press to play it.
  • Page 24 ENGLISH 2. It becomes the OK key when using PowerPoint or when using switch to a different application. Ctrl + S Stop Stop the media file. You can switch the current application Alt + Tab to another if it is opened already.

  • Page 25: Functions In Microsoft® Office

    Laser pointer pointer pointer pointer Start Start Start Start PowerPoint PowerPoint PowerPoint PowerPoint Play Play PowerPoint full-screen full-screen PowerPoint mode mode Clock Clock Clock Clock Page up Page up Page up Page up Page down Page down Page down Page down...
  • Page 26 ENGLISH Input Tab Select grid Select item Play/Pause Input Enter Input Enter Input Enter Stop 9 9 9 9 Switch AP Switch AP Switch AP Switch AP Shut Down Shut Down Shut Down Shut Down...

  • Page 27: Functions In Openoffice

    Laser pointer pointer pointer pointer Start Start Start Start PowerPoint PowerPoint PowerPoint PowerPoint Play Play PowerPoint full-screen full-screen PowerPoint mode mode Clock Clock Clock Clock Page up Page up Page up Page up Page down Page down Page down Page down...
  • Page 28 ENGLISH Input Tab Select grid Select item Play/Pause Input Enter Input Enter Input Enter Stop 9 9 9 9 Switch AP Switch AP Switch AP Switch AP Shut Down Shut Down Shut Down Shut Down...

  • Page 29: Troubleshooting

    Repair the Presenter device by Anti-virus/anti-spy software following the fourth point of interference. “Installation and operation”. Modify the setting of the anti-virus/anti-spy software. Notes: 1. Activate the software before using the Presenter. 2. Do not use rechargeable batteries on this product.
