Genius coralis CRH-15-00 Operating Instructions

ENG
CRH-15-00

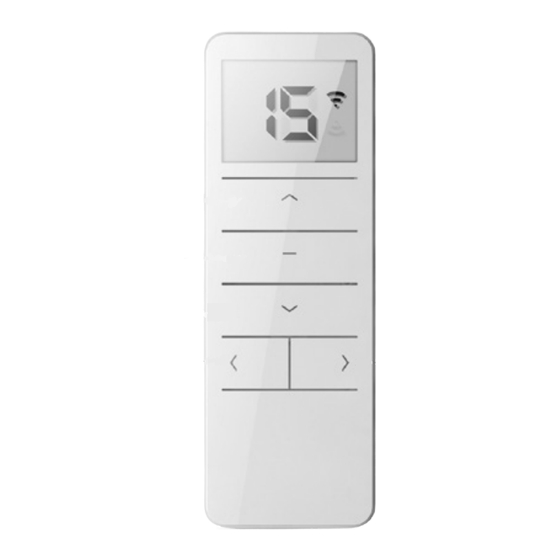

TYPE SPECIFICATIONS
Up button
Stop button
Down button
P1- Channel
set button
TECHNICAL SPECIFICATIONS
· Battery 3V (CR2450)
· Transmitting frequency: 433MHz
· Transmitting power: 10 mW
· Operating temperature: -10°C ÷ 50°C
· Transmission distance: 200m open office,
35m on two walls
MATCHING AND SETTING UP TUBULAR MOTOR
The matching operations between emitter and tubular motor are
detailed in each motor instructions.
During setting, the time between two operations must be shorter
than 4s, otherwise the device will quit the setting program.
Power on
Motors powered by electrical grid either directly or through a power
supply unit contain a buzzer.
A beep sounds to confirm each step in programming. When the
power supply is applied, the buzzer emits a long sound confirming
connection.
Instead, each stage in programming of battery-operated motors is
confirmed by motor turning briefly forward and back.
SELECTING VALID CHANNELS
+
P1+ button P1+ button
P1- button)×1 button, hold
The screen
will display "C"
15 channel emitter specifications
P2X1
Beep once
(or motor turning
briefly forward
and back)
+
P1-
Press P1+ button or P1- button,
selecting the channel (channel
1 to channel 15) you need
The screen will
display "15"
C
P1+ Channel set
button
Setting button
OPERATING INSTRUCTIONS
Warning: to ensure long transmitter life, do not expose to
moisture or shocks.
When using transmitter, if emission distance is obviously too
short or less sensitive than normal, please replace battery.
Dispose of used batteries appropriately.
P2X1
Beep once
(or motor turning
briefly forward
and back)
Back
UpX1
OK
Set up is ok.
Beep once
The up button controls
(or motor turning
the motor clockwise
briefly forward
and back)
DownX1
OK
Set up is ok.
Beep once
The down button
(or motor turning
controls the motor
briefly forward
clockwise
and back))
(In setting mode, press the up
or down button so you can quit
quickly; reset if you want to
change the valid channels)
StopX1
The screen will
display "o"
OK
Setting is ok
