Summary of Contents for SEIF EVEREST Series

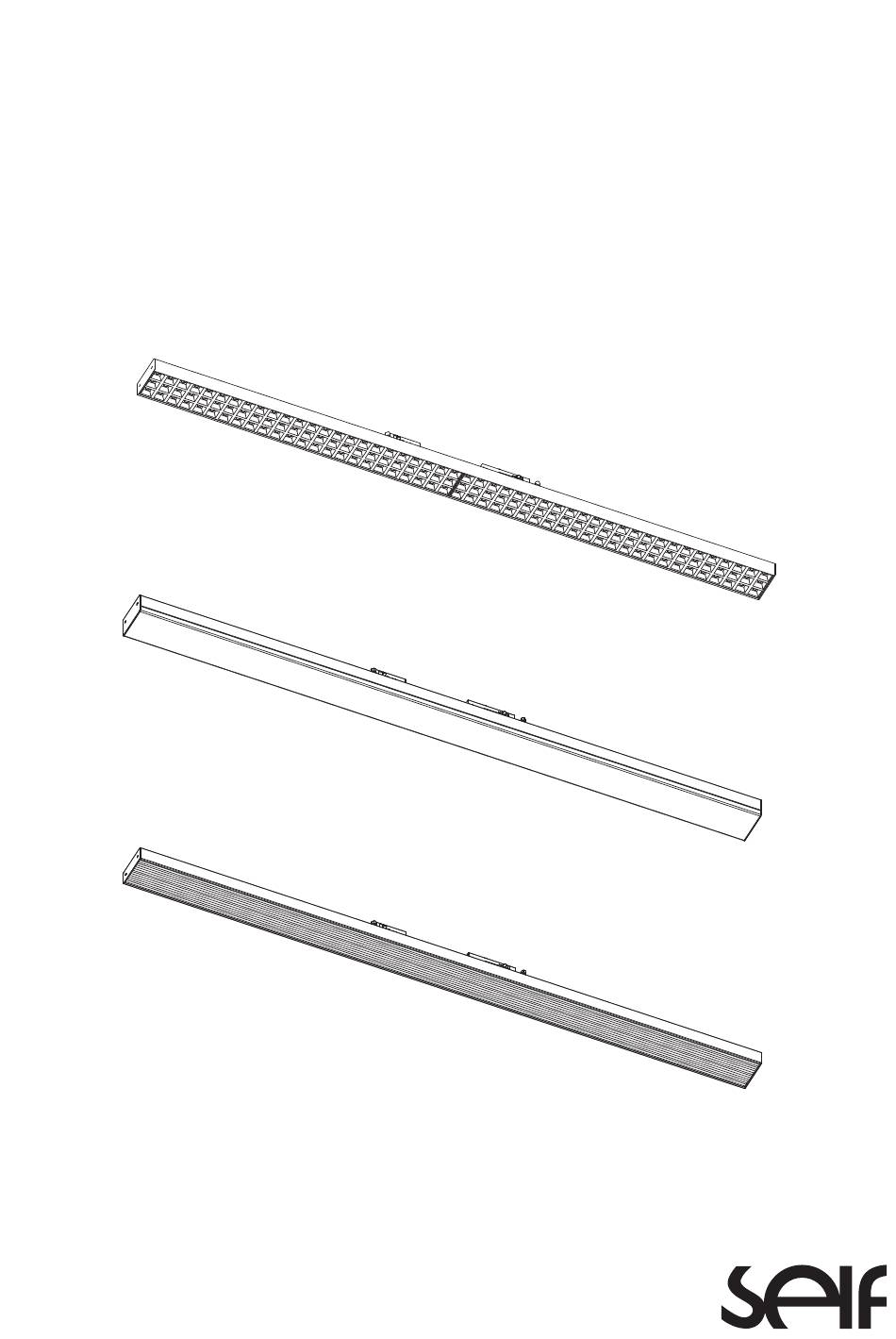

- Page 1 EVEREST...
- Page 2 www.self-electronics.com Instruction Manual Series: EVEREST Read these instructions completely and carefully. ATTENTIONS • Read the instruction carefully before installation, non-observance of this instruction may cause damage to the fixture or hurt to human body. The installation must be carried out by a qualified electrician in accordance with local or national codes. •...
-
Page 3: Track Installation
www.self-electronics.com FOR fixtures(PROVIDED WITH A FACTORY INSTALLED EMERGENCY LIGHTING BATTERY PACK) : • Battery: Rechargeable LiFePO4 6.4V,min 90-minute emergency illumination • Battery charge time: 24hours • Emergency output: Constant power 5W • Test Button: press<2s(emergency function testing) • LED ON(battery charging) •... - Page 4 www.self-electronics.com Surface mounting Installation CLACK! CLACK! 95cm 108.5cm 108.5cm 0.8ft 0.8ft 0.4ft 0.4ft 30N 30N 30N 30N 30N 30N 30N 30N 30N 30N 60N 60N 60N 60N 60N...
- Page 5 www.self-electronics.com Pendant mounting Installation Attention . 3b 10mm . 4. Lock 95cm 108.5cm 108.5cm 0.8ft 0.8ft 0.4ft 0.4ft 30N 30N 30N 30N 30N 30N 30N 30N 30N 30N 60N 60N 60N 60N 60N...
- Page 6 www.self-electronics.com Pendant mounting Installation An end feed only for single-phase circuit. 8-10mm Min .2.5mm Put the lid on and tighten the screws.
- Page 7 www.self-electronics.com Right-angle cutting...
- Page 8 www.self-electronics.com Luminaire Installation Regular fixtures...
-
Page 9: Installation
www.self-electronics.com Fixtures (PROVIDED WITH A FACTORY INSTALLED EMERGENCY LIGHTING BATTERY PACK) WHEN DIP TO L2 OR L3: EM FIXTURES MAY BE TURNED ON/OFF. WHEN DIP TO L1: EM/NL FIXTURES WIRED FOR 24/7 ILLUMINATION. (unswitched)EM EM/NL Installation... -
Page 10: Surface Mounting
www.self-electronics.com Surface mounting press Ensure the luminaire is insert properly to the track otherwise contact spring may be deformed during locking toggle bar. -
Page 11: Pendant Mounting
www.self-electronics.com Pendant mounting press press Ensure the luminaire is insert properly to the track otherwise contact spring may be deformed during locking toggle bar. CLACK! CLACK! - Page 12 www.self-electronics.com Linkable STRAIGHTEN Disassemble Manufacturer Importer Add: No. 1345 JuXian Road, Hi-Tech Add: August-Horch-Str. 7, 51149 Cologne Add: 31/3 Homelea Court, Rivervale, WA, 6103, Park, Ningbo, China 315103 Australia ( For European market ) ( For Oceanian market ) Add: 3264 Saturn Ct, Peachtree Corners, Add: 1707, Opal Tower, Business Bay, Dubai GA 30092 ( For North American market )
