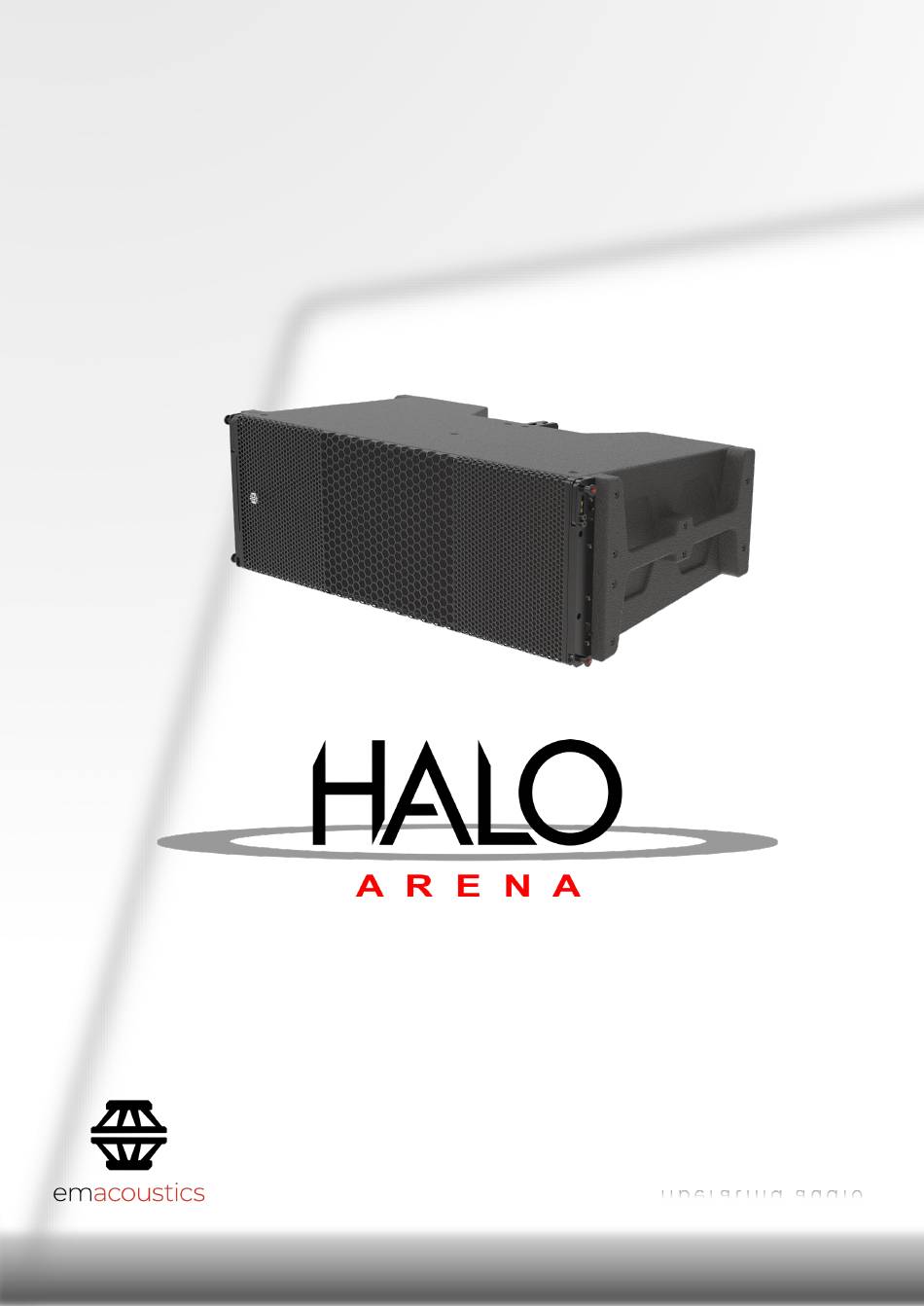

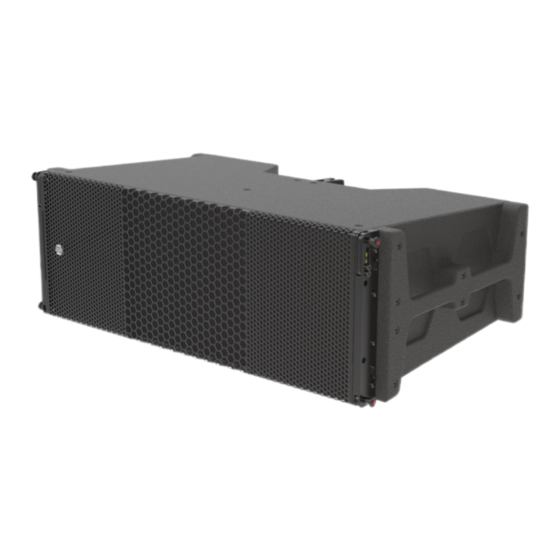

- Page 1 System User Manual v2.1 April 2024 l i b e r a t i n g a u d i o...
-
Page 2: Table Of Contents
6.0 – System Setup ............................22 6.1 – Flying HALO-A systems ....................... 22 6.1.1 – Linking the front Rigging System ..................22 6.1.2 – Splay lock pin storage ......................22 6.2.1 - Prepping HALO-A on WC-HALO-A ..................23 HALO Arena User Manual v2.1 April 2024... - Page 3 8.2 - HALO-A: Removing waveguide/LF drive unit covers ............59 8.3 - HALO-A: Removing the LF Drive Unit ..................59 8.4 - HALO-A: Removing the HF assembly ..................61 8.5 - HALO-A: Replacing a Front Rigging flying pin ..............62 HALO Arena User Manual v2.1 April 2024...
- Page 4 Appendix B – Technical Drawings ......................64 Appendix C – Spare Parts List ........................70 Appendix D – Warranty Information ....................... 71 Limited Warranty ..........................71 Warranty Coverage ..........................71 Returning your EM Acoustics loudspeaker................. 71 HALO Arena User Manual v2.1 April 2024...
-
Page 5: Declarations Of Conformity
DECLARATIONS OF CONFORMITY This declaration applies to: 10M201 – HALO Arena large format line array element This declaration also applies to all product variants, provided that they conform to the original technical specification and have not been subject to any non-factory modifications. -
Page 6: Introduction
Page 6 of 71 1.0 - Introduction Thank you for purchasing the revolutionary HALO Arena line array system from EM Acoustics. The entire HALO system family has been designed and rigorously tested to give you the utmost in sonic performance and many years of reliable, trouble-free operation. -
Page 7: Halo-A System Components
Page 7 of 71 2.0 – HALO-A System Components The HALO Arena system comprises two loudspeaker models, associated flying hardware and accessories. Details of the different components are given below – all enclosures and flying grids work on the same principles and use similar if not identical hardware. -
Page 8: Fg-Halo-A
GS-HALO-A in this way. When using the GS-HALO-A without attaching to ST-218 subwoofers, the GS-HALO-A must be secured using ratchet straps or similar for arrays larger than two elements. Weight 26kg / 57.2lbs HALO Arena User Manual v2.1 April 2024... -
Page 9: Safety-Halo-A
It must not be used as the primary suspension point and should only be used for angle adjustment. Weight (without shackles) 8.2kg / 18lbs Weight (including supplied shackles) 10.2kg / 22.5lbs HALO Arena User Manual v2.1 April 2024... -
Page 10: Safety Considerations
EM Acoustics is in no way liable for any loss, damage or injury caused by such practice. Do not modify or alter the HALO Arena hardware or accessories, nor use them in any way other than that described in this manual. Rigging components supplied as part of the HALO Arena system are in no way interchangeable and should not be used as such. -
Page 11: Secondary Safeties
Safety Inspections Carefully inspect all flying system components prior to use for defects or signs of damage prior to assembling a HALO Arena array. If any components damaged or you suspect them to be damaged, DO NOT USE THEM. Regular scheduled tests – which are much more rigorous than visual inspections – of all rigging components must also be carried out. -
Page 12: Simulation
For safety and acoustic reasons, it is advised that users familiarize themselves with Ease Focus 3. Along with providing the user with accurate simulations for setting up HALO Arena, it also provides importing safety information with regards to load limits. -
Page 13: Halo-A Cabinet Rigging Hardware
5.1 - Halo-A Cabinet Rigging Hardware Lifting & Carrying Handle Front Link (Extended) Front Link Lock Pin Front Enclosure Link Pin Rear Link Angle Set Pin Splay Lock Pin Rear Enclosure Link Pin Splay Lock Pin stow point HALO Arena User Manual v2.1 April 2024... -
Page 14: Halo-A Rear Link Labels
Page 14 of 71 HALO-A Rear Link Labels Link stow pin point when no elements Angle Indicator Splay lock Rear enclosure link pin HALO Arena User Manual v2.1 April 2024... -
Page 15: Fg-Halo-A
Page 15 of 71 5.2 - FG-HALO-A [10] [11] HALO Arena User Manual v2.1 April 2024... - Page 16 When using a single pick point, reference Ease Focus 3 for the pick point for the desired angle. For a half position, line up the red arrow between the appropriate numbers on the spine HALO Arena User Manual v2.1 April 2024...
-
Page 17: Fg-Halo-A Instruction Label
Page 17 of 71 FG-HALO-A Instruction Label HALO Arena User Manual v2.1 April 2024... - Page 18 Page 18 of 71 HALO Arena User Manual v2.1 April 2024...
-
Page 19: Pb-Halo-A
Page 19 of 71 5.3 – PB-HALO-A Pullback Connection Eyes HALO-A Splay Link Attachment point HALO-A Front Link Attachment point HALO-B Front Link Attachment point HALO-B Splay Link Attachment point HALO Arena User Manual v2.1 April 2024... -
Page 20: Gs-Halo-A
Page 20 of 71 5.4 - GS-HALO-A ST-218 Link Attachment point HALO-A Front Link Attachment point HALO-A Splay Link Attachment point HALO Arena User Manual v2.1 April 2024... -
Page 21: Halo-A-Delta
Page 21 of 71 5.5 – HALO-A-DELTA Motor Pickup Point FG-HALO-A Connection Point HALO Arena User Manual v2.1 April 2024... -
Page 22: System Setup
This ensures that the pin does not get in the way, or get trapped between elements as the array moves. HALO Arena User Manual v2.1 April 2024... -
Page 23: Prepping Halo-A On Wc-Halo-A
Remove the Front and Rear Enclosure Link Pins Remove the WC-HALO-A Rear Link Pin. (Leave the link in the stowed transit position) Step 3. Lower first enclosure onto WC-HALO-A and locate on the front links. HALO Arena User Manual v2.1 April 2024... - Page 24 HALO-A Rear link so it inserts into the receptacle on the HALO-A splay rigging. Insert Rear Enclosure Link pin on HALO-A to lock in place. Step 6. Insert the WC-HALO-A Link Pin to lock in the upright position. HALO Arena User Manual v2.1 April 2024...
- Page 25 Insert the Front Enclosure Link pins on both sides to secure the fronts of the enclosures together. Step 9. Remove the Rear Enclosure Link pin from the upper HALO-A and the Angle Set pin from the lower HALO-A. HALO Arena User Manual v2.1 April 2024...
- Page 26 Repeat steps 7-10 to add further HALO-A enclosures up to a maximum of four per WC-HALO-A. The optional TC-HALO-A padded transit cover fits over completed WC-HALO-A with four enclosures to add additional protection during transit. HALO Arena User Manual v2.1 April 2024...
-
Page 27: Flying From Wc-Halo-A
Remove the Splay Link Attachment pin from its location in the spine of the FG-HALO-A. HALO Arena User Manual v2.1 April 2024... - Page 28 FG-HALO-A spine to prevent you lowering too far. Insert the Splay Link Attachment pin back into its location on the grid spine, thereby securely attaching the FG-HALO-A to the stack of HALO-A elements. HALO Arena User Manual v2.1 April 2024...
- Page 29 Once the array is clear of the ground, move the Splay Lock pins from their stow positions into their splay lock positions – this ensures the angles are now fixed and cannot move. HALO Arena User Manual v2.1 April 2024...
- Page 30 Reinsert Front Enclosure Link pins to lock the two blocks together at the front. HALO Arena User Manual v2.1 April 2024...
- Page 31 This will lock the angles of the bottom four enclosures. Be aware, the splay link on the first element of the lower four should remain retracted at this point. HALO Arena User Manual v2.1 April 2024...
- Page 32 Once it is hanging, move the Splay Lock pin on the element from its stow location to its use location to secure the whole array. HALO Arena User Manual v2.1 April 2024...
- Page 33 Lower it to the floor and set aside. Step 15. Repeat steps 9 to 14 again to continue to assemble the array according to your simulation – up to a maximum of 24 elements. HALO Arena User Manual v2.1 April 2024...
-
Page 34: Ground Stacking With Fg-Halo-A
EASE Focus simulation, and insert the Angle Set pin into the appropriate hole. Pay close attention to the label on the FG-HALO-A which illustrates the difference between indicated angle and achieved angle on the FG-HALO-A. HALO Arena User Manual v2.1 April 2024... - Page 35 It will rest on the splay lock pin of the lower enclosure, preventing it from falling too far. Step 7. Insert the Rear Enclosure Link pin which will join the two enclosures together. HALO Arena User Manual v2.1 April 2024...
- Page 36 8 HALO-A elements. FOR GROUND STACKS GREATER THAN TWO HALO-A ELEMENTS, THE FG-HALO-A MUST BE SECURED TO THE SURFACE IT IS RESTING ON BY RATCHET STRAPS OR SIMILAR. HALO Arena User Manual v2.1 April 2024...
-
Page 37: Ground Stacking With Gs-Halo-A
Prepare the first HALO-A enclosure by extending the front rigging links as described in 6.1.1 above. Invert the HALO-A and lower it into position so that the front links engage in their receptacles on the GS-HALO-A.. HALO Arena User Manual v2.1 April 2024... - Page 38 Insert the Angle Set pin on the HALO-A to select the desired angle and lock it in place. Pay close attention to the label on the GS-HALO-A which illustrates the difference between indicated angle and achieved angle on the GS-HALO-A. HALO Arena User Manual v2.1 April 2024...
- Page 39 Select the desired angle from your EASE Focus simulation, and insert the Angle Set pin into the corresponding location hole. Step 11. Repeat steps 8-10 until your ground stack is complete, up to a maximum of 6 HALO-A elements. HALO Arena User Manual v2.1 April 2024...
-
Page 40: Using The Halo-A-Delta
FG-HALO-A pickup link. The CHAIN-HALO-A has a chain hook included so that the chain length can be adjusted as necessary. Using the CHAIN-HALO-A allows you to create sufficient space below the motor for the chain bag to sit safely. HALO Arena User Manual v2.1 April 2024... -
Page 41: Using The Pb-Halo-A
Motors should be positioned to ensure they are as vertical as possible when the array is in its final position. PB-HALO-A SHOULD ONLY BE USED PULL-BACK ARRAYS OF 8 ELEMENTS OR FEWER. HALO Arena User Manual v2.1 April 2024... -
Page 42: To Underhang Halo-B As A Downfill System
HALO-B front enclosure links engage in the receptacle on Step 4. Insert the HALO-B Front Link Attachment pins back in place to secure the front of the PB- HALO-B to the top HALO-B enclosure. HALO Arena User Manual v2.1 April 2024... - Page 43 Step 8. Line the HALO-A hang up with the PB-HALO-A front links. Once completely lined up, replace the Front Enclosure Link pins to secure the front of the PB-HALO- bottom HALO-A enclosure. HALO Arena User Manual v2.1 April 2024...
- Page 44 B elements. Continue to lift until the PB-HALO-A rear link engages in the receptacle for the Rear Link Attachment of the bottom HALO-A enclosure. Insert the Rear Enclosure Link pin in the bottom HALO-A to secure the PB-HALO-A in place. HALO Arena User Manual v2.1 April 2024...
- Page 45 As each enclosure is locked in place, use the Angle Set pin to ensure each element is correctly angled as per your EASE Focus simulation. Continue to repeat Step 10 up to a maximum of six HALO-B enclosures in the underhang. HALO Arena User Manual v2.1 April 2024...
-
Page 46: Fitting An Inclinometer
M4 countersunk machine screws and Nyloc nuts supplied with the FG-HALO-A. Locate the inclinometer on the mounting plate, and insert the four screws as indicated. Secure them underneath with M4 Nyloc nuts, and tighten them accordingly. HALO Arena User Manual v2.1 April 2024... -
Page 47: Powering The System
Page 47 of 71 7.0 – Powering the System HALO Arena is not just the loudspeakers, but the amplification and control package forms a vital part of the system for it to function as intended. The use of DQ or Di Series... -
Page 48: Amplifier Requirements
& phase response and a significant reduction of off-axis parallax effects. As it is a turnkey system, HALO Arena must be used with DQ or Di Series amplifiers, however these must be the 2 generation units equipped with FIR technology. -
Page 49: Presets And Settings
As illustrated, both examples above would use the same preset file recalled into the amplifier, all that is different is the number of amplifier channel pairs required – all of which require the same preset recalled. HALO Arena User Manual v2.1 April 2024... - Page 50 A, and one module of amplifier B As illustrated, regardless of the combination of amplifiers used, or how the loudspeakers are wired, the preset to be recalled is determined by the number of elements in the array. HALO Arena User Manual v2.1 April 2024...
-
Page 51: Fir Latency
EQ filters applied to only one section of an array will impose a group delay on that part of the system, which will bring further acoustical issues. HALO Arena User Manual v2.1 April 2024... -
Page 52: Use With The Dq & Di Series Advanced System Amplifiers
7.3 - Use with the DQ & Di Series Advanced System Amplifiers HALO Arena requires the proprietary EM Acoustics Advanced System Amplifiers (DQ or Di Series), or the DSC48 Digital System Controller to function correctly and should not be used with any other amplifier or processor combination. -
Page 53: System Connectivity
In order to achieve the designed headroom and output from your HALO-A system, sufficient amplifier power must be available. Most EM Acoustics amplifier models can be used to drive HALO-A, however due to their available output power, the number of elements that can be driven per amplifier varies. - Page 54 Page 54 of 71 There are a number of bespoke cable assemblies which can be supplied by EM Acoustics to ensure correct wiring for your system, both using DQ Series amplifiers alone and also using the DQRack touring solution. SPLIT-HALO-A-19P 19-pole pin Feed &...
-
Page 55: Use With The Dqrack
Detailed below are some examples of how you can use the DQRack to power a system appropriately in a touring environment, and the various accessories and other parts that would be required. HALO Arena User Manual v2.1 April 2024... -
Page 56: System Examples With The Dqrack
2 x SPLIT-HALOA-19P 2 x male-female 19-pole connector cables (16 cores minimum) of suitable length 18 x NL4-NL4 (4-core cable) link cables – optimum length 0.5m 19-pole 19-pole male-female male-female cable cable SPLIT-HALOA-19P SPLIT-HALOA-19P HALO Arena User Manual v2.1 April 2024... - Page 57 Many other combinations are possible, using the various adapters available – splits can be put in place either near the DQRack or near the loudspeakers, depending on what is required in your setup configuration. HALO Arena User Manual v2.1 April 2024...
-
Page 58: Servicing Information
Page 58 of 71 8.0 – Servicing Information All HALO Arena components can be removed for service purposes if required, using the minimum of tools. 8.1 - HALO-A: Removing the grille TOOLS REQUIRED: 5mm Allen key Lie the enclosure on its’ back and remove the two M6x20 socket cap screws in each end of the grille. -
Page 59: Halo-A: Removing Waveguide/Lf Drive Unit Covers
HF drive unit exits, and then begin to tighten. Start by tightening the M5x30 button head socket screws to secure the throat section, and then proceed to the outer edge. 8.3 - HALO-A: Removing the LF Drive Unit HALO Arena User Manual v2.1 April 2024... - Page 60 Tighten opposing bolts, working around the drive unit until all bolts are appropriately tightened. Replace the waveguide/drive unit cover parts and the grille as described above. HALO Arena User Manual v2.1 April 2024...
-
Page 61: Halo-A: Removing The Hf Assembly
Replace the six M6x30 socket cap machine screws – with their flat and spring washers as detailed in 8.1 above – HALO Arena User Manual v2.1 April 2024... -
Page 62: Halo-A: Replacing A Front Rigging Flying Pin
It is imperative that you contact EM Acoustics before attempting this for detailed instructions and relevant replacement machine screws, as removing the rear rigging assembly is a potential safety issue. -
Page 63: Halo-A 2-Way Large Format Line Array Element
Measured in half-space at 2m with 4W sine wave input and referenced to 1m. Nominal dispersion, measured in an anechoic environment and averaged over stated bandwidth. Calculated and verified by subjective listening test of familiar program material. HALO Arena User Manual v2.1 April 2024... -
Page 64: Appendix B - Technical Drawings
Page 64 of 71 Appendix B – Technical Drawings HALO Arena User Manual v2.1 April 2024... - Page 65 Page 65 of 71 HALO Arena User Manual v2.1 April 2024...
- Page 66 Page 66 of 71 HALO Arena User Manual v2.1 April 2024...
- Page 67 Page 67 of 71 HALO Arena User Manual v2.1 April 2024...
- Page 68 Page 68 of 71 HALO Arena User Manual v2.1 April 2024...
- Page 69 Page 69 of 71 HALO Arena User Manual v2.1 April 2024...
-
Page 70: Appendix C - Spare Parts List
CDU-1405 replacement 16 ohm 1.4” exit HF drive unit 04A044 RFG-HALO-A replacement grille/fabric for HALO-A 05A087 PIN-0.375/0.813 ball-lock flying pin – HALO-A front rigging 05A088 PIN-0.5/1.625 grip ball-lock flying pin - HALO-A splay rigging HALO Arena User Manual v2.1 April 2024... -
Page 71: Appendix D - Warranty Information
Serial numbers must be quoted in all correspondence relating to the claim. EM Acoustics or its representatives are in no way liable for any loss or damage in transit, and hence it is recommended that the sender insure the shipment. EM Acoustics will pay for return freight should the repair be covered under warranty.
