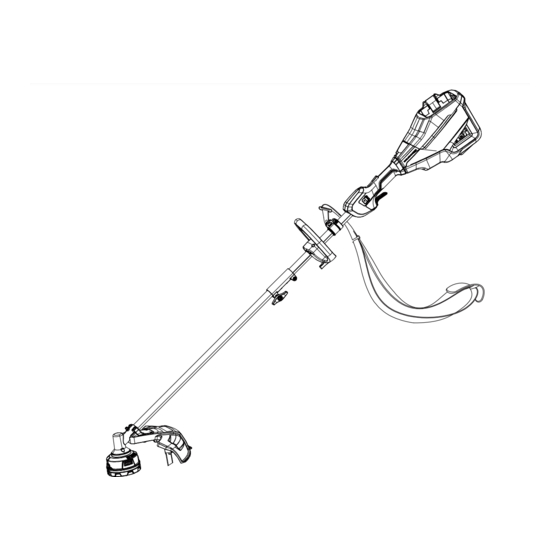

- Page 1 80V BRUSHLESS 16" STRING TRIMMER 267-3199 STB460 OPERATOR’S MANUAL CAUTION To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ......................Page 2 Safety Instructions ...................... Page 3 Overview ........................Page 7 ......................Page 7 Assembly ........................Page 8 Operation ........................Page 11 Maintenance ......................Page 15 Troubleshooting ......................Page 16 Note .......................... Page 18 Warranty ........................ -
Page 3: Safety Symbols
SAFETY SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. Symbol Name Designation / Explanation Volts Voltage Amperes... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS The purpose of safety symbols is to attract our attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The symbol warnings do not by themselves eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures. - Page 5 • Don’t use in the rain. Store indoors. • Use only Masterforce Batteries: BAB70021, • Do not operate in poor lighting. 267-3313, BAB726, BAB727, BAB728, • Keep all parts of your body away from any BAB729 and other BAB series batteries.
- Page 6 SAFETY INSTRUCTIONS • Use only identical manufacturer’s replacement wash immediately with soap and water, parts and accessories. Use of any other then neutralize with lemon juice or vinegar. parts may create a hazard or cause product If liquid gets into your eyes, flush them with damage.
- Page 7 SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS instructions for use and care. PROPOSITION 65 This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.
-
Page 8: Overview
OVERVIEW SPECIFICATIONS Type Cordless, battery operated Motor 80V Brushless String Cutting Width 14 16 in. Line Diameter 0.095" (2.4 mm) Speed 6500 / 5700 ± 10% RPM The recommended ambient temperature range: Item Temperature String trimmer storage temperature range 32°F (0°C) - 113°F (45°C) String trimmer operation temperature range 32°F (0°C) - 113°F (45°C) Battery charging temperature range... -
Page 9: Assembly
ASSEMBLY ASSEMBLY UNPACKING WARNING This product requires assembly. Read and under stand entire Operator’s M anual for each • Carefully remove the product and any optional attachment used on this power accessories from the box. head and follow all warnings and instructions. •... - Page 10 ASSEMBLY LINE TRIMMER CUT-OFF BLADE To remove the attachment from the power head The trimmer is equipped with a line trimming For removing or changing the attachment: cut-off blade on the guard. Replace the line 1. Stop the power head. maintain best performance.
- Page 11 ASSEMBLY SHOULDER STRAP To install the battery pack 1. Align the lift ribs on the battery pack with the grooves in the battery compartment. FIG. 5 2. Push the battery pack into the battery compartment until the battery pack locks into place.
-
Page 12: Operation
OPERATION LOCK-OUT SWITCH OPERATION TIPS The lock-out switch reduces the possibility • Hold the string trimmer with your right hand of accidental starting. The lock-out switch is on the rear handle and your left hand on located on the handle above the switch trig- ger. - Page 13 OPERATION ADJUST THE LENGTH OF THE FIG. 5 CUTTING LINE While you operate the machine, the cutting line gets worn shorter. You can adjust the length of the cutting line. 1. Bump the trimmer head against the ground while you operate the machine. 2.
- Page 14 OPERATION REMOVE THE STRING TRIMMER CLEANING DEBRIS AND HEAD OR RE-INSTALLING TRIM- OBSTRUCTIONS FROM THE MER HEAD STRING TRIMMER HEAD 1. Remove the battery pack. transmission hole 2. Firmly press in the tabs on each side of the 2. Turn the trimmer head clockwise to loosen spool cover.
- Page 15 OPERATION CUTTING TIPS • Keep the trimmer tilted toward the area being cut; this is the best cutting area. • The trimmer cuts when moving the unit from right to left. This will avoid throwing debris at the operator. Avoid cutting in the •...
-
Page 16: Maintenance
MAINTENANCE STORING THE POWER HEAD WARNING When servicing, • Clean all foreign material from the product. use only identical replacement parts. Use • Store it in a well-ventilated place that is of any other parts may create a hazard or inaccessible to children. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The machine does not No electrical contact 1. Remove battery pack. start when you push between the machine 2. Check contact and install the battery pack the trigger. and the battery pack. again. The battery pack is Charge the battery pack. - Page 18 TROUBLESHOOTING The line keeps The machine is used 1. Cut with the tip of the line, avoid stones, breaking. incorrectly. walls and other hard objects. 2. Advance the cutting line regularly to keep full cutting width. The grass winds Cut tall grass at 1.
-
Page 19: Note
NOTE Page 18... - Page 20 NOTE Page 19...
- Page 21 NOTE Page 20...
- Page 22 NOTE Page 21...
-
Page 23: Warranty
WARRANTY 4-YEAR LIMITED WARRANTY This MASTERFORCE™ brand power tool carries our famous No Hassle 4-Year Limited Warranty to the original purchaser. If, during normal use, this MASTERFORCE™ power tool breaks or fails due to a defect in material or workmanship within four (4) years from the date of original purchase, simply bring the tool with the original sales receipt back to your nearest MENARDS ®... - Page 24 © 2020 Menard, Inc., Eau Claire, WI 54703 09/2023 Page 23...
Need help?
Do you have a question about the STB460 and is the answer not in the manual?
Questions and answers
I put line in head and then it wont wind in
The line may not wind into the head of the MasterForce STB460 due to one or more of the following reasons:
1. The slots on the spool cap and string head are not aligned.
2. The line is not inserted correctly through the string head holes.
3. The spool cap is not turned clockwise to wind the line.
4. There is debris or old line obstructing the spool or spool housing.
5. The line is not pulled evenly through both sides.
Ensure proper alignment, clean components, and follow the correct winding procedure.
This answer is automatically generated
