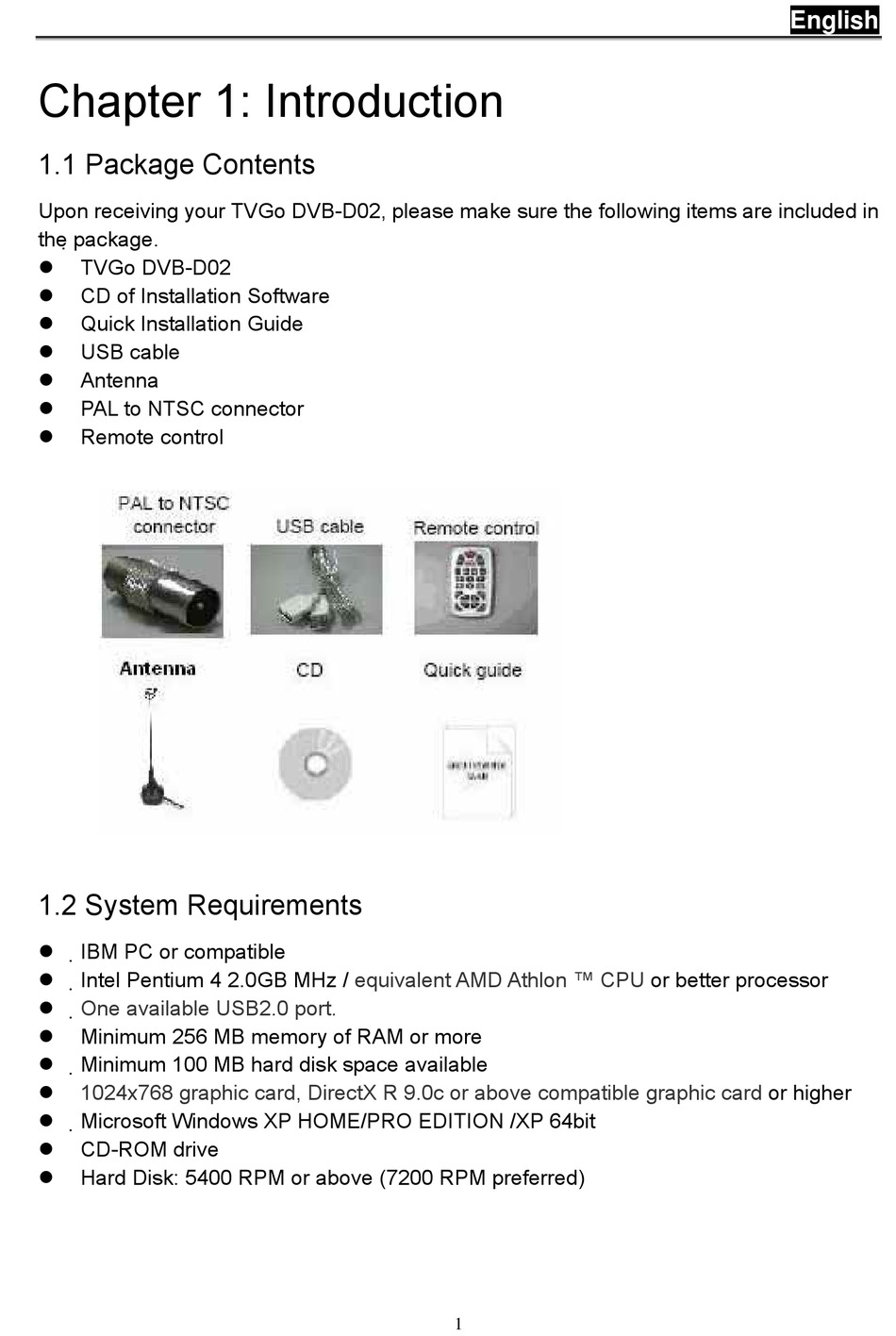

Chapter 1: Introduction
1.1 Package Contents
Upon receiving your TVGo DVB-D02, please make sure the following items are included in
the p ackage.
TVGo DVB-D02
CD of Installation Software
Quick Installation Guide
USB cable
Antenna
PAL to NTSC connector
Remote control
1.2 System Requirements
I BM PC or compatible
I ntel Pentium 4 2.0GB MHz /
O ne available USB2.0 port.
Minimum 256 MB memory of RAM or more
M inimum 100 MB hard disk space available
1024x768 graphic card, DirectX R 9.0c or above compatible graphic card
M icrosoft Windows XP HOME/PRO EDITION /XP 64bit
CD-ROM drive
Hard Disk: 5400 RPM or above (7200 RPM preferred)
equivalent AMD Athlon ™ CPU
1
English
or better processor
or higher
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Genius TVGo DVB-D02
Summary of Contents for Genius TVGo DVB-D02
-
Page 1: Chapter 1: Introduction
English Chapter 1: Introduction 1.1 Package Contents Upon receiving your TVGo DVB-D02, please make sure the following items are included in the p ackage. TVGo DVB-D02 CD of Installation Software Quick Installation Guide USB cable Antenna PAL to NTSC connector Remote control 1.2 System Requirements... -
Page 2: Chapter 2: Getting Started
English Chapter 2: Getting Started 2.1 Connect TVGo DVB-D02 To install the TVGo DVB-D02 into your computer, follow the steps below: 1. Connect the TV antenna cable to the connector. 2. Connect the Device to PC USB Hub. 2.2 Device Driver Installation for Windows XP 1. - Page 3 English 3. Click “Next” button to ignore the install wizard. It will cancel automatically after installation of a new device. 4. Choose “Install from a list or specific location (Advanced). Click “Next” button. 5. Check the “include the location in the search”...
- Page 4 English 6. Click “Continue Anyway” button and finish the installation. 7. Click “Finish” button.
- Page 5 English 2.3 Install the TVGo DVB-D02 utility software. 1. Click “Setup Utility” to begin the software installation. 2. Click “Next” button to start the installation 3. Click “Next” button or choose setup folder for installation.
- Page 6 English 4. Then click “Finish” to complete the installation of TVGo DVB-D02 Box. 5. Click “OK” button to reboot the PC.
-
Page 7: Chapter 3: Launch The Software
Click Start on Windows Taskbar, and then select Programs\TVGo DVB-D02 1. Click Start on Windows Taskbar, and then select Programs\ TVGo DVB-D02 2. Click the AP ” TVGo DVB-D02” 3. Then the scanning device will start. - Page 8 English For first time operation, you should complete the setting and scanning channel. 1. Although the TV tuner on your TVGo DVB-DO2 is fixed, you have to set up the country or region right the first time you launch TVGo DVB-DO2. Click “Next”...
- Page 9 English 4. Select the correct region from the list and click “Next” button. 5. Select the input signal source and click “Finish”. 6. Click “OK” button to start channel searching.
- Page 10 English 7. Available channel information will be shown on the list. 8. Click the “OK” button to finish the auto searching. 9. Click the “Finish” button.
- Page 11 English 10. The following shows the process how to set up DVB-T. Select “DVB-T” and click “Next” button to continue. 11. Click the “Next” button. 12. Select the correct region from the list. Then click “Search”.
- Page 12 English 13. Click the “OK” button to start channel searching. 14. Click the “Finish” button to finish the set up process. 15. Click the “Finish” button to complete the process.
- Page 13 English 3.2 Changing between DVB-T and Analog Enter the Setting function and go to “Device”. Click “Video Source” to change between DVB-T and Analog. Click” Search” icon to search TV channel.
- Page 14 5. Search TV channel: Click to search available TV channel. 6. Double click for full screen display. 3.4 Recorder Video Click “Record” button to start recording video. You can use the control panel or setting the table to set the video format. You can set it to following format.
-
Page 15: Snapshot Image
Mpeg1, 2, 4; Avi, DVD, VCD, HiDVD… 3.5 Snapshot Image Click the “Snapshot” button to capture still image. Click the “Setting” button to setup the image format. The USB TV Super Mini Hybrid supports BMP and JPEG image format. Please choose your... -
Page 16: Playback Video
Step Forward: To step forward play video Slow Backward: To slow backward play video Slow Forward To slow forward play video file Play/Pause: Click to play the current video file, click again to pause, click once more to continue play... -
Page 17: Browse Image
To fast forward play video file Mute: To turn off sound, click again to restore. Volume Adjust Drag the slider to adjust volume, or use the Left and Right arrow on the keyboard. Stop Play: Stop playing current video file Snapshot: Save current video as BMP or JPG image. -
Page 18: Playback Setting
English Skin: To set appearance of image browse window, you can select your favorite panel from the right box. Zoom out: To shrink display current image Zoom in: To magnify current image Match Zoom: You can select the matched display mode in the right box. - Page 19 English Format: select image format by clicking “BMP” or “JPEG”. Adjust scroll bar to change JPEG image quality. Saving Directory: click “Browse” to change picture save location. Options: select “Rename after snapshot” to rename image right after snapshot. Auto delete invalid files: remove invalid files.
-
Page 20: Chapter 4: Remote Control
English Chapter 4: Remote Control Button Win XP Open/Close TV Software Record TV program Change screen size to original window size or return Capture current screen and save Number 0 ~ 9 0 — 9 Switch to the next channel... - Page 21 English Decode channel inputting available Click to start Time-shift feature, click once more time to play recorded show. Go back to the last channel Switch input signal source between TV, Composite, and S-video...
