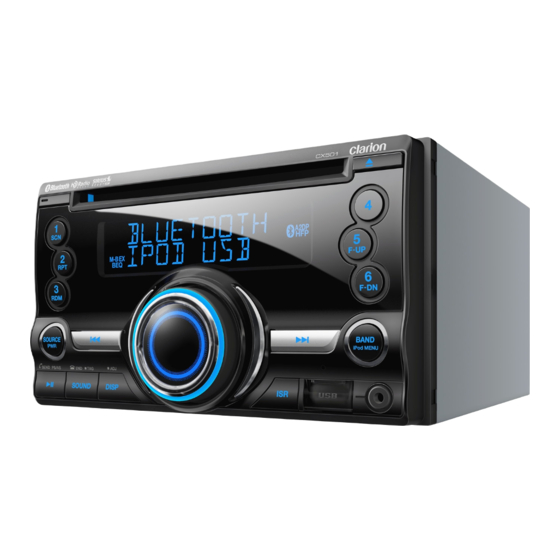

2-din bluetooth cd/usb/mp3/wma receiver
Hide thumbs Also See for CX501:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Owner's manual
Mode d'emploi
Manual de instrucciones
CX501
®
2-DIN Bluetooth CD/USB/MP3/WMA RECEIVER
LECTEUR CD/USB/MP3/WMA 2-DIN Bluetooth
RECEPTOR CD/USB/MP3/WMA TAMAÑO 2-DIN CON Bluetooth
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion CX501

Summary of Contents for Clarion CX501

  • Page 1 Owner’s manual Mode d’emploi Manual de instrucciones CX501 ® 2-DIN Bluetooth CD/USB/MP3/WMA RECEIVER LECTEUR CD/USB/MP3/WMA 2-DIN Bluetooth RECEPTOR CD/USB/MP3/WMA TAMAÑO 2-DIN CON Bluetooth ® ®...
  • Page 2 Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Cher client: Nous vous remercions d’avoir acheté...

  • Page 3: Table Of Contents

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual. Contents 1. FEATURES ... 3 2.

  • Page 4: Precautions

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

  • Page 5: Handling Compact Discs

    ® owned by the Bluetooth SIG, Inc. and any use of such marks by Clarion Co.,Ltd. is under license. Other trademarks and trade names are those of their respective owners. • SIRIUS, the SIRIUS Dog logo and related marks are trademarks of SIRIUS XM Radio, Inc.

  • Page 6: Controls

    [DISP] [MICROPHONE] • Built-in microphone for Bluetooth telephone. [DIRECT] buttons • Store radio stations in memory or recall it directly while in radio mode. [SCN] button • Perform scan play for 10 seconds of each track while in CD/MP3/WMA/USB mode.

  • Page 7: Remote Control

    • Increases and decreases volume. [MUTE] button • Turns mute function on and off. [ISR] button • Recalls ISR radio station stored in memory. • Press and hold the button (2 sec.) to store current station in ISR memory (radio mode only).

  • Page 8: Inserting The Battery

    4 Replace the cover and slide in until it clicks into place. Insertion guide CX501 [RDM] button • Press to perform random play. • Press and hold the button (1 sec.) to perform all random play.

  • Page 9: Sound Adjustment

    2. Each time you press the [SOURCE] button, the operation mode changes in the following order: Tuner (HD Radio) ➜ (SIRIUS Satellite radio) ➜ CD/MP3 ➜ USB/iPod ➜ BLUETOOTH ➜ AUX ➜ Tuner (HD Radio)... ∗ iPod can connect to this unit via USB cable.
  • Page 10 3-3. Turn the [ROTARY] knob to select the setting. BASS<G>:The factory default setting is “0”. (Adjustment range: +7 to CX501 BASS<F>: The factory default setting is “50”. BASS<Q>:The factory default setting is “1”. “IMPACT” MID<G> : The factory default setting is “0”.
  • Page 11 ∗ The factory default setting is “THROUGH” (through). Note: • During SOUND adjustment mode, if no operation is performed for more than 10 seconds, this mode can be cancelled and return to previous mode. “120” “THROUGH ”. “0 ”. NORMAL ”. CX501...

  • Page 12: Radio Operations

    Radio Operations Listening to the radio 1. Press the [SOURCE] button and select the radio mode. 2. Press the [BAND] button and select the radio band. Each time the button is pressed, the radio reception band changes in the following order: FM1 ➜...

  • Page 13: Sirius Satellite Radio Operations

    • The Parental Locked, unsubscribed and invalid channels will be skipped and can not be tuned. Recalling a preset station A total of 18 satellite radio stations can be stored. 6-SR1, 6-SR2 and 6-SR3 This allows you to store your favorite satellite radio stations in memory for later recall.

  • Page 14: Scan Function

    SIRIUS Satellite Radio Operations Receiving stations selected by category Satellite Radio allows you to select broadcast channel category (contents). 1. Press and hold the [BAND] button (1 sec.) to select the category selection mode. ∗ It press and hold once again, return to the channel selection mode.
  • Page 15 Unskip all channel function This function allows you to unskip the skipped channel. 1. Press and hold the [DISP] button. 2. Press the [x] or [v] button to select “UNSKIP ALL CH”. 3. Press and hold the [ROTARY] knob. CX501...

  • Page 16: Hd Radio Operations

    HD Radio Technology. Note: • Not all FM or AM stations offer HD Radio (digital) broadcasting. You can receive both analog and digital stations with the unit. • The following operations are the same as for CD mode: ∗...

  • Page 17: Itunes Tagging

    • “iTunes Tagging” function works by connecting THD300/THD301(sold separately). iPod compatibility For detailed information on the playable iPod models, see our home page: www.clarion.com. Note: • This system will not operate or may operate improperly with unsupported versions. Tagging music Tune to an HD Radio to begin tagging music.

  • Page 18: Cd/Mp3/Wma Operations

    Instead, “- - : - -” will appear in the play time display. ∗ When MP3/WMA files are played, a little no sound part is caused between tunes. CX501 ● Logical format (File system) 1. When writing MP3/WMA file on a CD-R disc or CD-RW disc, please select “ISO9660 level 1, 2 or JOLIET or Romeo”...

  • Page 19: Selecting A Track

    ● Track-down 1. Press the [x] button to move back to the beginning of the current track. 2. Press the [x] button twice to move back to the beginning of the previous track. mark and ] button CX501...
  • Page 20 This function allows you to play the current track repeatedly. 1. Press the [RPT] button to perform repeat play. CX501 ● Folder repeat play This function allows you to play a track currently being played in the MP3/WMA folder repeatedly.

  • Page 21: Bluetooth Operations

    ● Switch to the secret call mode 1. Press the [BAND] button to switch to the secret call mode. ∗ When you switch to the secret call mode, you will not hear the call from set and only can hear it from your mobile phone. CX501...
  • Page 22 2-1. Select “PAIRING”. 3-1. Press the [ROTARY] knob. 3-2. Turn the [ROTARY] knob to select “TELEPHONE” or “AUDIO”. CX501 3-3. After select the “TELEPHONE”, press and hold the [ROTARY] knob (1 sec.) to memory. 4-1. Turn the [...
  • Page 23 NOISE This option is used to set noise volume in the car Bluetooth system. 2-1. Press “NOISE”. 3-1. Turn the [ROTARY] knob to select “LOW” or “HIGH”. ∗ The factory default setting is “LOW”. AUTO ”. CX501...
  • Page 24 2-1. Select “ADDRESS”. The Bluetooth address 8 figures appears in the display. 3-1. Turn the [ROTARY] knob to display. CX501 ● Bluetooth Name This will display the name of the Bluetooth. 2-1. Select “BT NAME”. The Bluetooth name appears in the display.

  • Page 25: To Change Adjustment Setting

    ● Setting the anti-theft function (CATS) “CATS” is the acronym of “Clarion Anti-Theft System”. When you set a PIN code (called as “Personal Code”), a theft is prevented by disabling the operation of the unit at the theft.
  • Page 26 • The [RESET] button was pressed. Note: • If you have lost your Personal Code, please contact Clarion customer service. 1. Enter your Personal Code currently set. 2. When the correct Personal Code is entered, the unit will restart from the initial startup screen.

  • Page 27: Aux Function

    ∗ The factory default setting is “MID”. 1. Press and hold the [DISP] button (1 sec.). 2. Select “AUX SENS”. 3. Turn the [ROTARY] knob to select “HIGH”, “MID” or “LOW”. Note: • When AUX mode is selected, AUX IN sensitivity can be set. CX501...

  • Page 28: Accessories

    • This unit does not support connections to a computer. In addition, connections made through a USB hub device are also not supported. CX501 • When a USB memory device is composed of two or more drives, only one of the drives will be detected.
  • Page 29 USB mode is selected, since it may result in loss or damage to data on the USB memory device. Always backup and save important data on your computer. 2. Remove the USB memory device from the USB cable. CX501...

  • Page 30: Ipod /Iphone Operations

    • Some iPod models do not support this function. Consult your nearest Clarion dealer or website to confirm which models do not support this function. Other various play functions...
  • Page 31 [ROTARY] knob to select the desired subfolder. ∗ When the track name display is showing, pressing the [x] button will return to the currently playing folder name display. 7. Turn the [ROTARY] knob to select a track within a category. CX501...
  • Page 32 [ROTARY] knob. Playback will begin from the first track in the selected category, and the iPod menu mode will be canceled. CX501 ∗ Turn the [ROTARY] knob to select a track within a category. iPod menu list back...

  • Page 33: Troubleshooting

    1. Turn down sound volume. Function can also be restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit operates). 2. If the sound is muted again, consult our service department. Measure Reset button CX501...
  • Page 34 Can’t insert the The device has been inserted device. improperly. The connector is broken. CX501 Cause Write MP3/WMA files onto the disc properly. Use MP3/WMA files encoded properly. Use ISO9660 level 1, 2 or JOLIET or Romeo or APPLE ISO file system.

  • Page 35: Error Displays

    Replace with a non-scratched, non-warped-disc. Eject the disc then reload it properly. Disconnect and reconnect the iPod. Disconnect the devices and reconnect. If the devices are still not recognized, try replacing with a different devices. Do not use the HUB devices. Measure CX501...

  • Page 36: Specifications

    AVRCP (Audio/Video Remote Control Profile) Send/Receive Sensitivity: Class 2 Note: • Specifications and design are subject to change without notice for further improvement. CX501 Audio Maximum Power Output: 200 W (50 W ✕ 4 ch) Bass Control Action (100 Hz): +14 dB, –14 dB Treble Control Action (10 kHz): +14 dB, –14 dB...
  • Page 37 Clarion Co., Ltd. All Rights Reserved. Copyright © 2010: Clarion Co., Ltd. PE-3402B Printed in China / Imprimé en Chine / Impreso en China 2010/11 280-8971-00...
