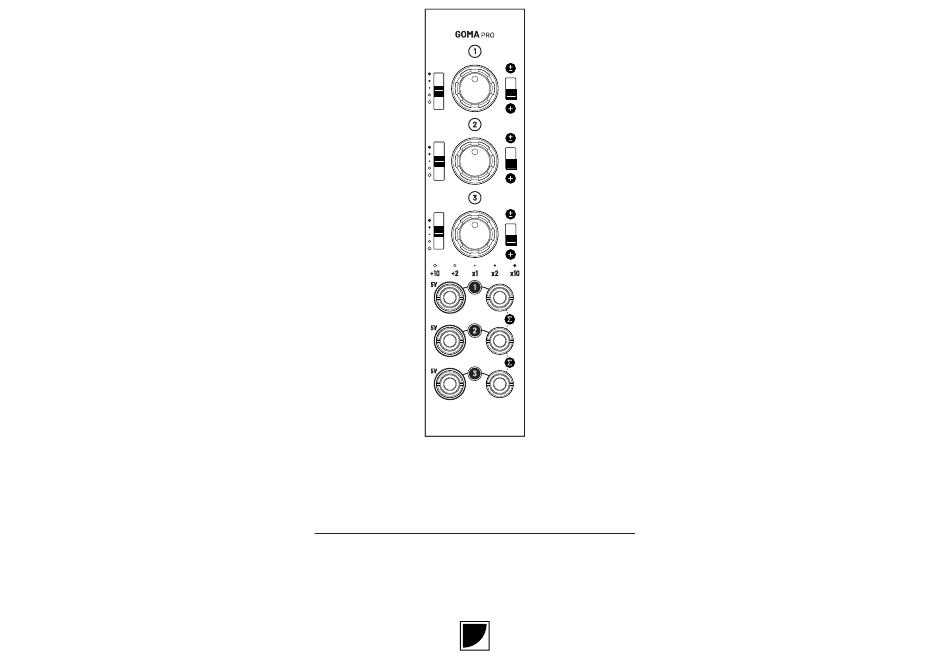

- Page 1 GOMA Pro Build Instructions V1.0...
-
Page 2: Warranty
B4 PinHeader 1x2 01pcs B5 Exp Cable 01pcs B6 Power Cable 01pcs WARRANTY BLACK NOISE warrants the contents of this kit to be free of defects in materials or workmanship and to be conform with the specifications at the time of shipment for a period of two years from the date of purchase. - Page 3 CONNECTOR Power connector Place the 10-pin power connector on the back of the PCB as shown in image A. Flip the PCB over and solder the 10-pin power connector, making sure it is properly aligned and flush with the PCB as shown in image B.
- Page 4 LEDs & Spacers Place each LED spacer onto one of the bicolor LEDs as shown in image A. Slide the LED spacers along the LED leads and make sure they are firmly against the head of the LEDs. Place each LED with the spacers onto the PCB, make sure that the shorter lead of the LED aligns with the square hole on the LED footprint as shown in image C.
- Page 5 Components Place the 3 potentiometers as shown in image A. Place the 6 jack connectors as shown in image B. Place the 3 five-position switches as shown in image C. Place the 3 two-position switches as shown in image D.
- Page 6 Faceplate Make sure all the components have been placed on the PCB as shown in image A. Once all the components are in place, install the faceplate as shown in image B. Screw on the nuts for the 3 potentiometers as shown in image C. Screw on the nuts for the 6 jack connectors as shown in image D.
- Page 7 Solder Solder all the components placed on the PCB as shown in image A. For each component, make sure it is flush with the PCB before soldering. Once all the components are soldered, check for any cold solder joints or bridged pins. After all the components are soldered, cut the LED leads as shown in image B.
- Page 8 Knobs Place the knob without the cap on the potentiometer as shown in images A and B. Turn the potentiometers all the way counterclockwise and place the caps on the knobs as shown in image C. Repeat these steps for each of the knobs.
- Page 9 Testing You can now test the continuity of your module. Use a multimeter set to continuity and connect one of the probes to one of the pins in the center of the power connector. With the other probe touch the +12V pins then -12V pins at each end of the connector.
