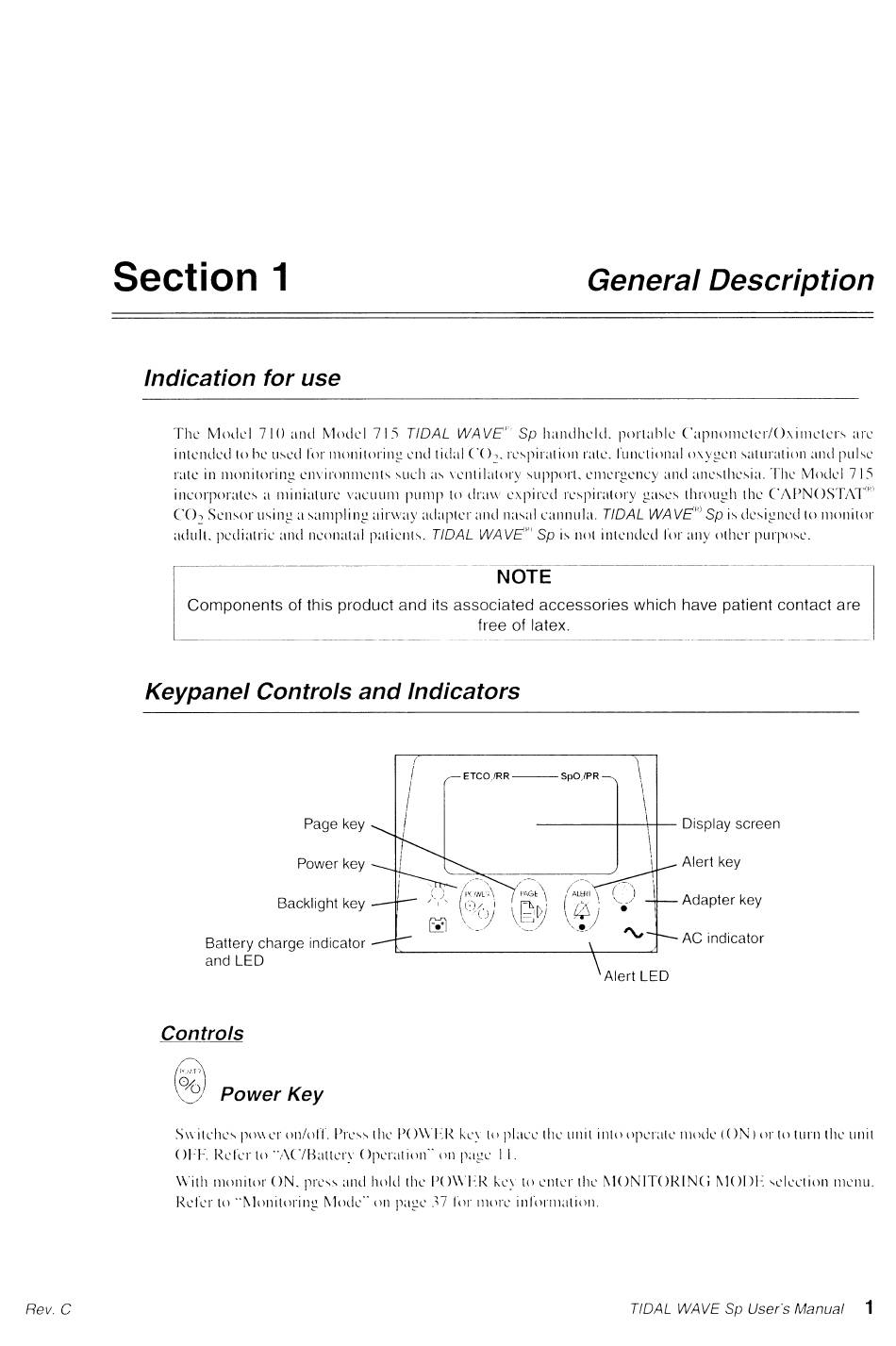

Section 1 General Description
Indication for use
The Model 710 and Model 715 TIDAL WAVE" Sp handheld. portable Capnometer/Oximeters are
intended to be used for monitoring end tidal CO >, respiration rate. functional oxygen saturation and pulse
rate In Monitoring environments such as ventilatory support, emergency and anesthesia. The Model 715
incorporates a miniature vacuum pump to draw expired respiratory gases through the CAPNOSTAT™
CO, Sensor using a sampling airway adapter and nasal cannula. TIDAL WAVE" Sp is designed to monitor
adult, pediatric and neonatal patients. TIDAL WAVE" Sp is not intended for any other purpose.
NOTE
Components of this product and its associated accessories which have patient contact are
free of latex.
Keypanel Controls and Indicators
(
| ETCO/RR \ ~~ |
| Display screen
| Alert key
Page key =
Power key — |
Backlight key AS u |
> Po By \& 、
A
9%) Power Key
Switches power on/off. Press the POWER key to place the untt into operate mode (ON) or to turn the unit
OFF. Refer to "AC/Battery Operation" on page 11.
With monitor ON, press and hold the POWER key to enter the MONITORING MODE selection menu.
Refer to "Monitoring Mode" on page 37 for more information.
Rev. C TIDAL WAVE Sp User's Manual 1
