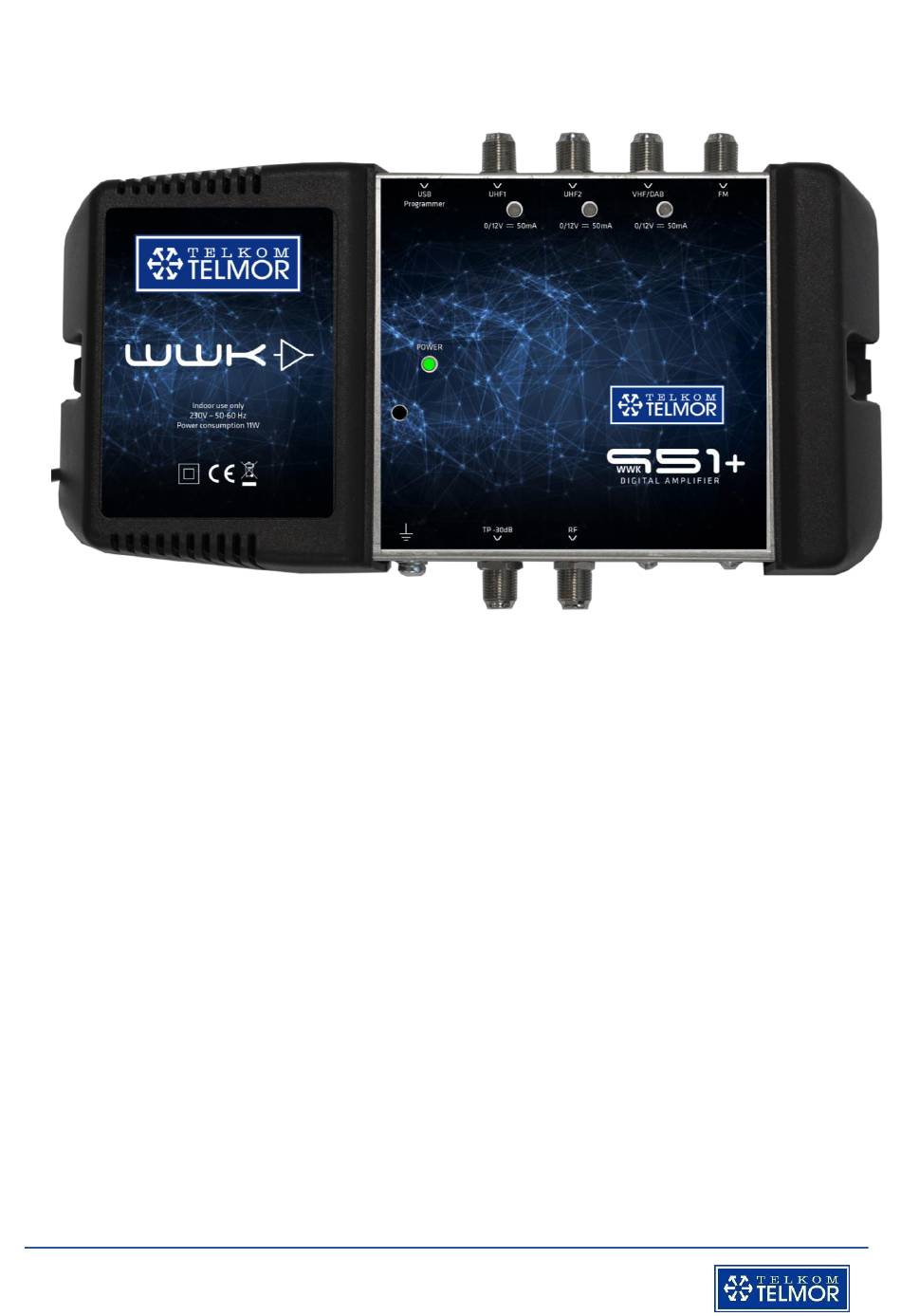

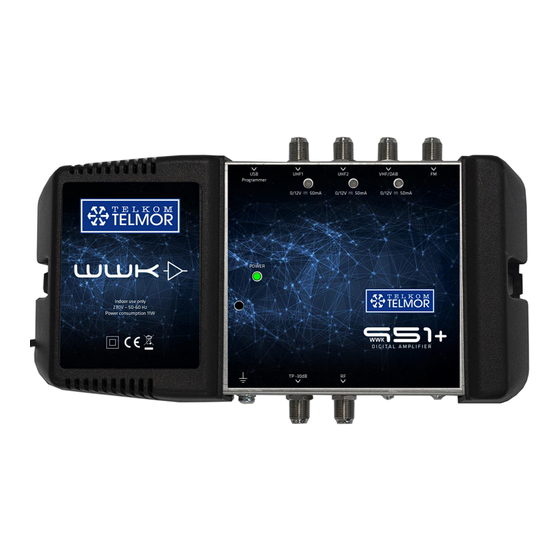

- Page 1 Digital multiband amplifier WWK 951+ Operating Manual GZT TELKOM-TELMOR SP. Z O.O., ul. Schuberta 104, 80-172 Gdańsk tel.: (58) 739 59 59, e-mail: handlowy@telmor.pl, www.telmor.pl...
- Page 2 1. Purpose and characteristics of the amplifier WWK 951+ is a digital multi-band amplifier. It is intended for use in antenna systems for the reception of digital terrestrial television programmes (DVB-T/T2), in single-family houses, residences, boarding houses, hotels, resorts, schools, hospitals, etc. It is perfectly applicable in places with difficult reception conditions, where the received signals (VHF, UHF) have different levels and come from different directions.
- Page 3 - antenna for IV/V band signals (470...694,790 or 862MHz) to the UHF1 or UHF2 input, IMPORTANT!!! Unused inputs should be terminated with a 75 Ω terminating resistor. The VHF/UHF1/UHF2 inputs can be connected to antennas equipped with TV preamplifiers. The preamplifier can be supplied with 12V DC at a maximum of 80mA, The amplifier is capable of supplying a maximum of 200mA to all VHF/UHF paths.
- Page 4 1. Enter by pressing the right or left arrow until the display shows VHF or UHF1 or UHF2. Depending on which input you want to program channels from, select the appropriate menu and click ENTER. 2. The "Add Channel" message will appear. Press ENTER. 3.
-
Page 5: Dab Mode
9. DAB mode We have added special functionality for DAB-type antennas. It is designed to allow the entire DAB band to be carried to the output, without the need to programme a specific channel. In this way, newly appearing channels in the DAB/VHF band will be automatically amplified and the amplifier will not need to be reprogrammed. - Page 6 Point to short circuit 12. Amplifier menu tree GZT TELKOM-TELMOR SP. Z O.O., ul. Schuberta 104, 80-172 Gdańsk tel.: (58) 739 59 59, e-mail: handlowy@telmor.pl, www.telmor.pl...
- Page 7 13. WWK 951+ Technical Specifications Unit UHF1 Parameter UHF2 Operating frequency 87,5 - 108 174 - 230 470 - 694 Gain 12 - 70 (AGC) Gain / output level adj. Tilt (corrector) 0 - 9 Selectivity of channel filters >35 Separation between inputs >30 Mismatch attenuation on outputs...
