- Page 1 www.lumoscontrols.com MANDO Wireless Rotary Control Hub...
-
Page 2: Product Overview

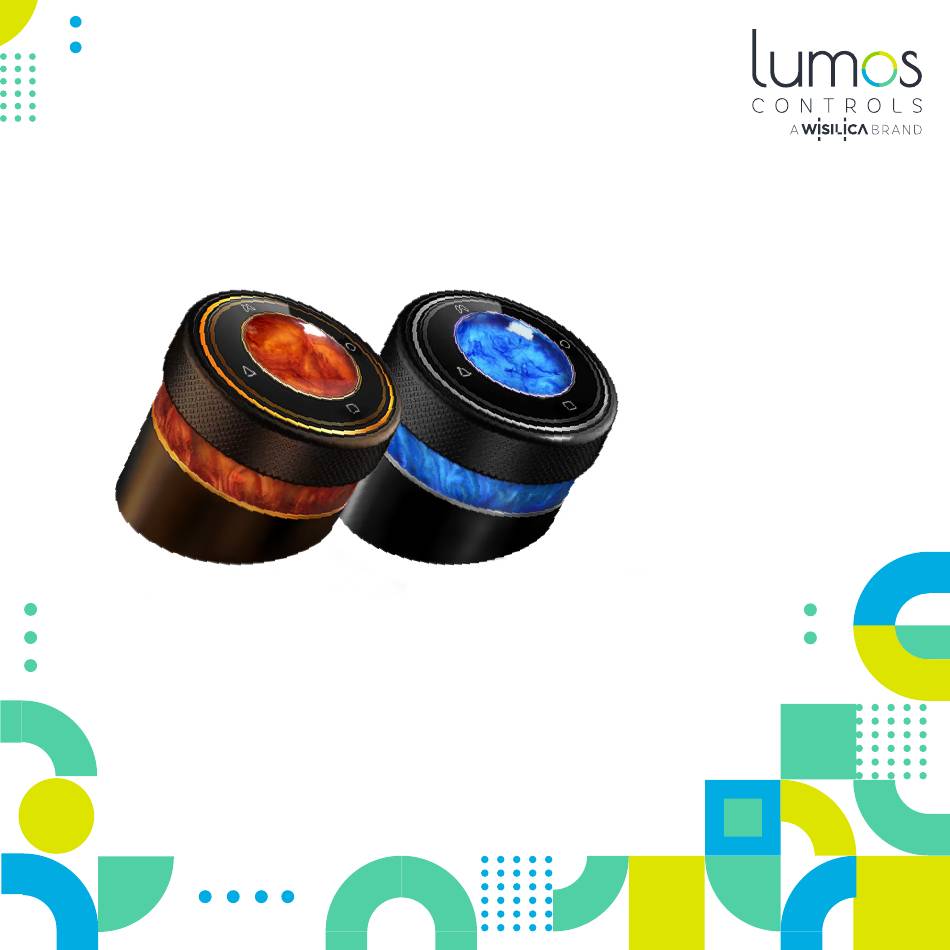

Product Overview Features blinX mode to control the devices without commissioning Mando, is a rechargeable lithium battery powered premium and configuration using app rotary remote, with 4 buttons and dual rotary dials. It has a Configure buttons and rotary dials by commissioning using built-in Bluetooth module that enables it to communicate and Lumos Controls application control other devices in the Lumos Controls mesh network. -
Page 3: Product Dimensions
Product Dimensions 70mm(2.75in) 77mm(3.03in) User Interface Details Mando comes with 4 buttons and 2 rotary dials as given below. Inner rotary dail Outer rotary dail... - Page 4 blinX Mode In blinX mode, no need to commission and configure the controllers and rotary control hubs using mobile application. Controllers need to be powered ON and linked to the rotary control hub, and default functions on the buttons can be used to control the lights as given below.
- Page 5 To exit rotary control hub from device Discovery mode Step 03 After linking all the intended controllers, long press button-3 for at least 5sec to exit the rotary control hub from device discovery mode Long press for at least 5secs to bring rotary control hub to device Discovery mode Double press to proceed the linking...
-
Page 6: Paired Mode
Single press Outer rotary dial Inner rotary dial Rotate clockwise Increase Intensity Decrease CCT Rotate anti-clockwise Single press Warm Single press Cool Outer rotary dial Inner rotary dial Rotate anti-clockwise Decrease Intensity Rotate clockwise Increase CCT Single press To Reset All the linked devices can be unlinked together (reset) from the rotary control hub by long pressing button for at least 5 secs... -
Page 7: Push Buttons
To configure the functions Once commissioned, the remote can be configured with the required functionalities from rotary control hub configuration within the Device settings Push Buttons Buttons 1-4 can be used to configure the following functions of required targets. Target Actions Favorite luminaire ON, OFF, Intensity (up &... - Page 8 Rotate the inner dial clockwise to activate the function Rotate the inner dial anti-clockwise to activate function To recharge the remote Rotary control hub can be recharged using the C type port given at the bottom part. Follow the below steps to recharge the rotary control hub.
- Page 9 Smart Ecosystem Control devicce Internet Connectivity Sensor Mesh Network Gateway Mando Wireless Rotary Control Hub The communication distance between devices in an open area is 10m(32.8ft) Application Mando...
-
Page 10: Ordering Information
WSBRMB4D2-OC Ocean blue The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WiSilica Inc. is under license. Other trademarks and trade names are those of their respective owners.
