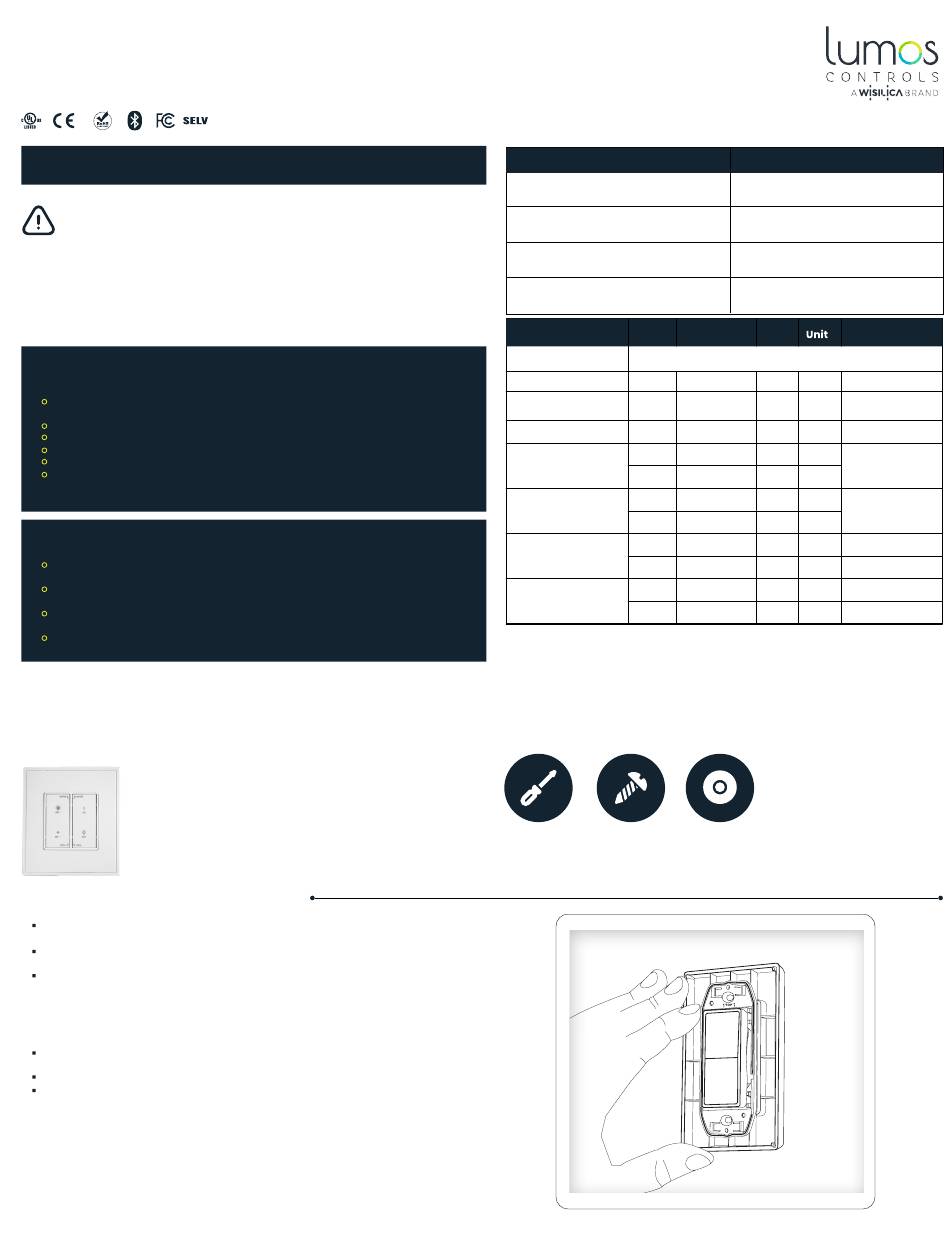

WiSilica Lumos Controls Catron IV Quick Start Sheet

Catron IV
Wireless Self-powered 4 Button Switch
INSTALLATION AND QUICK START SHEET
WARNING AND GUIDELINES!!!
Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT!
so that no parts should have been damaged during transit. Inspect to confirm.
Any part damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped
Product Overview
Catron IV is a wireless self-powered 4 button switch that configures ON/OFF,
intensity, and correlated color temperature of an individual or group of luminaires.
It is a part of Lumos Controls ecosystem, which includes controllers, sensors,
switches, modules, drivers, gateways, and analytical dashboards.
INSTALLATION INSTRUCTIONS
Ensure optimal communications with other system components
Pick a convenient location, perhaps near a door where occupants enter and exit
Consider the construction materials in the space and remove the obstacles that
may interfere with RF signals
Installation Steps
Decide where you want to mount the rocker pad. The standard height for wall
switches is 49" or 125 cm on center
Remove the wall plate from the rocker pad assembly
Decide which of the two installation options is appropriate
A. Surface Mounted Installation
I. Using a level and a pencil, lightly mark 2 small dots to align the top edge of
the mounting plate.
II. Mark the mounting screw drill points.
This product has been properly packed
Do's
Installation should be performed by
a qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit
breakers before wiring
Observe the correct polarity of
output terminal
Specifications Min
Power Supply Electrodynamic harvesting
-25
Operating Temperature
Storage Temperature -25
Relative Humidity 0
_
Dimensions of
Double Rocker
_
_
Dimensions of
Frame Insert
_
_
Dimensions of
Central Plate
_
_
Dimensions of
Frame
_
Required tools & supplies
Screwdriver
Screws
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't dissemble the products
_
Type Max Remarks
_ _
65 °C
_ _
65 °C
_
95 Non-condensing
%
_
25X50 mm
L x W For each
of the 2 rockers
_
in
0.98x1.96
_
55X55
mm
L x W
_
2.16x2.16
in
_
71x71
mm L x W
_
2.79x2.79
in L x W
_
81x81
mm L x W
_
3.19x3.19 in L x W
Wall plates
